RF Elements UD-TP-21 UltraDish TP 5GHz 21.2dBi - 2Pack

Product Code: UD-TP-21

Barcode: 8588006459685

405.90 incl. GST 405.90000000000003 AUD 405.90


    This combination does not exist.

    Add to Cart Buy Now

    Share this product:

    RF Elements UD-TP-21 UltraDish TP 5GHz 21.2dBi - 2Pack


    • Gain: 21.2 dBi

    • Frequency Range: 5180-6400 MHz

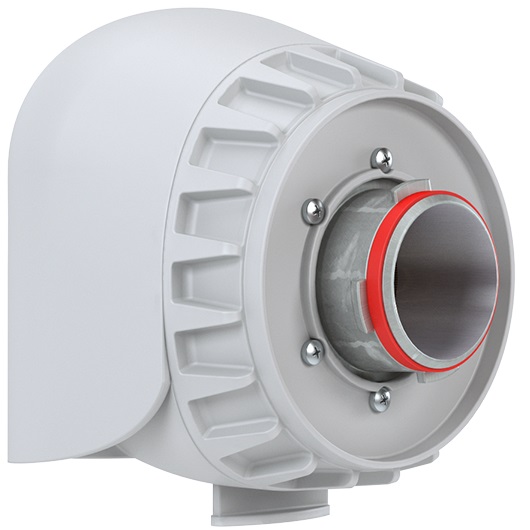

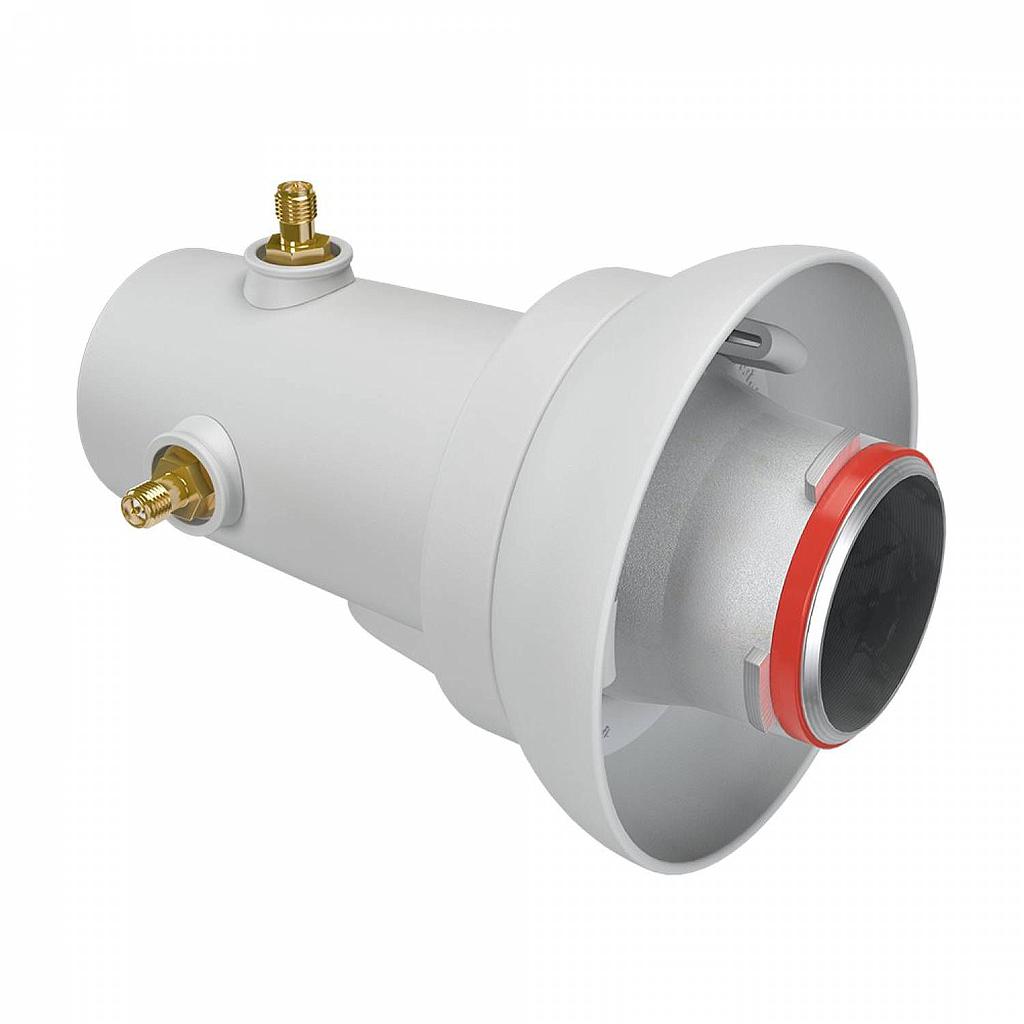

    • Antenna Connection: TwistPort - Quick Locking Waveguide Port

    • Environmental: IP65

    • Pole Mounting Diameter: 40-80mm (we recommend as close to 80mm as possible)

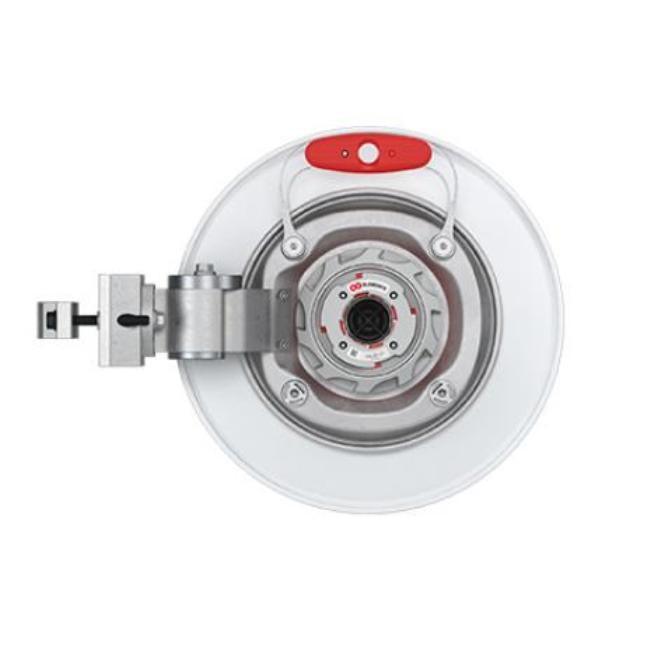

    RF Elements UltraDish™ TP 21 is designed for subscriber module applications. Minimized sidelobes, wide frequency bandwidth, and stable gain in both polarizations assure dependable performance. Antenna reflector is made of aluminium to ensure a low weight and uniform shape. Our proprietary TwistPort waveguide connector enables intuitive radio connection and replacement.

    Massive mount with improved grip and a wide range of applicable pole diameters makes the deployment easy and versatile. Stainless hardware comes with black coating to prevent from seizing at the installation.
