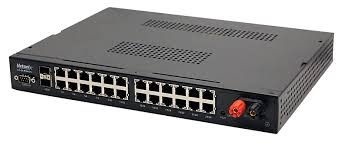

Netonix WS-26-400-IDC 26 Port 400W ISOLATED DC Power

Product Code: WS-26-400-IDC

Barcode: 858827005162

1,107.15 incl. GST 1107.15 AUD 1,107.15

1,006.50


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    Netonix WS-26-400-IDC 26 Port 400W ISOLATED DC Power


    Netonix® WISP Switch™ model WS-26-400-IDC has a 400 Watt ISOLATED DC power supply accepts 32V to 72V DC variable input while providing uninterrupted 24V and 48V POE.

    The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.


    Configureable voltage / current


      24V PoE Ports
    Pins 4,5 (+)
    Pins 7,8 (-)
    .75A

      48V PoE Ports
    Pins 4,5 (+)
    Pins 7,8 (-)
    .75A

      24VH PoE Ports
    Pins 1,2,4,5 (+)
    Pins 3,6,7,8 (-)
    1.5A

      48VH PoE Ports
    Pins 1,2,4,5 (+)
    Pins 3,6,7,8 (-)
    1.5A

    Ports 01-24Ports 01-24Ports 01-02Ports 01-06




    • Manufactured and Assembled in North America
    • Standard Desktop / Wall mount
    • Optional 19” rack mount kit / Din Rail kit
    • Dimensions 343 mm x 248 mm x 44 mm
    • Operating temperature -25 to 55°C
    • Serial console port
    • Passive PoE current sensors on each port


    Monitors the DC power supply temperature with auto and programmable thermal shutdown.


    Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind.


    If power gets too low it can be configured to shut down all POE ports and hibernate your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated.


    Since we designed the power supply to have its own micro processor and to communicate to the switch itself we have full control over the power supply and all relative telemetry generated by sensors built into the power supply.
