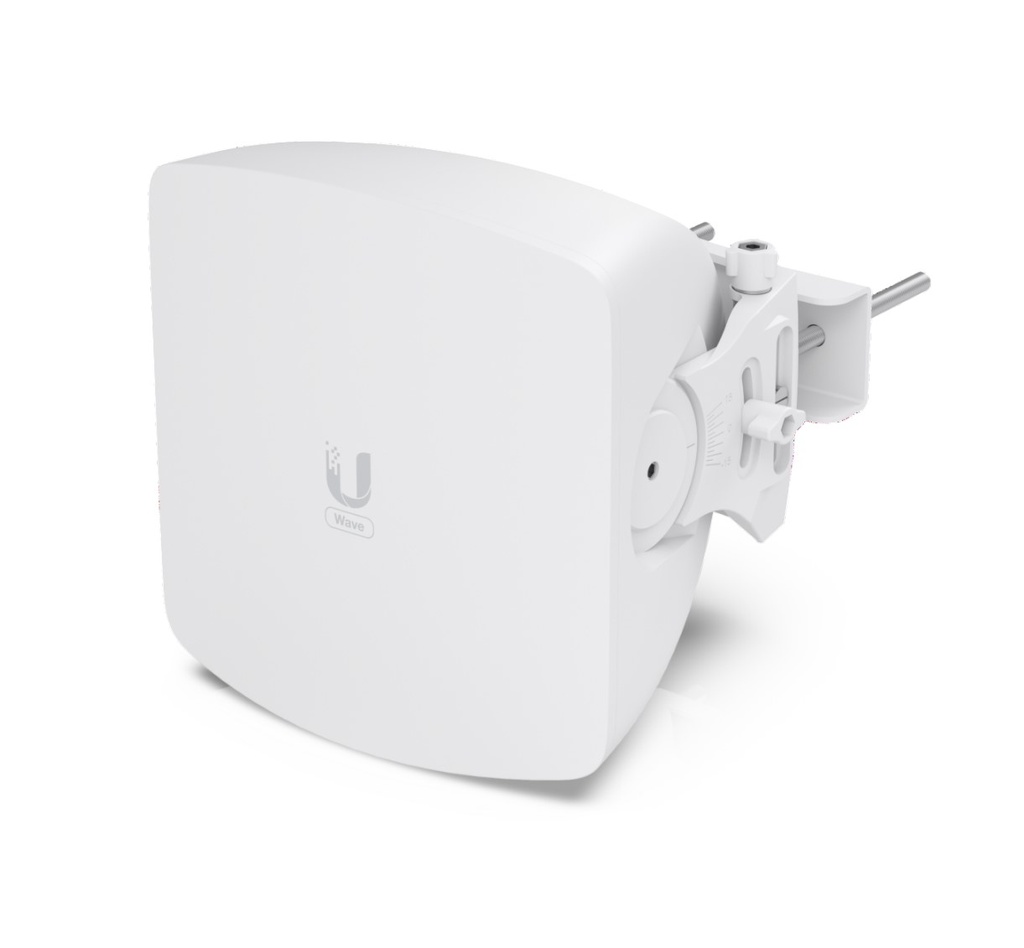

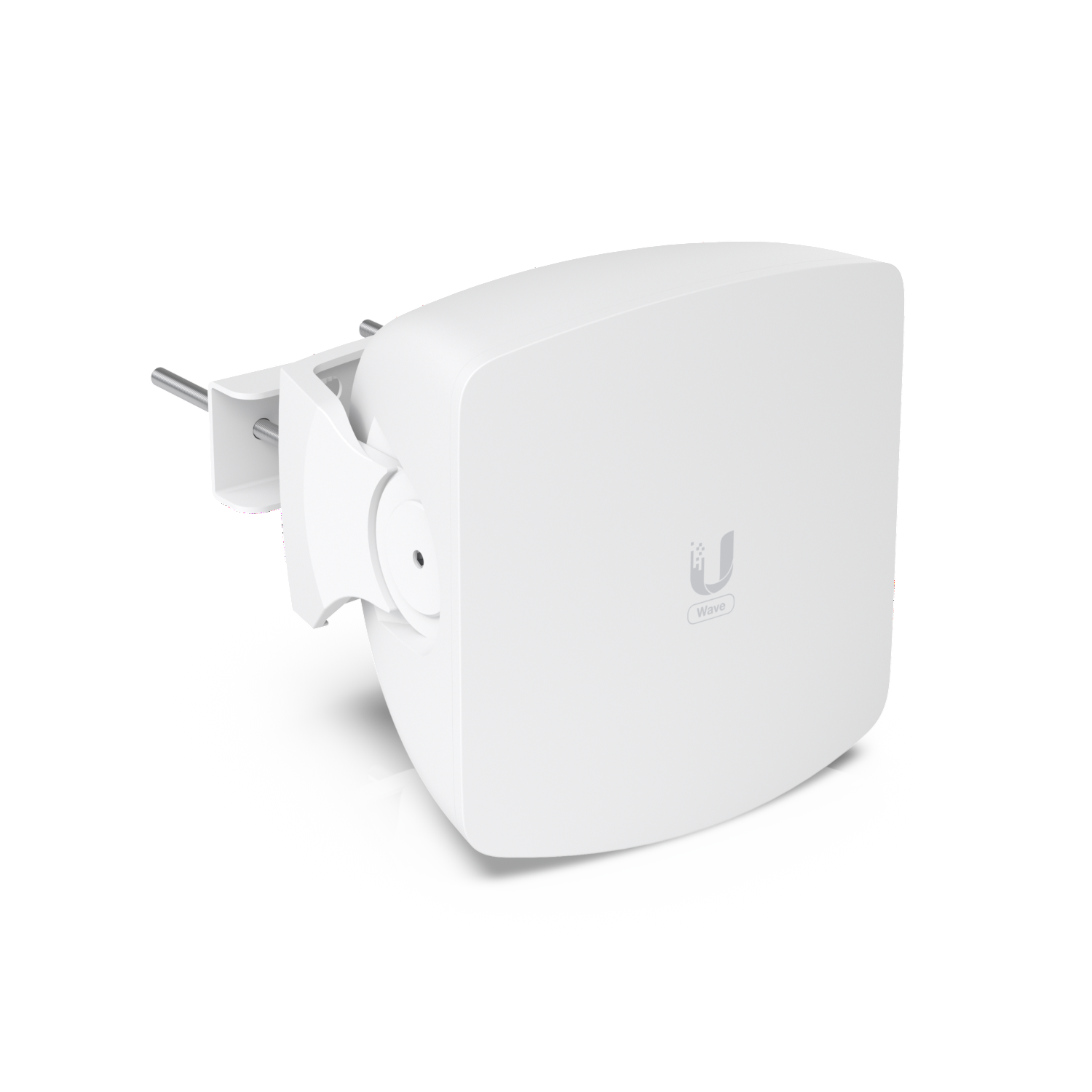

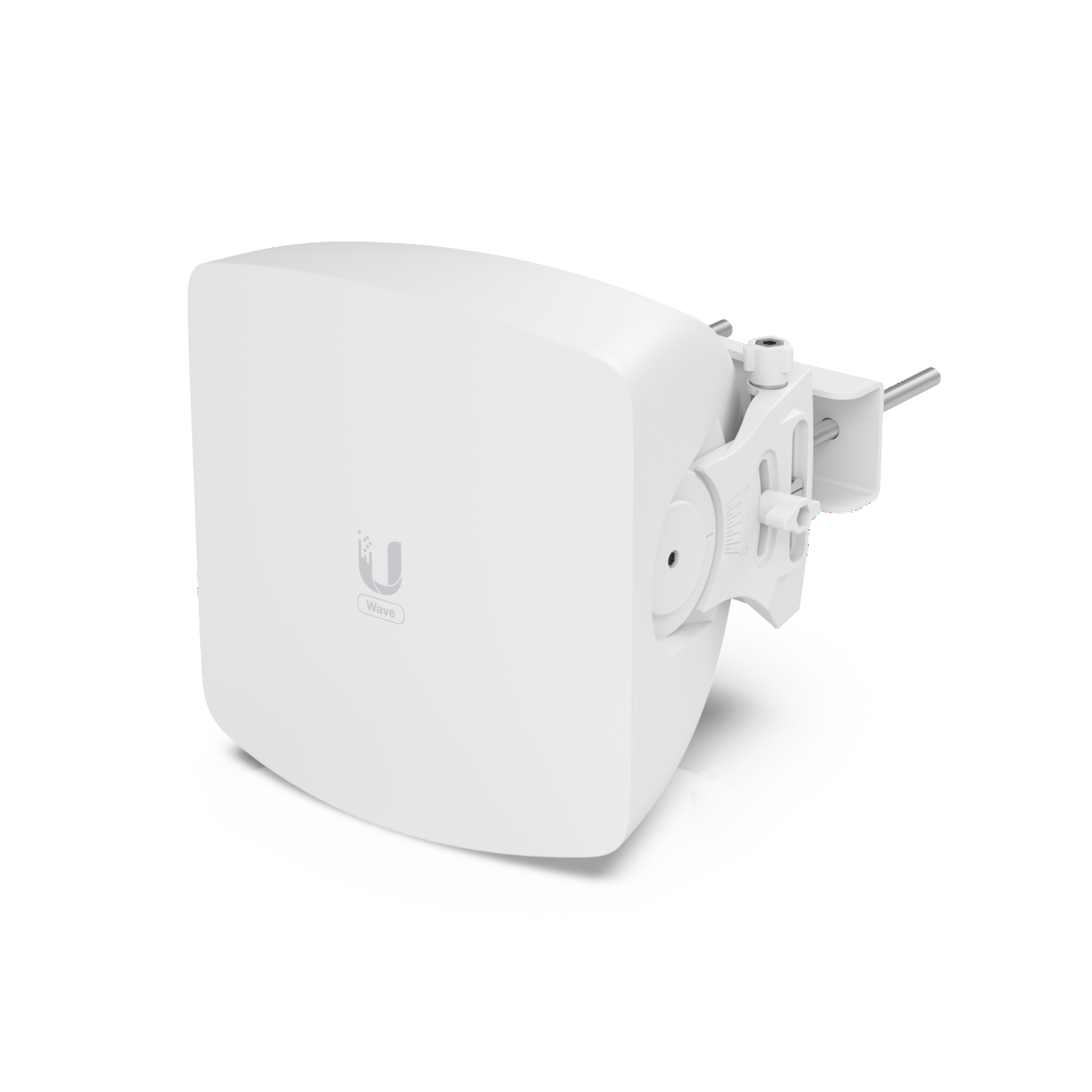

Ubiquiti Wave-AP UISP Wave Access Point 60GHz and 5GHz AP PtMP Access Point Powered by Wave Technology


Product Code: Wave-AP

980.65 incl. GST 980.65 AUD 980.65


    This combination does not exist.

    Add to Cart Buy Now


    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

    Ubiquiti Wave-AP UISP Wave Access Point 60GHz AP PtMP Access Point Powered by Wave Technology

    Ubiquiti Wave-AP 60 GHz PtMP access point powered by Wave Technology.

    The Ubiquiti Wave-AP Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.

    Wave-AP Features:

    • 5 GHz backup radio

    • Supported stations and distances:

    • Wave Long-Range: up to 8 km

    • Wave Nano: up to 5 km

    • WAN Ports: (1) 10G SFP+, (1) 2.5GbE

    • Integrated GPS antenna


    • Dimensions 212 x 205 x 187 mm

    • Weight 2.3 kg

    • Enclosure materials Aluminum alloy, UV stabilized polycarbonate

    • Pole mount diameter 25 to 76 mm  on pipe outer diameter

    • Wind loading 98 N at 200 km/h

    • Weatherproofing IPX6


    • Processor Quad ARM® Cortex-A53 cores at 1.4GHz

    • Memory DDR3L 512MB

    • Networking interface (1) 2.5GbE RJ45 port(100/1000/2500)*

    • (1) 10G SFP+ port(1/10)

    • *ActiveonlywhenSFP+portis down.

    • Max. power consumption 24W

    • Power method 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)

    • 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

    • Power supply 48V DC, 0.65A 2.5GbE PoE adapter (included)

    • Button Factory reset

    • LEDs Power, Ethernet, GPS

    • Operating temperature -40 to 60° C

    • Operating humidity 5 to 95% noncondensing
