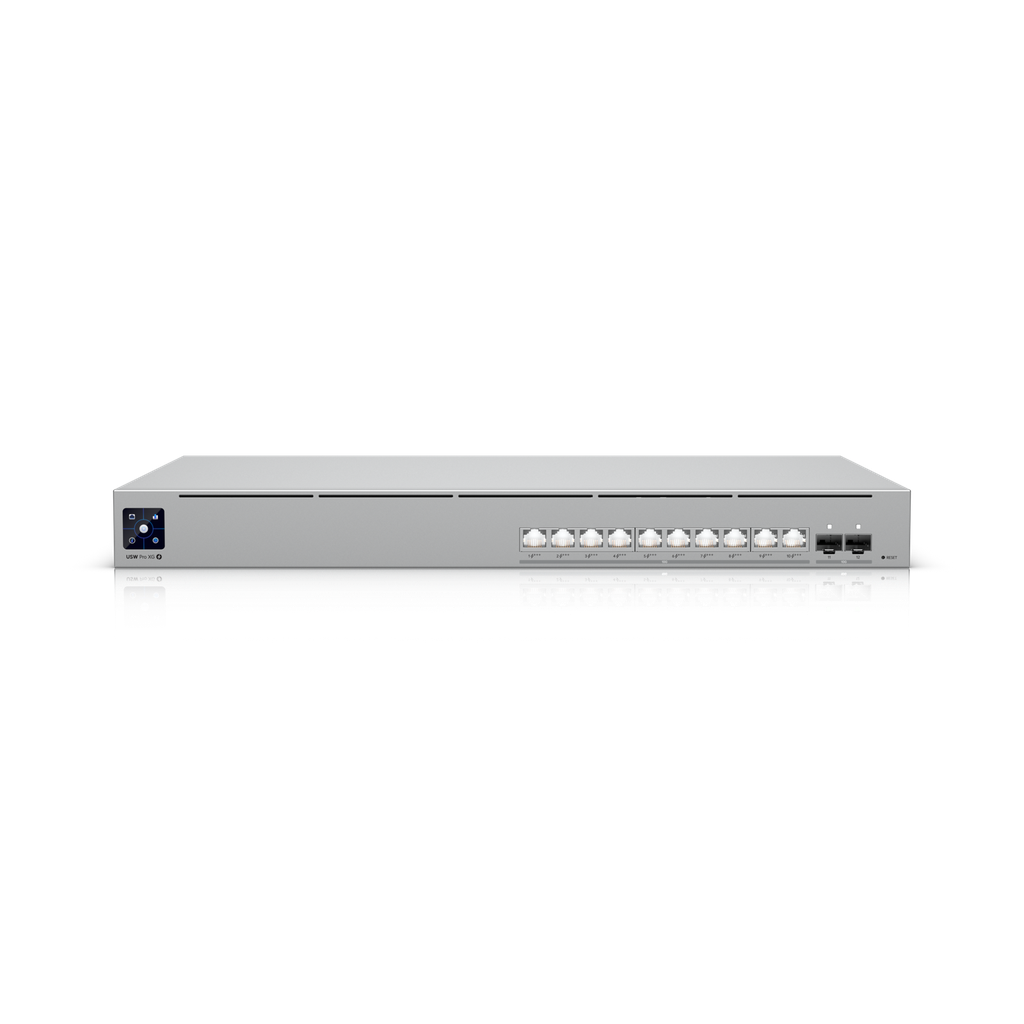

Ubiquiti USW-Pro-XG-10-PoE UniFi professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE (2) 10G SFP+ ports.
Switch Pro XG 10 PoE for UniFi networks, featuring 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports, 400W PoE availability, and 240 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

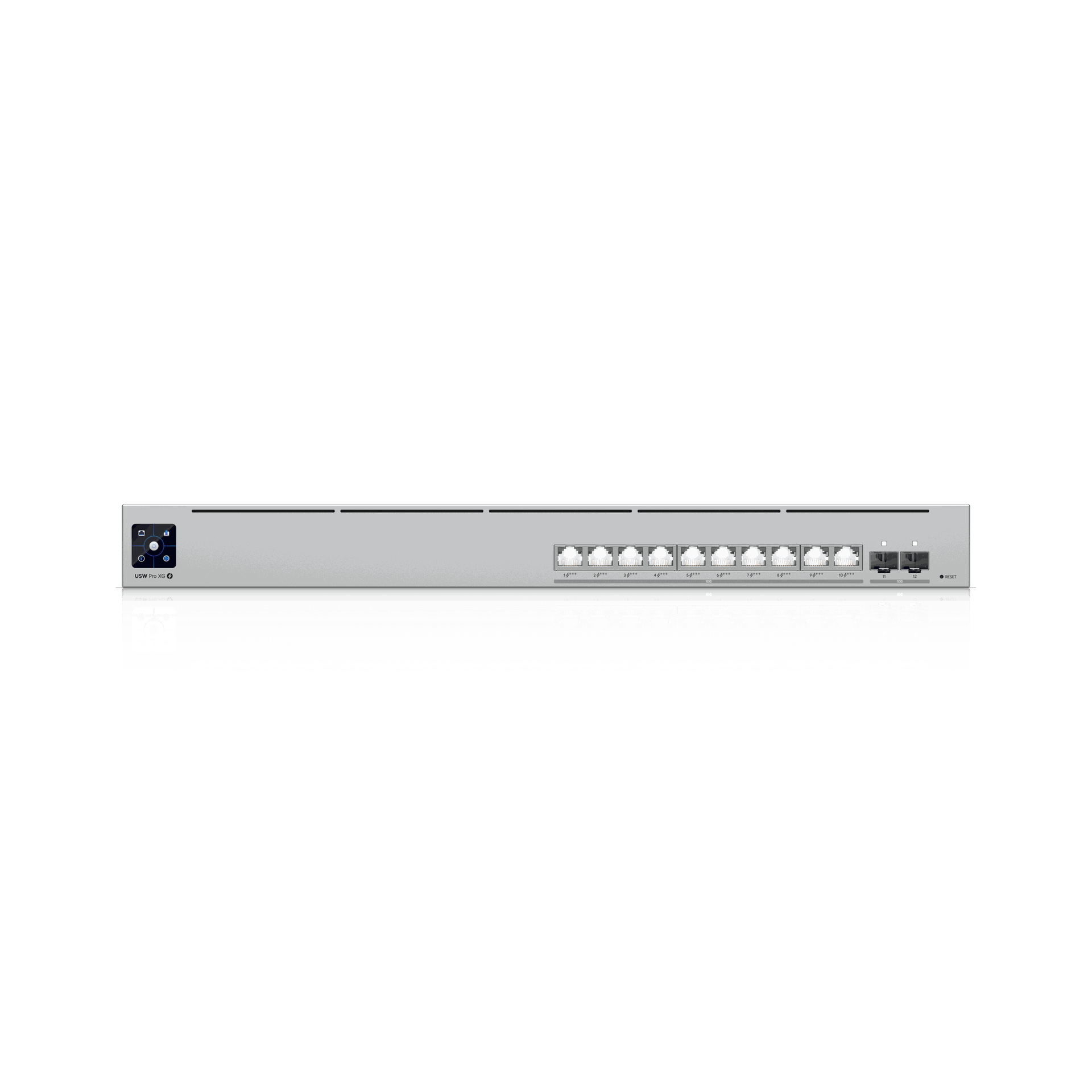

Ubiquiti USW-Pro-XG-10-PoE UniFi Switch Pro XG 10 PoE
USW-Pro-XG-10-PoE is a UniFi PoE switch for managed business networks, with 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports, 240 Gbps switching capacity, and 400W PoE availability.
Key Features
- 1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
- High-density switching with 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 240 Gbps switching capacity.
- Integrated PoE support with 400W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 442.4 x 285 x 44 mm
- Weight: Without mounting brackets: 4.6 kg; With mounting brackets: 4.7 kg
- Connectivity: 10 (All PoE+++) 10 GbE RJ45 ports, 2 10G SFP+ ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 65W (Excluding PoE output); 520W (Including PoE output)
- PoE budget: 400W
- Switching capacity: 240 Gbps
- Total non-blocking throughput: 120 Gbps
- Forwarding rate: 179 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 05660-25-08356
- Application requirements: Version 9.1.120 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 2 MB
- Redundancy: DC Power Backup (With UniFi RPS)
