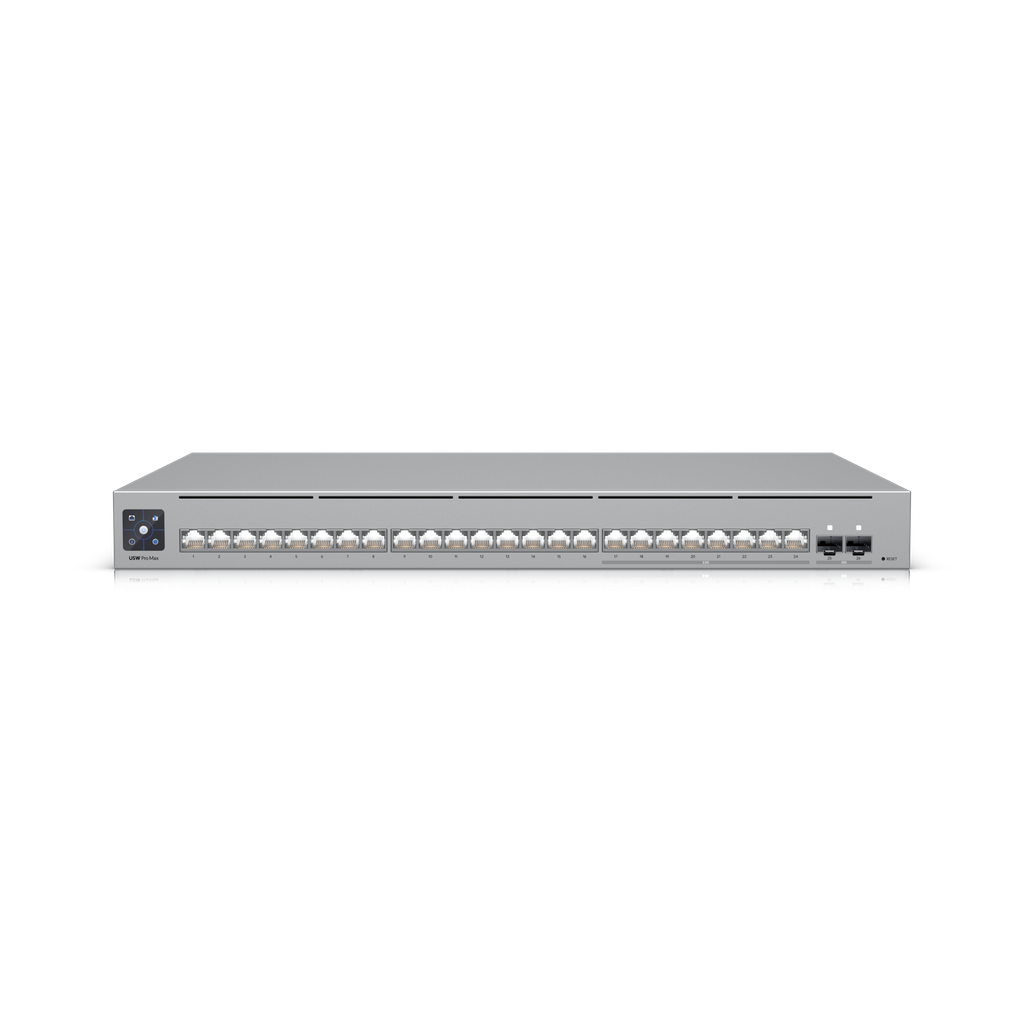

  3. Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE

Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE

https://citytechnology.com.au/web/image/product.template/21029/image_1920?unique=c895221

Product Code: USW-Pro-Max-24

$ 957.55 incl. GST 957.5500000000001 AUD $ 957.55

$ 829.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

    Ubiquiti USW-Pro-Max-24 Unifi 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE

    A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.


    Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

    (8) 2.5 GbE RJ45 ports

    (16) GbE RJ45 ports

    (2) 10G SFP+ ports

    DC power backup ready

    Managed with UniFi Network 8.0.24 and later

    Technical Specifications
    Mechanical
    Dimensions442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
    WeightWithout mounting brackets: 4.2 kg (9.3 lb)
    With mounting brackets: 4.3 kg (9.5 lb)
    Enclosure materialSGCC steel
    Hardware
    Management interfaceEthernet In-Band
    Networking interface(16) GbE RJ45 ports
    (8) 1/2.5 GbE RJ45 ports
    (2) 10G SFP+ ports
    Total non-blocking throughput56 Gbps
    Switching capacity112 Gbps
    Power methodUniversal input, 100—240V AC, 50/60 Hz
    USP RPS DC input
    Power supplyAC/DC, internal, 50W
    Supported voltage range100—240V AC
    Max. power consumption50W
    LCM display(1) 1.3" touchscreen
    ButtonFactory reset
    Operating temperature-5 to 40° C (23 to 104° F)
    Operating humidity10 to 90% noncondensing
    CertificationsCE, FCC, IC
    Etherlighting™
    EthernetLocating
    Speed/link
    Native VLAN/network
    SFP+Locating
    Speed/link
    Native VLAN/network
    LEDs
    SystemStatus
    RPSStatus
