Ubiquiti UniFi Pro Aggregation Switch 4 x 25G SFP28 Ports & 28 x 10G SFP+ Ports
Switch Hi-Capacity Aggregation for UniFi networks, featuring 28 10G SFP+ ports, 4 25G SFP28 ports, and 760 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

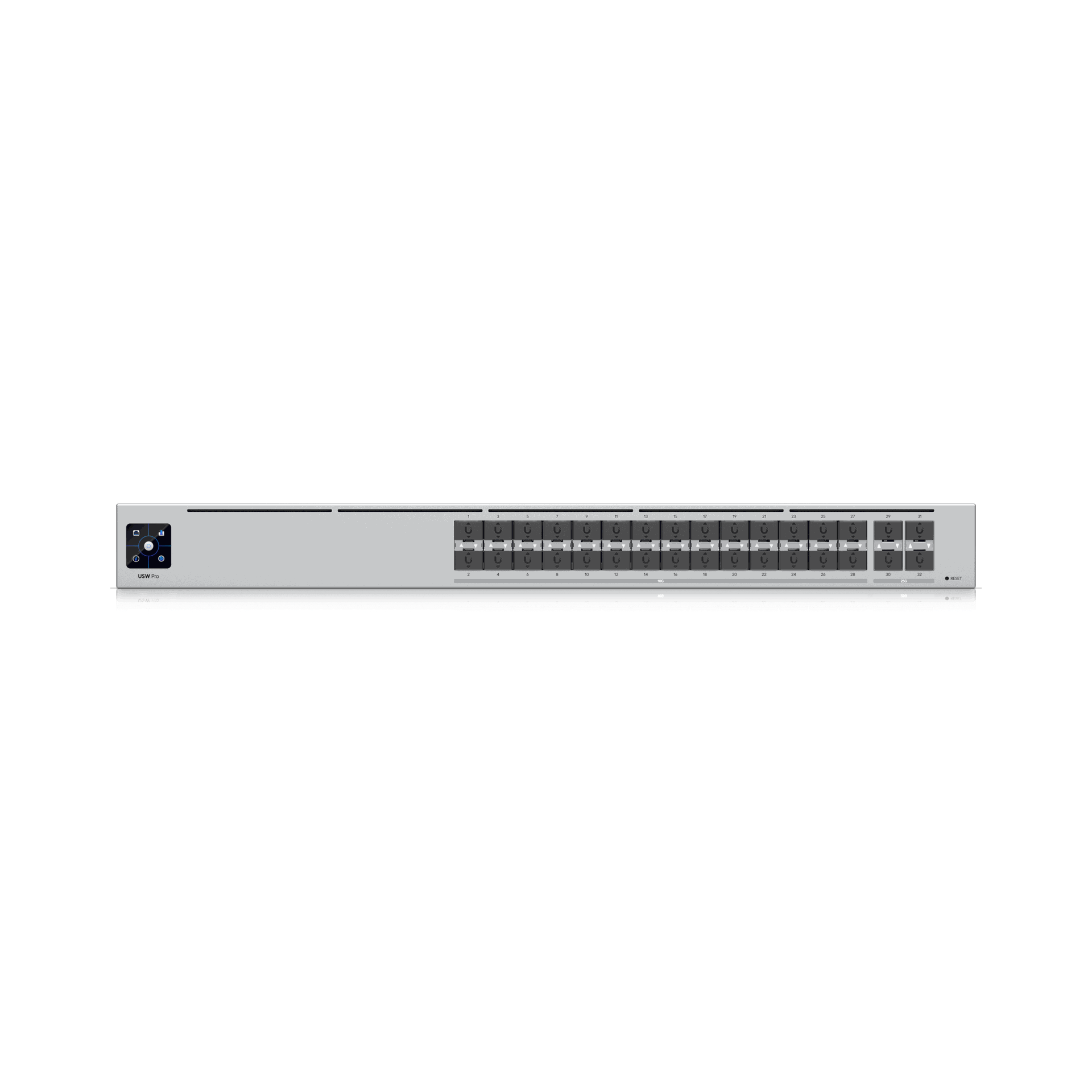

Ubiquiti USW-Pro-Aggregation UniFi Switch Hi-Capacity Aggregation
USW-Pro-Aggregation is a UniFi Layer 3 aggregation switch for managed business networks, with 28 10G SFP+ ports, 4 25G SFP28 ports, 760 Gbps switching capacity.
Key Features
- A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
- High-density switching with 28 10G SFP+ ports, 4 25G SFP28 ports.
- Performance designed for demanding UniFi networks, including 760 Gbps switching capacity.
- Layer 3 switching features for scalable UniFi network designs.
- Rack mount (1U) form factor for clean installation in network cabinets or branches.
Technical Specifications
- Dimensions: 442 x 325 x 44 mm
- Weight: Without mounting brackets: 4.6 kg; With mounting brackets: 4.7 kg
- Connectivity: 28 10G SFP+ ports, 4 25G SFP28 ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 100W
- Switching capacity: 760 Gbps
- Total non-blocking throughput: 380 Gbps
- Forwarding rate: 565 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 20756-22-08356
- Application requirements: Version 6.1.25 and later
- Supported VLANs: 1,000
- MAC Address Table Size: 32,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 4 MB
- Redundancy: DC Power Backup (With UniFi RPS)
