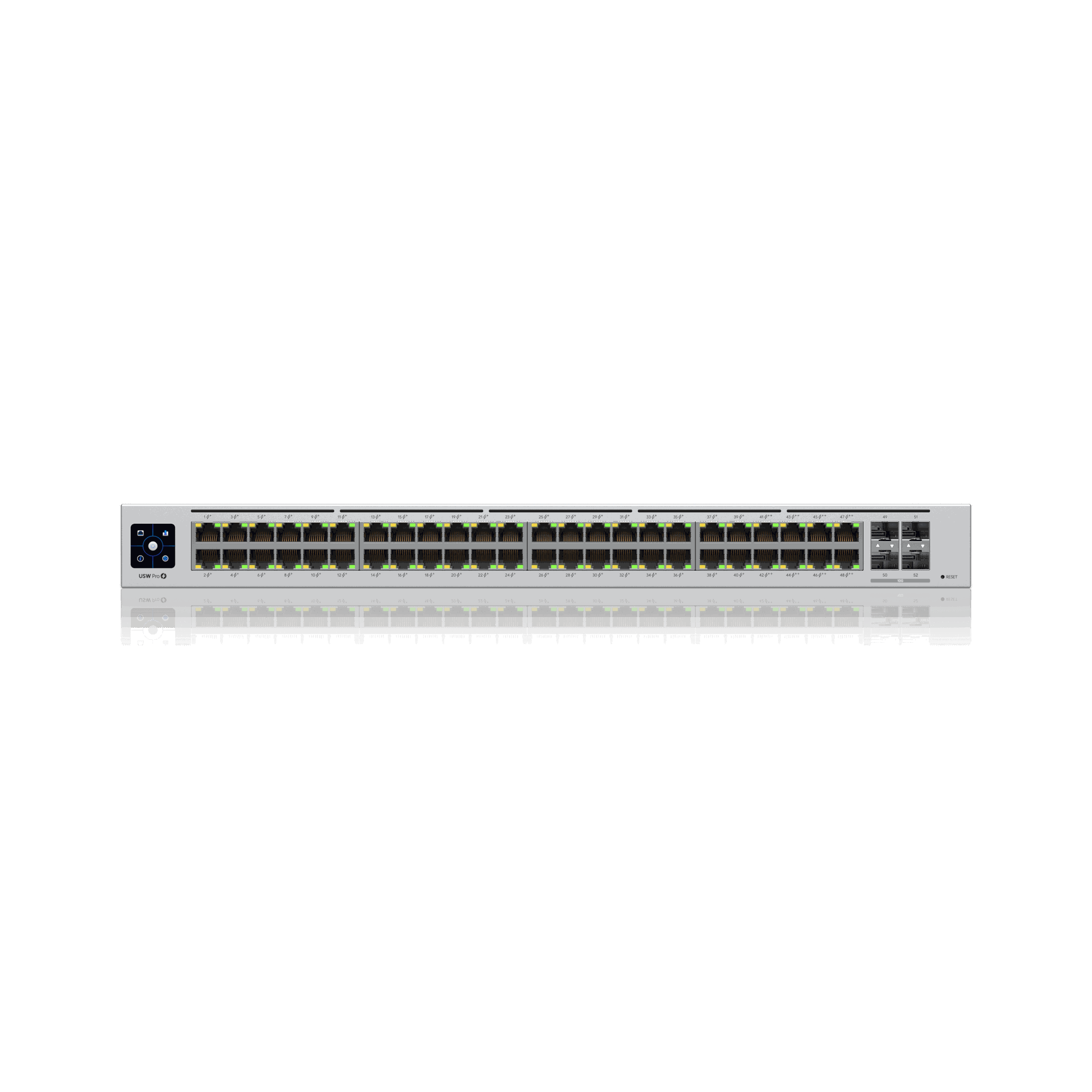

Ubiquiti USW-Pro-48-POE Gen2 UniFi 48 Port Gigabit Switch with 802.3bt PoE, Layer3 Features and SFP+
Switch Pro 48 PoE for UniFi networks, featuring 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports, 600W PoE availability, and 176 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USW-Pro-48-POE UniFi Switch Pro 48 PoE
USW-Pro-48-POE is a UniFi PoE switch for managed business networks, with 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports, 176 Gbps switching capacity, and 600W PoE availability.
Key Features
- A 48-port, Layer 3 switch capable of high-power PoE++ output.
- High-density switching with 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports.
- Performance designed for demanding UniFi networks, including 176 Gbps switching capacity.
- Integrated PoE support with 600W total PoE availability.
- Layer 3 switching features for scalable UniFi network designs.
Technical Specifications
- Dimensions: 442 x 400 x 44 mm
- Weight: Without mounting brackets: 6.2 kg; With mounting brackets: 6.3 kg
- Connectivity: 48 (40 PoE+; 8 PoE++) GbE RJ45 ports, 4 10G SFP+ ports
- Power method: (1) Universal input, 100–240V AC, 50/60 Hz; (1) USP RPS DC input
- Max. power consumption: 60W (Excluding PoE Output); 660W (Including PoE Output)
- PoE budget: 600W
- Switching capacity: 176 Gbps
- Total non-blocking throughput: 88 Gbps
- Forwarding rate: 131 Mpps
- Layer 3: Yes
- Form factor / mounting: Rack mount (1U)
- Operating temperature: -5 to 40° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel: 13790-20-08356
- Application requirements: Version 5.10.5 and later<
- Supported VLANs: 1,000
- MAC Address Table Size: 16,000
- IPv4 Static Routes: 256
- Packet Buffer Size: 4 MB
- Redundancy: DC Power Backup (With UniFi RPS)
