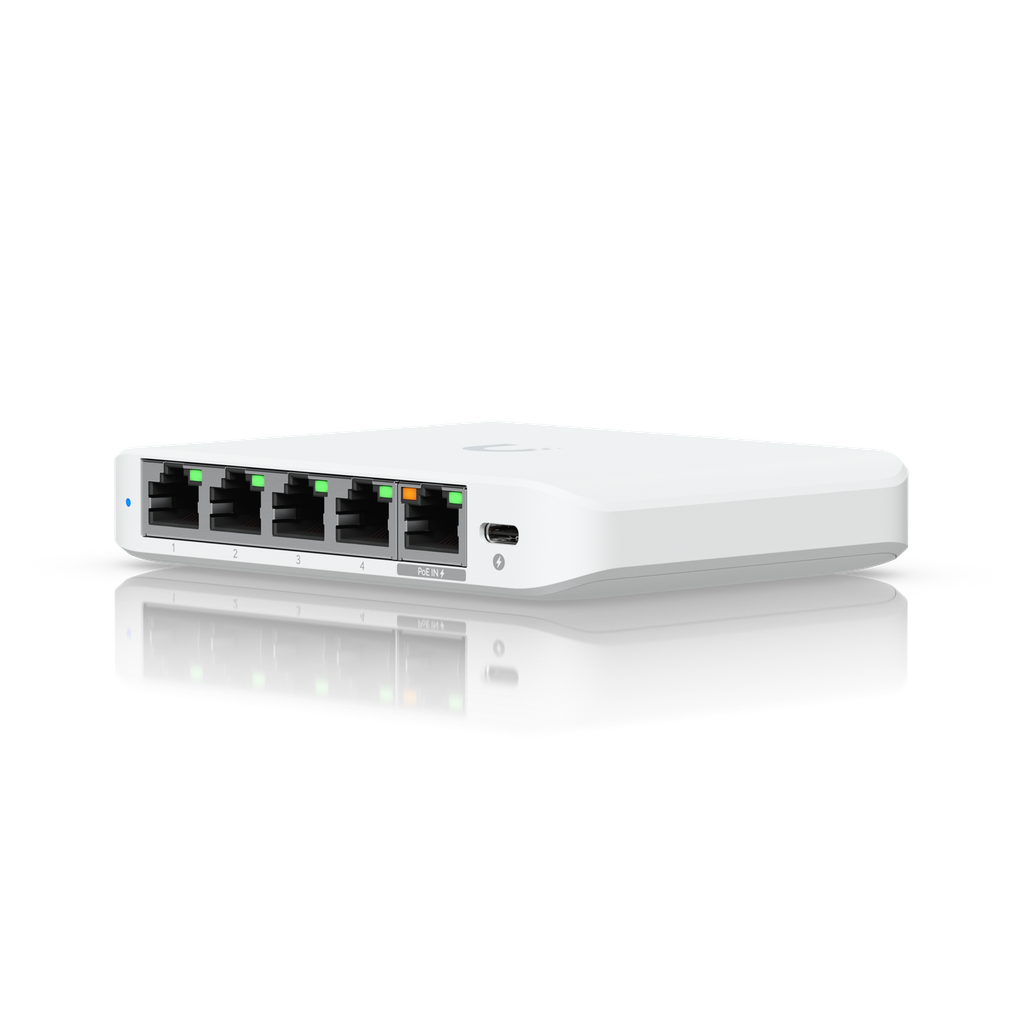

Ubiquiti USW-Flex-2.5G-5 UniFi Compact 5Port Gigabit Desktop Switch
Switch Flex Mini 2.5G for UniFi networks, featuring 5 2.5 GbE RJ45 ports, and 25 Gbps switching capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

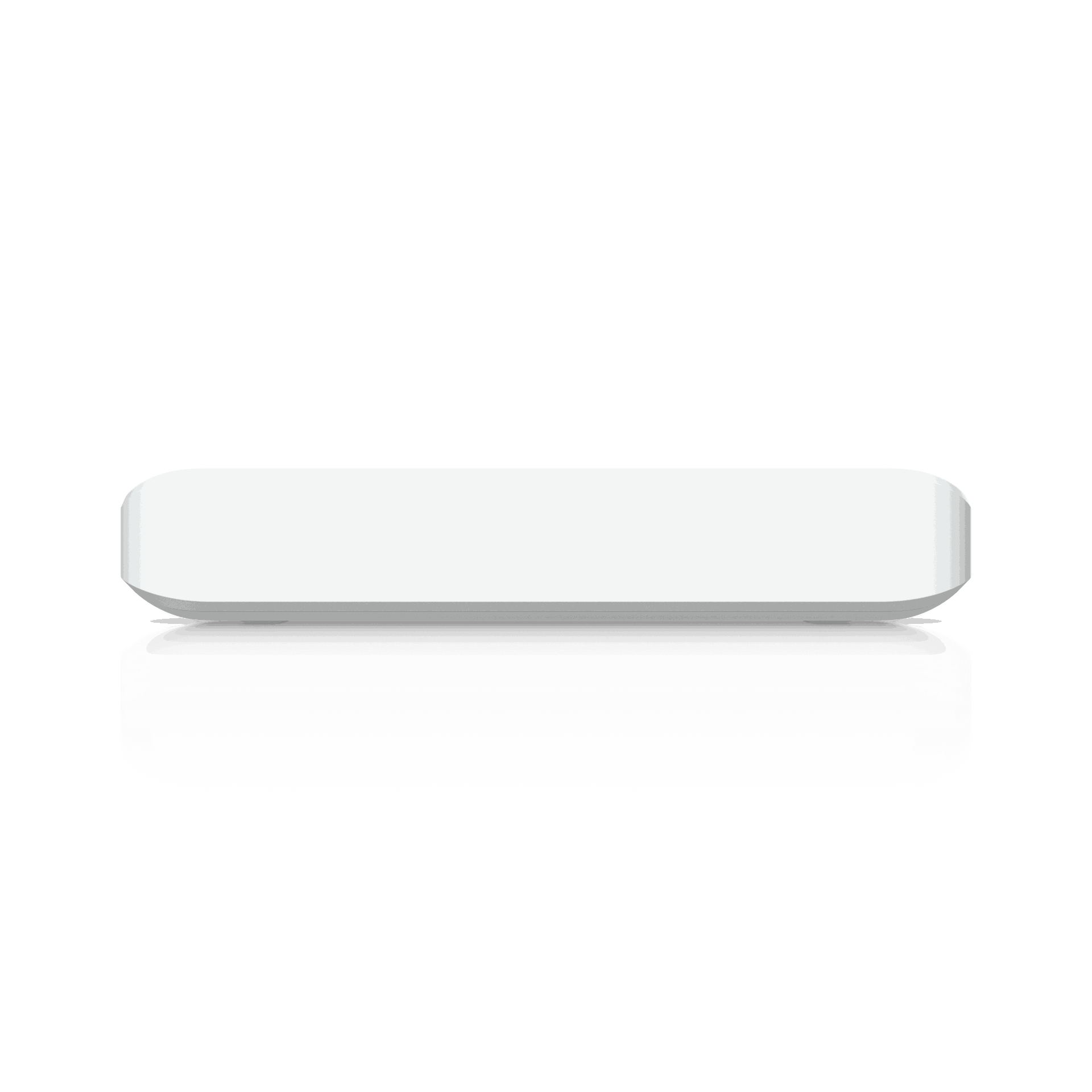

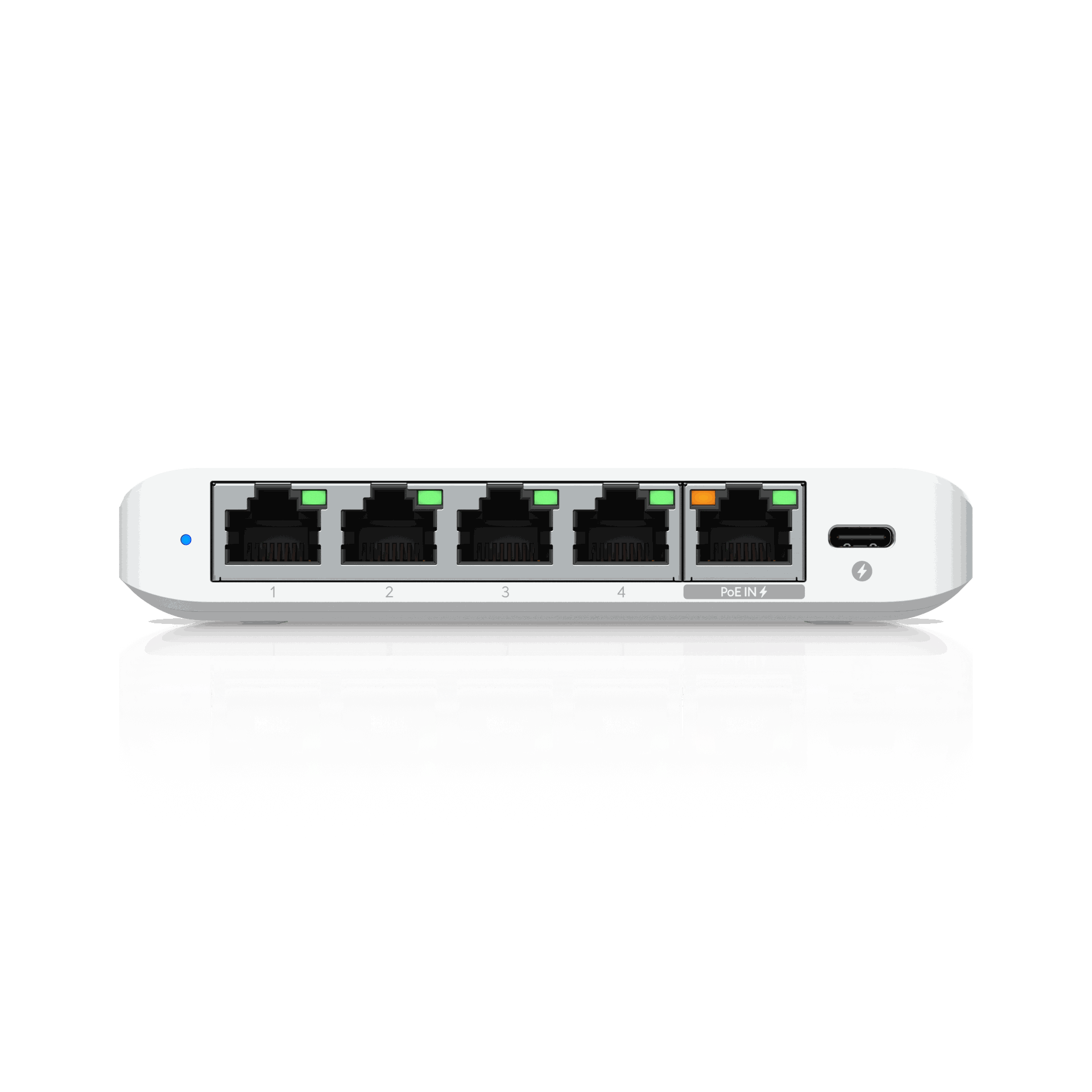

Ubiquiti USW-Flex-2.5G-5 UniFi Switch Flex Mini 2.5G
USW-Flex-2.5G-5 is a UniFi PoE switch for managed business networks, with 5 2.5 GbE RJ45 ports, 25 Gbps switching capacity.
Key Features
- Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
- High-density switching with 5 2.5 GbE RJ45 ports.
- Performance designed for demanding UniFi networks, including 25 Gbps switching capacity.
- Compact desktop form factor for clean installation in network cabinets or branches.
- Managed with Version 8.6.9 and later for centralised UniFi monitoring and control.
Technical Specifications
- Dimensions: 117.1 x 90 x 21.2 mm
- Weight: 206 g
- Connectivity: 5 2.5 GbE RJ45 ports
- Power method: (1) USB Type-C, 5V DC, 1A; (1) PoE
- Max. power consumption: 5W (AC/DC input); 6.4W (PoE input)
- Switching capacity: 25 Gbps
- Total non-blocking throughput: 12.5 Gbps
- Forwarding rate: 19 Mpps
- Form factor / mounting: Compact desktop
- Operating temperature: -20 to 45° C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, Anatel
- Application requirements: Version 8.6.9 and later
- Supported VLANs: 256
- MAC Address Table Size: 4,000
