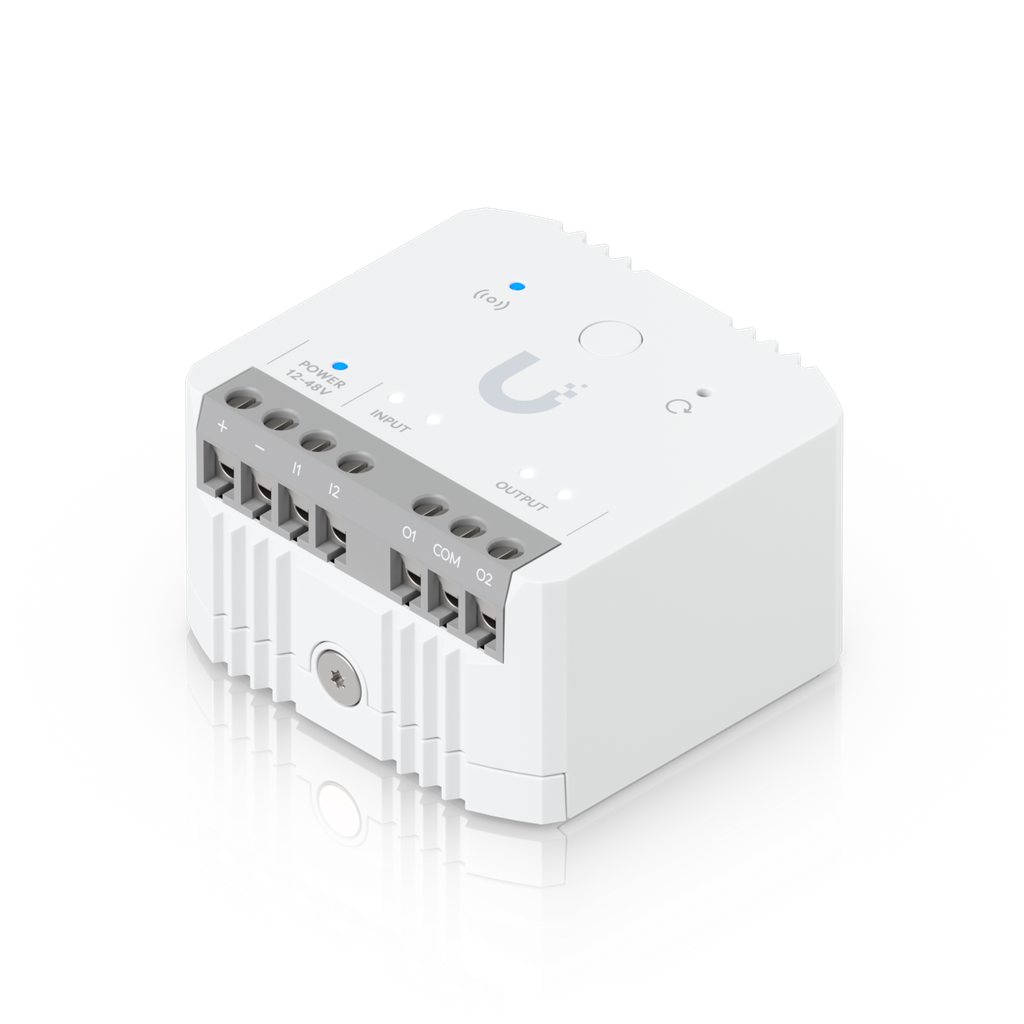

Ubiquiti USL-Relay-US UniFi SuperLink Relay
UniFi Protect SuperLink relay with dry contact relay output, dry contact input, 12–48V DC power and adhesive, wall or DIN rail mounting.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USL-Relay-US UniFi SuperLink Relay
The USL-Relay-US is a SuperLink-connected relay module for UniFi Protect, providing dry contact relay output and signal input integration for security and facility workflows.
Key features
- Dry contact relay output for 12–48V DC or 12–240V AC circuits.
- Dry contact input for open/short signal integration.
- SuperLink connectivity with up to 2 km range.
- 12V DC, 24V DC or 48V DC power input.
- Adhesive, wall and DIN rail mount options.
Ideal applications
- Integrating external alarm, access, automation or facility signals into UniFi Protect.
- Remote relay control where network cabling is not available.
- DIN rail or wall-mounted control cabinet deployments.
Technical specifications
- Dimensions: 50 x 47.6 x 28 mm.
- Weight: 100 g.
- Networking/connectivity: Proprietary SuperLink connectivity at 915.6–927.6 MHz for US operation.

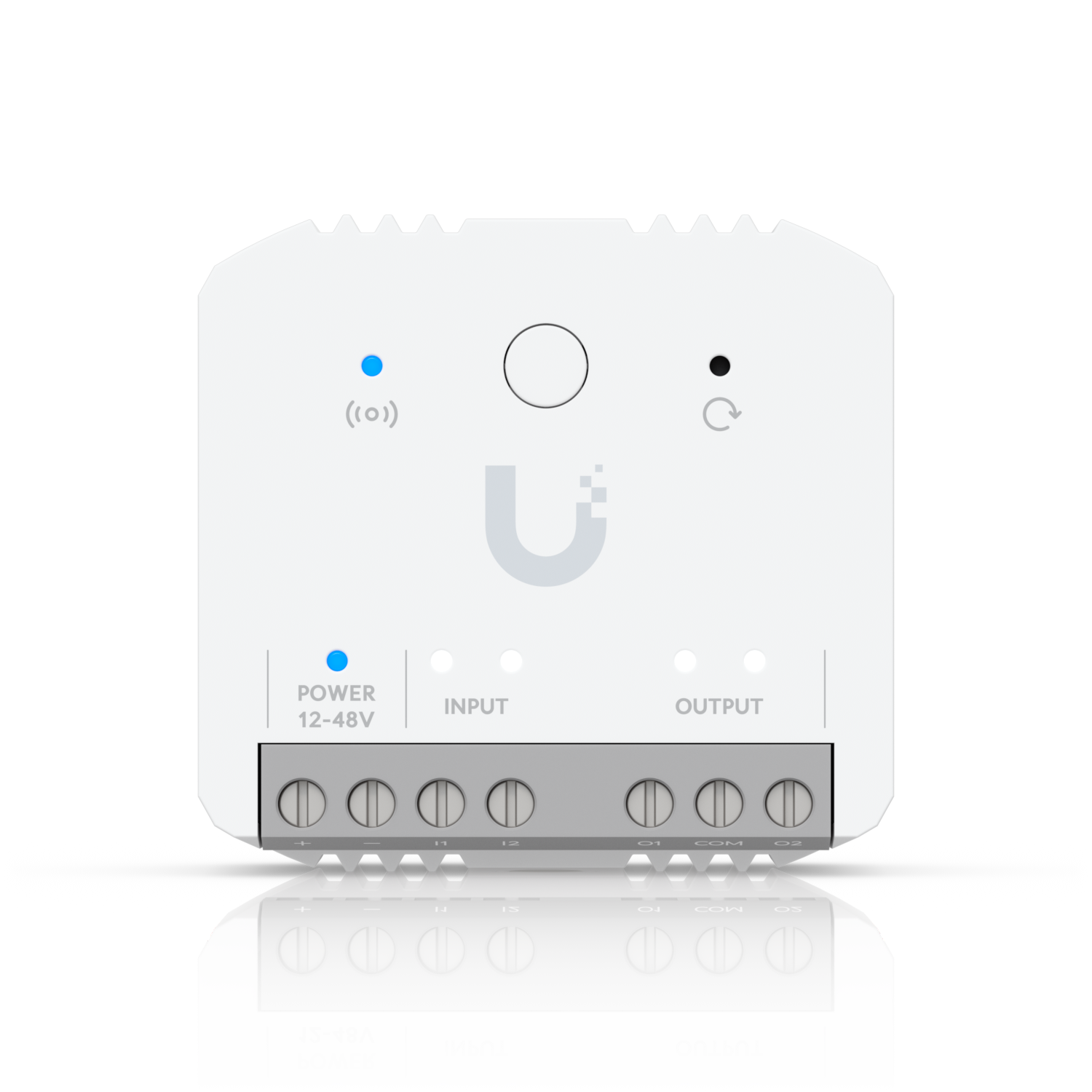

- Power: 12V DC / 24V DC / 48V DC input; VDD/GND 12–48V DC terminal block.
- Performance/capacity: O1/COM/O2 dry contact output, 10A per port; UL total max 12A, IEC total max 16A; I1/I2 dry contact input.
- Environment: 0 to 40°C operating temperature; 10 to 90% noncondensing humidity.
- Compatibility: UniFi Protect web and UniFi Protect iOS/Android apps; SuperLink Gateway required.
- Certifications: CE, FCC, IC; NDAA compliant.
Why choose USL-Relay-US?
USL-Relay-US bridges UniFi Protect SuperLink with external dry-contact systems for flexible alerting, control and automation use cases.
