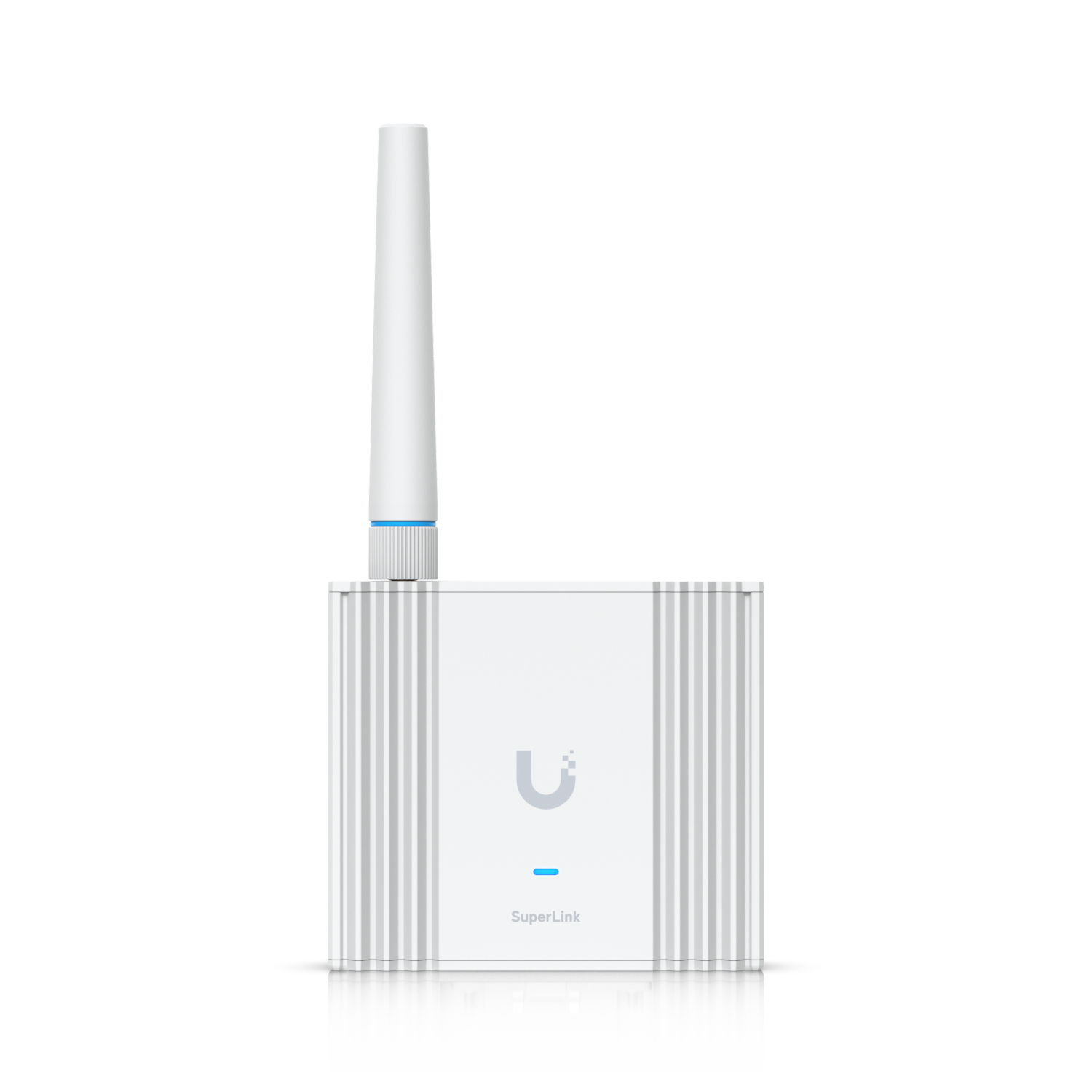

Ubiquiti USL-Gateway-US UniFi SuperLink Gateway
UniFi Protect SuperLink gateway with 2 km SuperLink range, 96 sensor clients, Bluetooth 5.2 support, PoE power and wall/DIN mounting.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti USL-Gateway-US UniFi SuperLink Gateway
The USL-Gateway-US is a proprietary long-range, low-latency wireless gateway for UniFi Protect SuperLink sensors, supporting up to 96 SuperLink clients, Bluetooth 5.2 devices and PoE or optional USB-C power.
Key features
- Supports up to 96 SuperLink clients with up to 2 km line-of-sight range.
- Bluetooth 5.2 support for up to 7 BLE devices with up to 100 m range.
- Powered by PoE or optional USB-C 5V/1A input.
- Wall and DIN rail mount options for flexible deployment.
- RP-SMA antenna connector with 2 dBi SuperLink antenna gain.
Ideal applications
- Large UniFi Protect sensor deployments across warehouses, schools and commercial buildings.
- Long-range coverage for SuperLink entry, environmental, motion, relay and alarm sensors.
- DIN rail or wall-mounted control-room, comms-rack and utility-space installations.
Technical specifications
- Dimensions: With antenna: 159.3 x 81.9 x 26 mm; with DIN rail mount: 159.3 x 81.9 x 38.5 mm; with wall mount: 159.3 x 81.9 x 30.5 mm.
- Weight: 179 g.
- Networking/connectivity: (1) 10/100 MbE RJ45 port, Bluetooth 5.2 and proprietary SuperLink.
- Power: PoE or optional USB Type-C 5V/1A; 3.4W maximum consumption.
- Performance/capacity: SuperLink 915.6–927.6 MHz US operation, 27 dBm max TX power, up to 2 km range and 96 SuperLink clients.
- Environment: 0 to 40°C operating temperature; 10 to 90% noncondensing humidity.
- Compatibility: UniFi Protect web and UniFi Protect iOS/Android apps.
- Certifications: CE, FCC, IC; NDAA compliant.
Why choose USL-Gateway-US?
USL-Gateway-US extends UniFi Protect into long-range SuperLink sensing, making it easier to build reliable security and environmental sensor coverage from a central Protect deployment.
