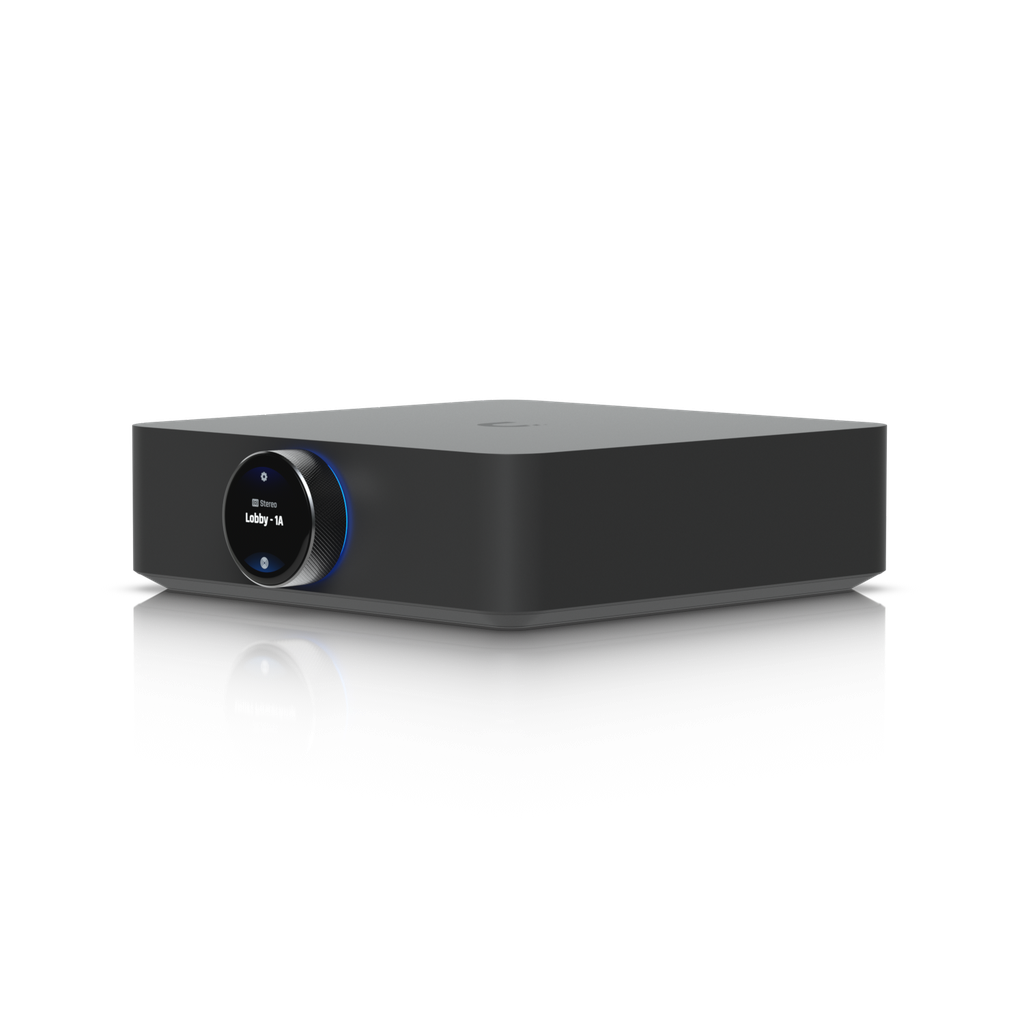

Ubiquiti UPL-Amp-B-AU Unifi PowerAmp Black
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UPL-Amp-B-AU Unifi PowerAmp Black
Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
130 watts per channel at 8 ohms
(2) speaker terminal outputs with (2) custom-designed banana plugs included
(1) RCA analog subwoofer output
(2) RCA analog inputs for left and right channels
(1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos
1.43" rotary knob with touchscreen
Effortless setup, management, and group control with the UniFi Play mobile app
| Mechanical | |
|---|---|
| Dimensions | With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure material | Plastic |
| Mounting | Desktop |
| Color | Black White |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| WiFi standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz |
| Power method | (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz |
| Power consumption | 17W |
| LEDs | LED ring |
| LCM display | 1.43" rotary knob with touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Per channel power (Continuous power) | 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
| Amplifier class | Class D |
| Output | Stereo sound |
| Surround format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
| Grouping | Up to 32 PowerAmps |
| Audio input | (1) HDMI eARC input (2) RCA analog inputs L/R |
| Audio output | (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay2, Spotify Connect, Soundtrack Your Brand* *Available November 8th. |
| Application Requirements | |
| UniFi Play | UniFi Play iOS™ and Android™: Version 1.0.0 and later |
