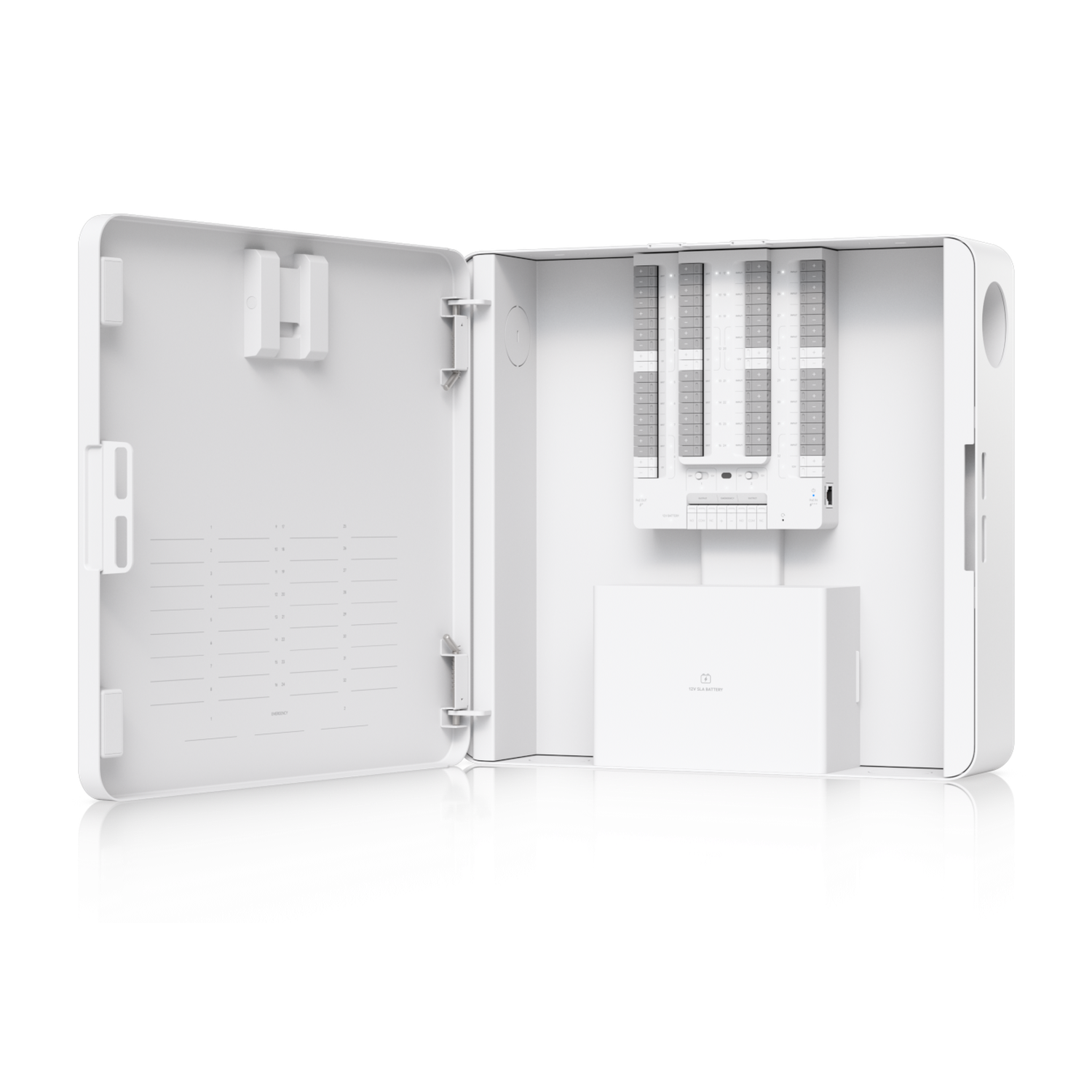

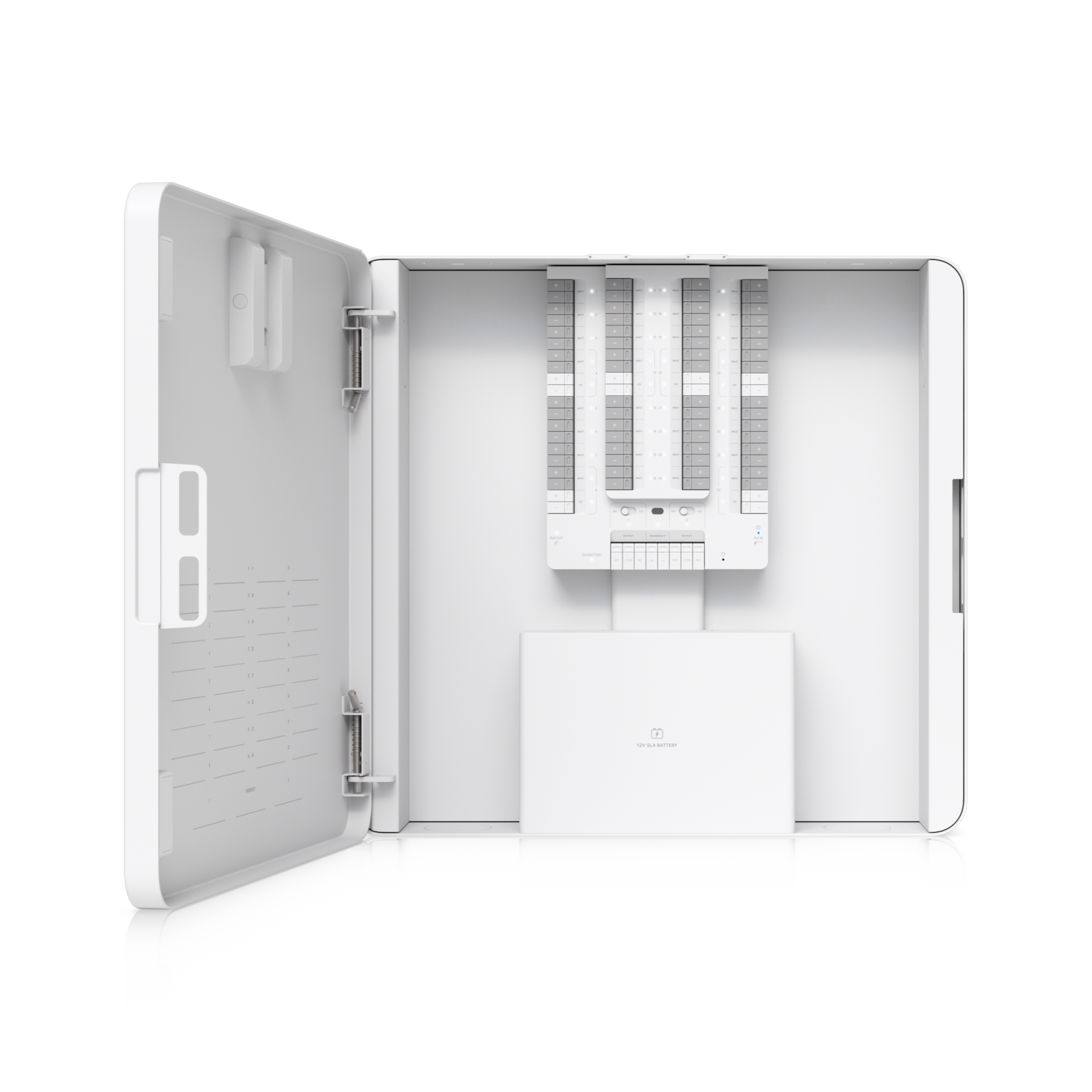

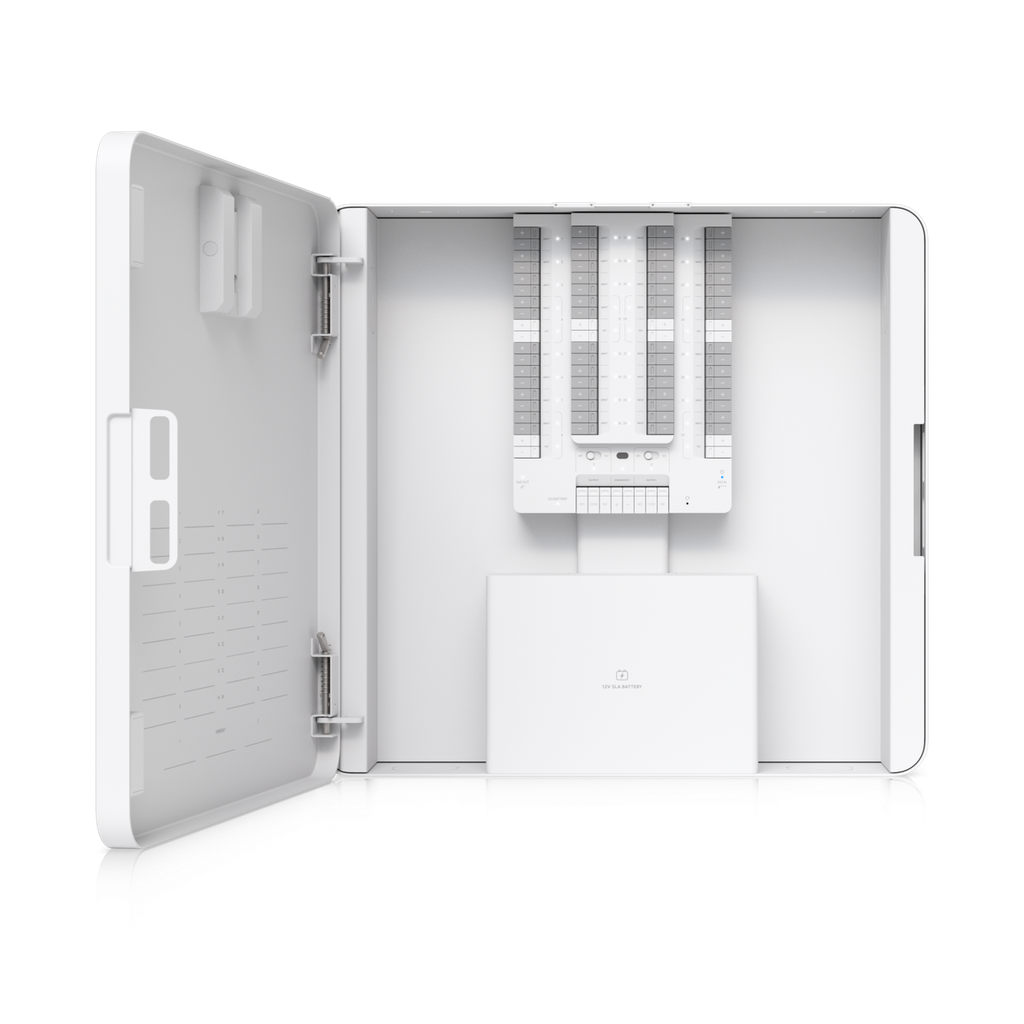

Ubiquiti UP-AlarmHub-Kit Unifi Protect Alarm Hub Kit
UniFi Protect 32-zone alarm control hub for hardwired sensors, with PoE++/PoE+++ input, optional 12V SLA battery backup, PoE+ output and 12V sensor power outputs.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UP-AlarmHub-Kit UniFi Protect Alarm Hub Kit
UP-AlarmHub-Kit is a UniFi Protect 32 input zone alarm control hub for hardwired intrusion sensors, powered by PoE++/PoE+++ with optional 12V SLA battery backup, PoE+ output, and auxiliary 12V sensor power outputs.
Key Features
- 32 input zone alarm control hub for hardwired intrusion sensors.
- 32 alarm sensor inputs plus 1 emergency input.
- PoE++/PoE+++ input with optional 12V SLA backup battery support.
- Power output availability of 68W with PoE+++ input or 42W with PoE++ input.
- PoE+ output for downstream device power.
- Auxiliary 12V DC sensor power outputs on both left and right sides.
- Indoor wall-mount steel enclosure for UniFi Protect alarm deployments.
Technical Specifications
- Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
- Weight: Device 8.3 kg (18.3 lb); mount 624 g (1.4 lb)
- Input terminals: 32 alarm sensor inputs; 1 emergency input
- Digital input: 32 alarm sensor inputs compatible with EOL resistors 1-5.6 kOhm, 1 kOhm included; 1 emergency input
- Power method: PoE++/PoE+++ input; optional 12V SLA battery
- Power output availability: PoE+++ input 68W; PoE++ input 42W
- PoE interface: 1 x PoE++/PoE+++ input, 54V DC, 60W/90W; 1 x PoE+ output, 54V DC, 30W
- Networking interface: 1 x 10/100 MbE RJ45 port
- Max. power consumption: 90W
- Battery charge: SLA backup battery, 12V, 0.3A
- Output relay: 2 x wet/dry; wet 12V DC, 1A; dry 30V DC, 1A
- Aux power output: For sensor, 3 x 12V DC 1A right side total and 3 x 12V DC 1A left side total
- Enclosure material: SGCC steel housing with polycarbonate cover
- Mount material: SGCC steel
- Mounting: Wall
- Indoor/outdoor use: Indoor only
- Operating temperature: -10 to 40 degrees C (14 to 104 degrees F)
- Operating humidity: 5 to 95% noncondensing
- LEDs: W/B
- Buttons: 1 x factory reset; 2 x dry/wet switch
- Certifications: CE, FCC, IC
- NDAA compliant: Yes
- Application requirements: UniFi Protect 7.0.88 and later; UniFi Protect iOS 3.3.0 and later; UniFi Protect Android 3.2.0 and later
