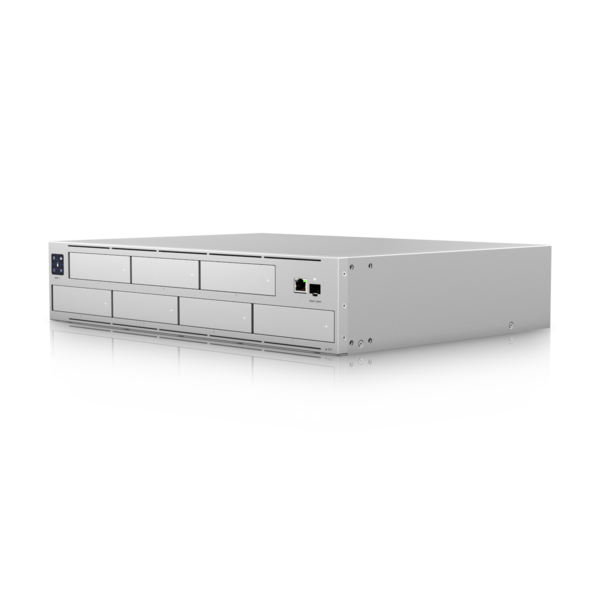

Ubiquiti UNAS-Pro UniFi NAS Network Attached Storage 7 Bay
Ubiquiti Unifi 2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
(7) 2.5/3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
UniFi Power Backup ready
1.3" touchscreen for management
| Mechanical | |
|---|---|
| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 8 GB |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE RJ45 port (1) 1/10 GbE SFP+ port |
| RF interface | Bluetooth 4.1 |
| Power method | (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power supply | AC/DC, internal, 200W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 160W |
| Max. power budget for Drives | 135W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| LCM Display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| LEDs | |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| SFP+ | White: 10 Gbps Green: 1 Gbps |
| HDD | White: disk detected Amber: disk error |
| RPS | Blue: ready |
