RF Elements ULD-TP-400 UltraDish TwistPort 400 5GHz 24dBi


Product Code: ULD-TP-400

160.60 incl. GST 160.6 AUD 160.60


    This combination does not exist.

    Add to Cart Buy Now

    RF Elements
    RF Elements

    RF Elements solve the issue of interference in wireless networks by our proprietary technology based on noise rejecting antennas, virtually lossless connector and systems scalability. We deliver technology for fast, sustainable wireless.

    Share this product:

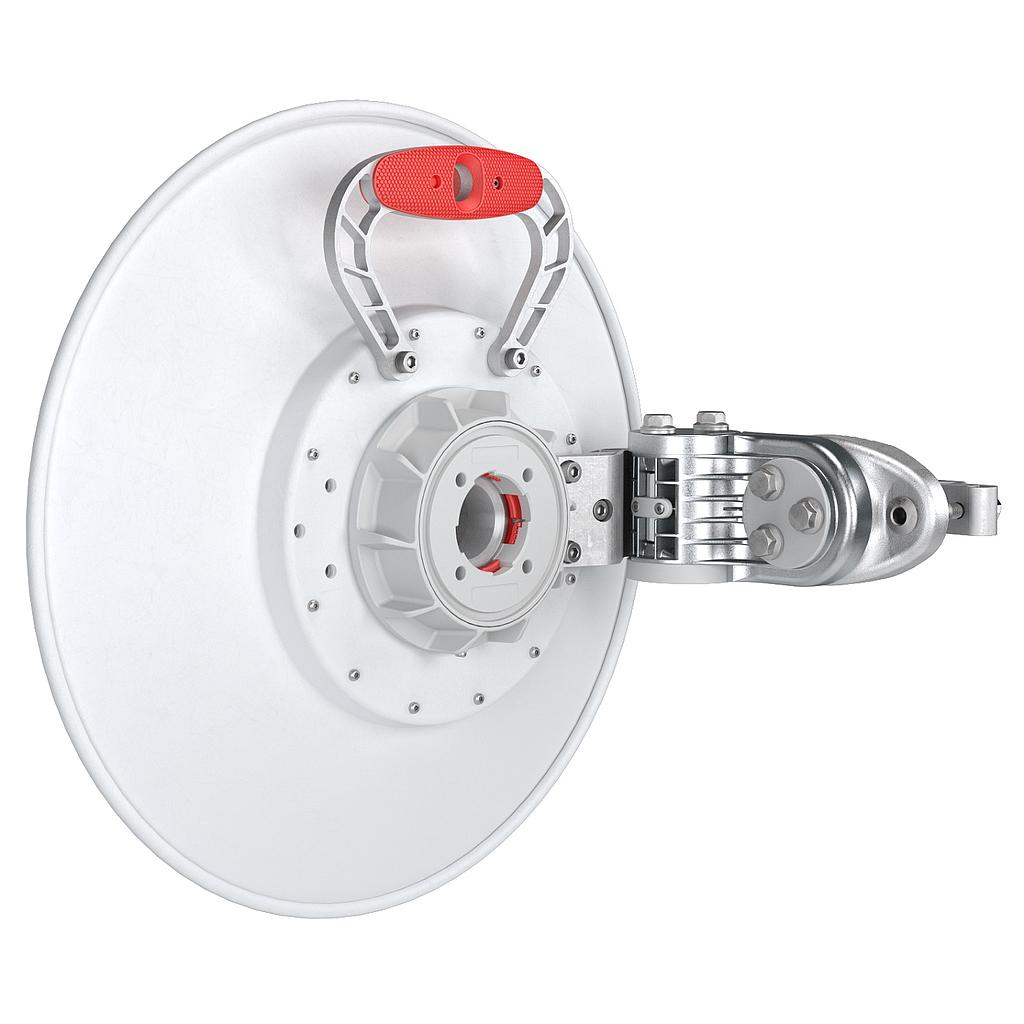

    RF Elements ULD-TP-400 UltraDish TwistPort 400 5GHz 24dBi

    The RF Elements UltraDish TwistPort Antennas Parabolic dish antennas with a TwistPort connector and an innovative mount.

    RF Elements UltraDish TP Antennas are high-gain directional parabolic antennas with a lossless TwistPort connector. The antennas are highly directional and have suppressed side lobes for ultimate performance.

    Beam Performance UltraDish TP antennas have suppressed side lobe radiation that reduces interference and enables installation in areas with high noise levels. The gain of RF Elements UltraDish TP Antennas is achieved by focusing the signal delivered via the TwistPort waveguide.

    RF Elements TwistPort Connector TwistPort connector is a quick-locking virtually lossless waveguide port that connects the radio with the antenna. The TwistPort connector is our design and sets a new standard for outdoor wireless equipment in terms of performance, scalability, ease of use and deployment simplicity.

    Easy Connection RF ElementsTwistPort is the new definition of “easy”. By integrating the mechanical and the RF connection into the same structure, the connection of the radio to the antenna is brilliantly simple  - “twist and lock” - and can be done with one hand!

    Lossless TwistPort connectors are virtually lossless: there are no coaxial RF connectors or RF cables that cause significant signal loss. In comparison to widely used coaxial cables and connectors, the loss on RF Elements TwistPort is almost unmeasurable.

    Cross-Platform Compatibility UltraDish TP Antennas can be used with any radio with a TwistPortTM interface or with a variety of third-party radios connected through a RF Elements TwistPort Adaptor.

    ULD-TP-400 Technical Data

    • Antenna Connection TwistPort - Quick Locking Waveguide Port
    • Antenna Type Parabolic Dish
    • Environmental IP65
    • Pole Mounting Diameter 22-80 mm
    • Temperature -40 to +60 °C (-40°F to +140°F)
    • Wind Survival 160 Km/h
    • Antenna Compatibility
    • Any TwistPortTM Adaptor with TwistPortTM connector
    • Any SIMPERTM Radio with TwistPortTM connector
    • UltraDishTM TP 4000 Product ID ULD-TP-400
    • Gain 24.5 dBi
