Ubiquiti UF-LOCO 1 Gbps, GPON Subscription
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UF-LOCO 1 Gbps, GPON Subscription

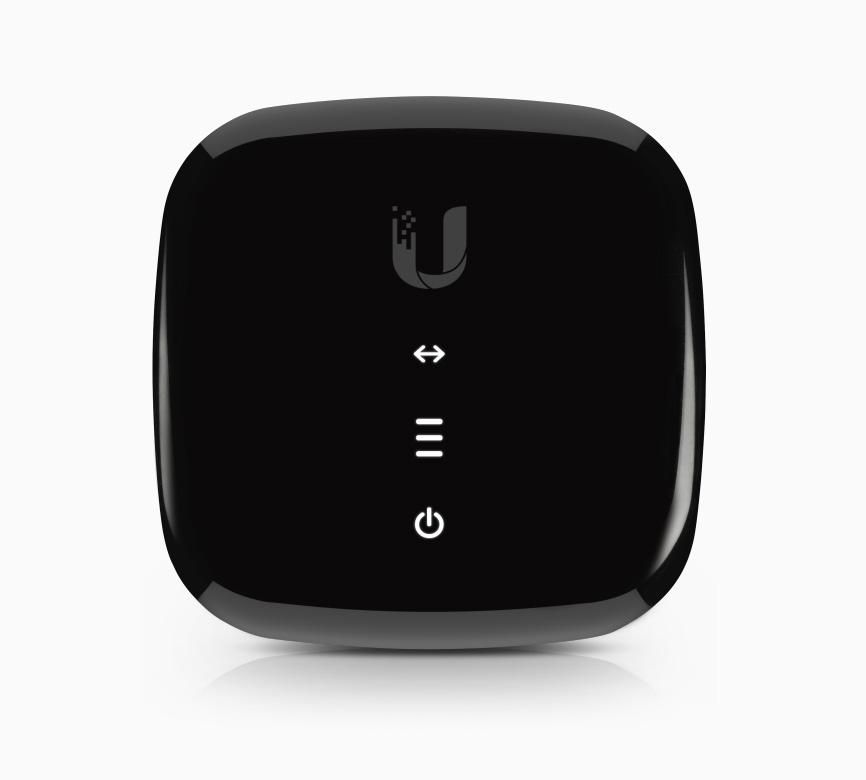

Low-Cost Ubiquiti UFiber Loco GPON Optical Network Unit (ONT). Sporting a sleek industrial design, the UFiber loco is a robust, high performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power.
Features:
- The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power
- The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE
- Up to 128 UFiber loco devices can be connected to a single GPON port
- Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices
Details: | |
Manufacturer's Code | UF-LOCO |
Dimensions | 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") |
Weight | 77 g (2.72 oz) |
Networking Interface Speeds | (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream, (1) GbE LAN, 10/100/1000 Mbps |
Management | Interface In-Band Ethernet/PON |
Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm, RX: -28 dBm to -8 dBm |
Power Method | Micro-USB: 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8) |
Power Supply | Micro-USB Power Adapter*: 5V, 1A |
Max. Power Consumption | 3.5W |
Supported Voltage Range | 4.7 to 5.3V |
Processor Specs | MIPS32, 240 MHz |
Memory Information | 128 MB DDR3 |
Buttons | (1) Reset |
Operating Temperature | -10 to 45° C (14 to 113° F) |
Operating Humidity | 10 to 90% Noncondensing |
Certifications | CE, FCC, IC |
