Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max WiFi7 (ETA AUG 26)
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

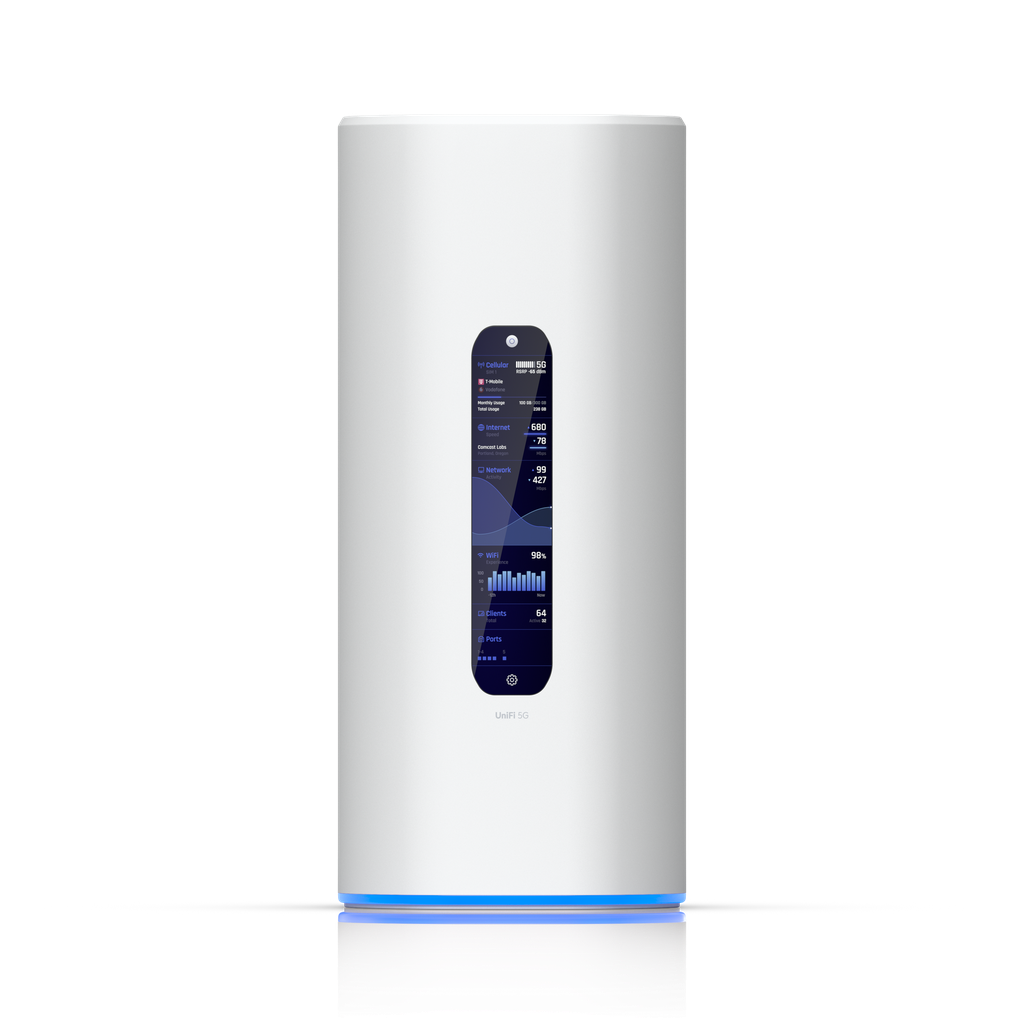

Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max WiFi7
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
Integrated 6-stream WiFi 7 AP with 6 GHz support
Includes full UniFi application suite for device management with 64GB MircoSD Pre-installed for NVR
Manages 30+ UniFi devices and 300+ clients
Integrated 4-port switch with (1) PoE port
(1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
Nano SIM and eSim
Overview
Dimensions
110 x 110 x 250 mm
(4.3 x 4.3 x 9.8")
UniFi Application Suite
Network
Yes
Protect
Yes
Access
Yes
Talk
Yes
Connect
Yes
Managed UniFi Devices
30+
Managed Cameras
(5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45
4 (1 PoE)
(2.5G/1G/100M)
10G SFP+
1
(10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Desktop
Coverage Area
160 m² (1,750 ft²)
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
20,000+ with CyberSecure
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Site-to-Site VPN Single Tunnel Throughput
Site Magic
20
VPN Client Single Tunnel Throughput
WireGuard
8
OpenVPN
8
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Virtual Network Override
Yes
All Traffic Flows
No
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz
8 dBi
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
22 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Cellular
5G NR
Category
5G NR Sub-6
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Antenna Gain
617-960 MHz: 3 dBi
1710-2700 MHz: 7 dBi
3300-5000 MHz: 8 dBi
5150~5925 MHz: 8 dBi
SIM
(2) Nano SIM
(1) Nano-SIM or eSIM
Hardware
NVR Storage
Pre-installed 64 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
15.4W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
34.5W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A
(Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
115 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.4 kg (3.1 lb)
Enclosure Material
Polycarbonate
LCM Display
4.7" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet
Yes
SFP+
Yes
System
Yes
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
