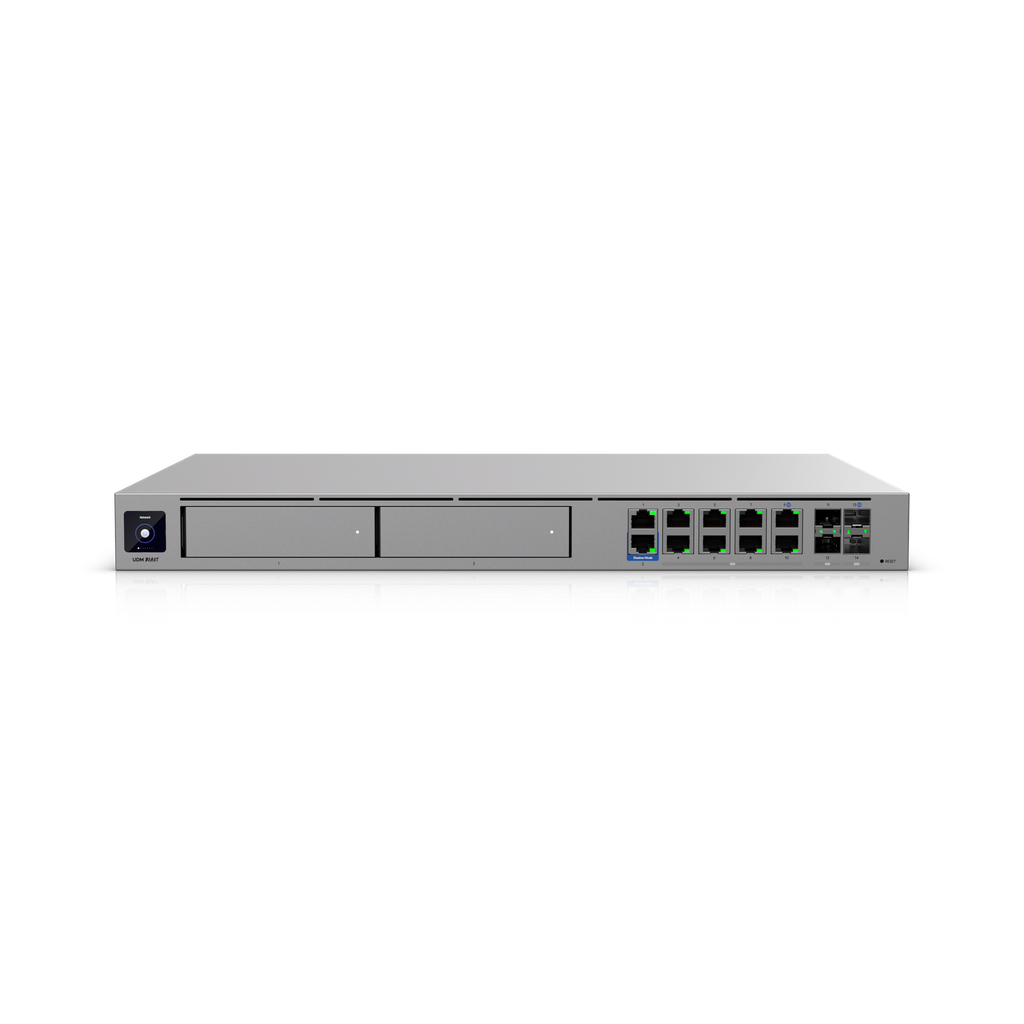

Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway - ETA Aug 26
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
UUbiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway - Rackmount
The UDM-Beast Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.
Enhanced computing power and memory
Includes full UniFi application suite for device management
25 Gbps routing with IDS/IPS
(1) 1Gbe RJ45*, (8) 10GbE RJ45 LAN ports
(2) 25G SFP28*, (2) 210G SFP+
(2) 3.5" NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
1.3" touchscreen
Technical SpecificationsOverviewDimensions442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8")UniFi Application SuiteNetworkYesProtectYesAccessYesTalkYesConnectYesManaged UniFi Devices750+Managed Cameras(100) HD
(60) 2K
(40) 4KManaged Access Hubs200Simultaneous Users Connected7,500+Max. WAN Port Count8Default WAN Ports(1) 25G SFP28
(1) 10 GbE RJ45Port Layout1 GbE RJ452
(1G/100M/10M)10 GbE RJ458
(10G/5G/2.5G/1G/100M)10G SFP+2
(10G/1G)25G SFP282
(25G/10G/1G)Console1IDS/IPS Throughput25 GbpsForm FactorRack mount (1U)RedundancyShadow Mode (VRRP) Gateway Failover
DC Power BackupSecurityStateful FirewallYesApplication-Aware Layer 7 FirewallYesDPI & Traffic IdentificationYesZone-Based Firewall Advanced Filtering (Regions, Domains, Apps)YesContent FilteringYesIntrusion Prevention (IPS/IDS)YesAd BlockingYesIDS/IPS Signatures55,000+ with CyberSecureVPN & SD-WANLicense-Free SD-WANYesSite-to-Site VPNSite MagicYesIPsecYesOpenVPNYesVPN ServerIdentity Endpoint One-Click VPNYesTeleport Zero-Configuration VPNYesWireGuardYesOpenVPNYesL2TPYesVPN ClientOpenVPNYesWireGuardYesNetworkingMulti-WAN Load BalancingYesShadow Mode (VRRP) High AvailabilityYesLACP Port AggregationYesDynamic RoutingOSPFYesBGPYesAdvanced QoSYesMulticast DNS (mDNS)YesAdvanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)YesIntegrated RADIUS ServerYesRADIUS over TLS (RadSec)YesAdditional Internet Failover with UniFi LTE BackupYesInternet Quality and Outage ReportingYesPolicy-based WAN and VPN RoutingYesCustomizable DHCP ServerYesIPv6 ISP SupportYesIGMP ProxyYesAll Traffic FlowsYesHardwareNVR Storage(2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster ExperienceMax. Power Consumption100WPower Method(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05APower SupplyAC/DC, internal, 150WSupported Voltage Range100–240V ACHeat Dissipation342 BTU/hrProcessorOcta-core ARM® v9 at 2.1 GHzSystem Memory16 GBOn-board StorageIntegrated 128 GB SSDWeight5.5 kg (12.13 lb)Enclosure MaterialAluminium CNC, SGCC steelMount MaterialSGCC steelLCM Display1.3" touchscreenManagementEthernet
BluetoothLEDsEthernetYesSFP+YesSFP28YesRPSYesHDDYesButton(1) Factory resetESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVAmbient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity5 to 95% noncondensingNDAA CompliantYesCertificationsCE, FCC, IC
Enhanced computing power and memory
Includes full UniFi application suite for device management
25 Gbps routing with IDS/IPS
(1) 1Gbe RJ45*, (8) 10GbE RJ45 LAN ports
(2) 25G SFP28*, (2) 210G SFP+
(2) 3.5" NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
1.3" touchscreen
Technical Specifications Overview Dimensions 442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8") UniFi Application Suite Network Yes Protect Yes Access Yes Talk Yes Connect Yes Managed UniFi Devices 750+ Managed Cameras (100) HD
(60) 2K
(40) 4K Managed Access Hubs 200 Simultaneous Users Connected 7,500+ Max. WAN Port Count 8 Default WAN Ports (1) 25G SFP28
(1) 10 GbE RJ45 Port Layout 1 GbE RJ45 2
(1G/100M/10M) 10 GbE RJ45 8
(10G/5G/2.5G/1G/100M) 10G SFP+ 2
(10G/1G) 25G SFP28 2
(25G/10G/1G) Console 1 IDS/IPS Throughput 25 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover
DC Power Backup Security Stateful Firewall Yes Application-Aware Layer 7 Firewall Yes DPI & Traffic Identification Yes Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes Content Filtering Yes Intrusion Prevention (IPS/IDS) Yes Ad Blocking Yes IDS/IPS Signatures 55,000+ with CyberSecure VPN & SD-WAN License-Free SD-WAN Yes Site-to-Site VPN Site Magic Yes IPsec Yes OpenVPN Yes VPN Server Identity Endpoint One-Click VPN Yes Teleport Zero-Configuration VPN Yes WireGuard Yes OpenVPN Yes L2TP Yes VPN Client OpenVPN Yes WireGuard Yes Networking Multi-WAN Load Balancing Yes Shadow Mode (VRRP) High Availability Yes LACP Port Aggregation Yes Dynamic Routing OSPF Yes BGP Yes Advanced QoS Yes Multicast DNS (mDNS) Yes Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes Integrated RADIUS Server Yes RADIUS over TLS (RadSec) Yes Additional Internet Failover with UniFi LTE Backup Yes Internet Quality and Outage Reporting Yes Policy-based WAN and VPN Routing Yes Customizable DHCP Server Yes IPv6 ISP Support Yes IGMP Proxy Yes All Traffic Flows Yes Hardware NVR Storage (2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience Max. Power Consumption 100W Power Method (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05A Power Supply AC/DC, internal, 150W Supported Voltage Range 100–240V AC Heat Dissipation 342 BTU/hr Processor Octa-core ARM® v9 at 2.1 GHz System Memory 16 GB On-board Storage Integrated 128 GB SSD Weight 5.5 kg (12.13 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3" touchscreen Management Ethernet
Bluetooth LEDs Ethernet Yes SFP+ Yes SFP28 Yes RPS Yes HDD Yes Button (1) Factory reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant Yes Certifications CE, FCC, IC |
