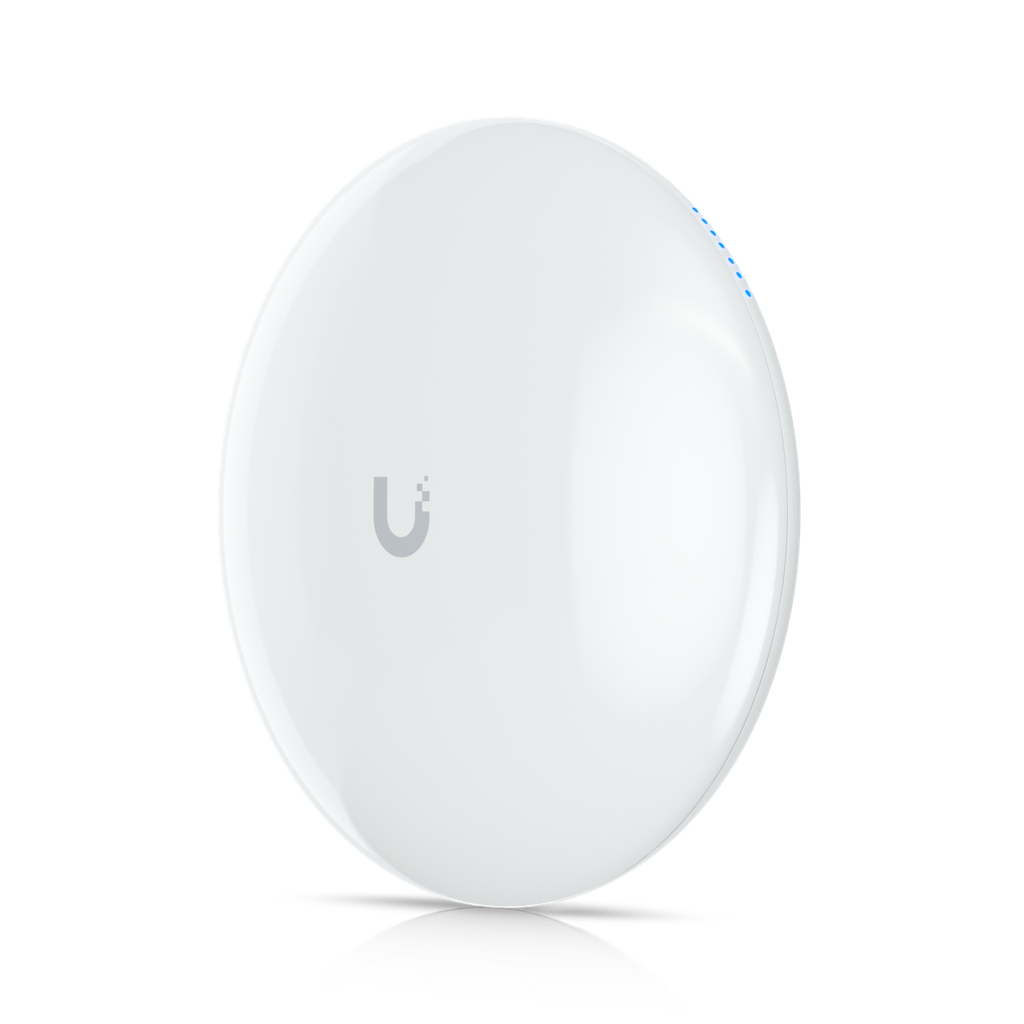

Ubiquiti UDB-Pro-AU Unifi Device Bridge Pro
Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
(2) GbE ports with (1) PoE output for PoE devices
Powered using PoE/PoE+*
Pole mounting
Weatherproof (outdoor exposed)
Sold as a single unit
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
*PoE adapter included. PoE+ input required for PoE passthrough.
| Mechanical | |
|---|---|
| Dimensions | Ø189.5 x 64.3 mm (Ø7.4 x 2.5") |
| Weight | Without mount: 431 g (1 lb) With mount: 515 g (1.1 lb) |
| Enclosure material | UV-resistant polycarbonate |
| Mount material | UV-stabilized polycarbonate, stainless steel |
| Pole mount diameter | 20–53.1 mm (0.8–2.1") on pipe outer diameter |
| Wind loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet WiFi |
| PoE interface | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Power method | PoE PoE+ (Required for PoE output) |
| Power supply | UniFi PoE switch 48V, 0.32A PoE adapter (Included) |
| Supported volatage range | 42.5–57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | – 25 dBm – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 867 Mbps (BW80) – |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | – 19 dBi – |
| Antenna | Internal |
| Range | 5+ km |
| LEDs | Power, Ethernet, (4) signal strength |
| Button | Factory reset |
| Mounting | Pole (Included) |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20/40/80 MHz |
| Max. conducted TX power | 25 dBm (Combined) |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
