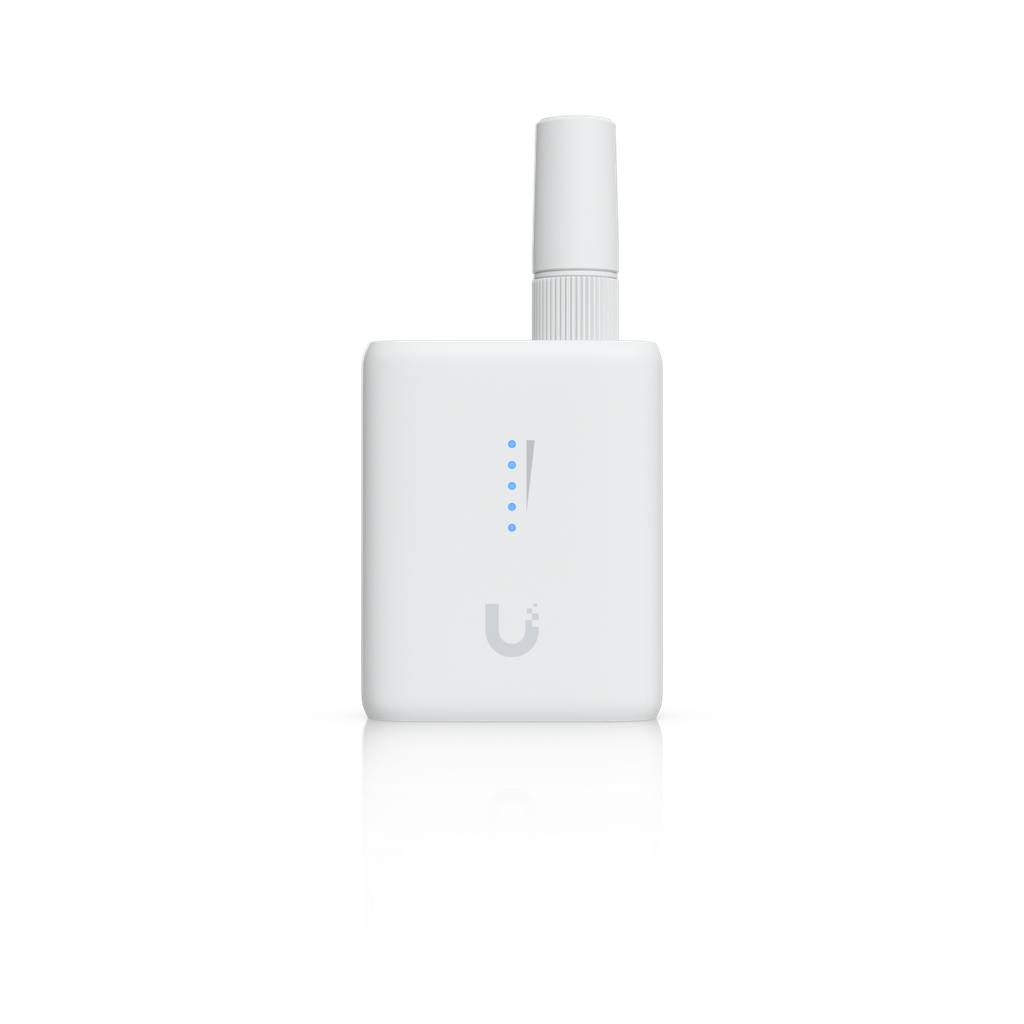

Ubiquiti UDB-IoT Unifi Device Bridge Ultra-Compact Wireless Bridge For IoT IoT

https://streakwave.com.au/web/image/product.template/22846/image_1920?unique=20ddfd7

Product Code: UDB-IoT

$ 110.00 incl. GST 110.0 AUD $ 110.00

$ 95.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

    Ubiquiti UDB-IoT Unifi Device Bridge IoT

    Unifi Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket.
    Technical Specifications
    Overview
    Dimensions
    Device: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1") With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1")
    WiFi Standard
    WiFi 4
    Spatial Streams
    2
    Mounting Locations
    Screw, DIN rail mount
    Mounting
    Included mount
    Power Method
    USB Type-C (5V DC, 1A) 4-pin DC (9–30V DC)
    Performance
    MIMO
    2.4 GHz
    2 x 2
    Max. Data Rate
    2.4 GHz
    300 Mbps (BW40)
    Antenna Gain
    2.4 GHz
    Internal: 4dBi External omni: 3dBi
    Max. TX Power
    2.4 GHz
    20 dBm
    Max. Conducted TX Power
    20 dBm (Combined)
    Supported Data Rates
    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Wireless Security
    WPA2 AES (Always On)
    Hardware
    Max. Power Consumption
    2.3W
    Supported Voltage Range
    USB-C: 5V DC Socket: 9–30V DC
    Networking Interface
    (1) 10/100M RJ45 port
    Antennas
    (1) Internal antenna (1) RP-SMA connector for external omni-antenna
    Management
    WiFi
    Channel Bandwidth
    20/40 MHz
    Weight
    Device: 45 g (1.6 oz) With external antenna: 53 g (1.9 oz)
    Enclosure Material
    Polycarbonate
    Mount Material
    Polycarbonate
    Button
    (1) Factory reset
    LEDs
    System
    (4) Blue: signal (1) White/blue: indicator
    NDAA Compliant
    Yes
    Certifications
    CE, FCC, IC
    Ambient Operating Temperature
    -10 to 50° C (14 to 140° F)
    Ambient Operating Humidity
    5 to 95% noncondensing
