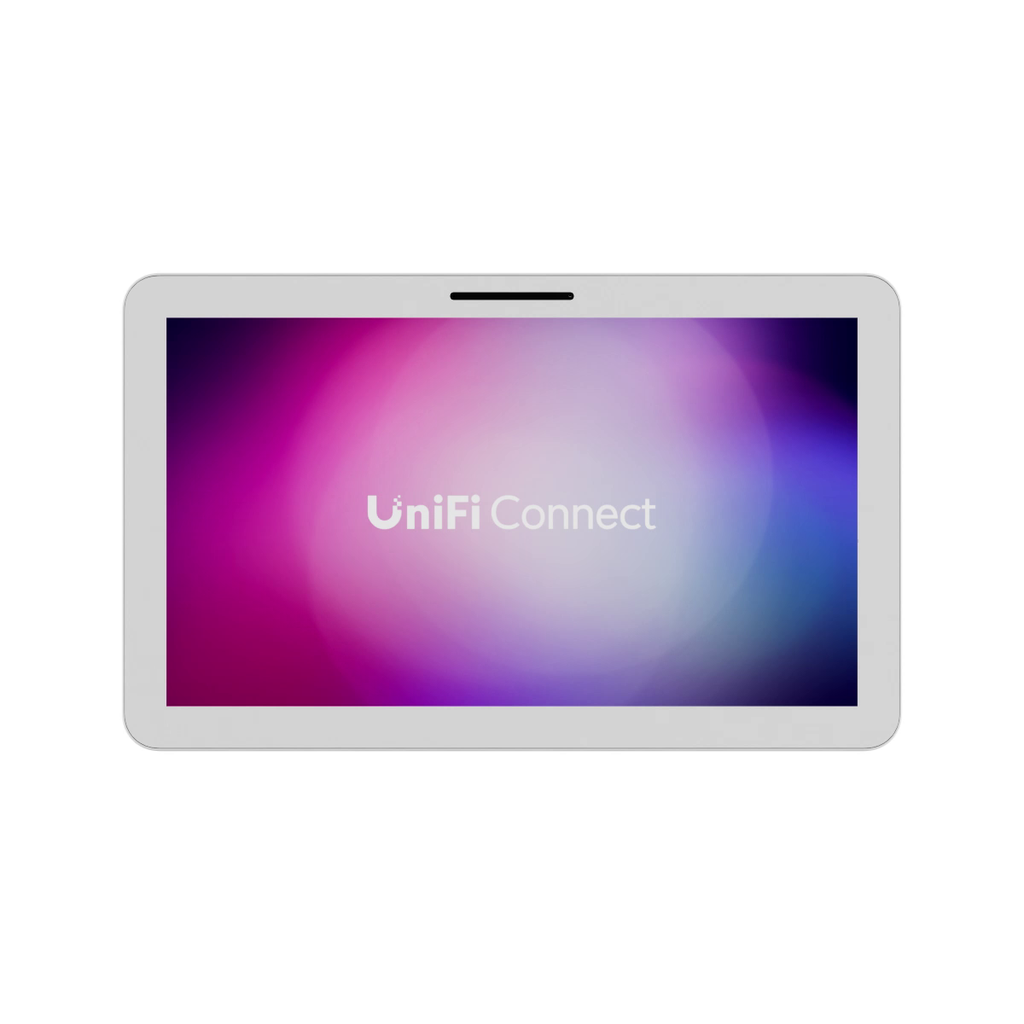

Ubiquiti UC-Display 21.5" Full HD PoE++ touchscreen designed for UniFi Connect.
Ultra-bright 21.5" touch display
Display media, web pages, and Android apps with UniFi Connect
Included VESA mount adapter
Multiple mounting options*
PoE++ in
Technical Specifications
Mechanical
Dimensions 538.3 x 330 x 37 mm
Weight 4.9 kg
Enclosure material Plastic, aluminum
Mounting VESA mount adapter (included)
Table stand (optional)
Surface mount (optional)
Arm mount (optional)
Flush mount (optional)
Hardware
Display size 546 mm (21.5") diagonal
Resolution 1920 x 1080 FHD (16:9)
Display luminance 250 nits (typical)
Touch screen technology Capacitive multi-touch
Screen orientation Portrait/landscape
Processor Octa-core ARM® Cortex®-A53 at 2.2 GHz
Memory Storage: 32 GB
RAM: 3 GB
Power input PoE++
Power supply UniFi PoE++ switch
Max. power consumption 27W
Connectivity (1) GbE RJ45 port
(1) USB-C port (Reserved feature for future function update)
Bluetooth® 4.2
Button Factory reset
Microphone Yes
Speaker Yes
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 20 to 90% noncondensing
Certifications CE, FCC, IC
Software
Management application UniFi Connect web: Version 2.1.14 and later
UniFi Connect iOS™ and Android™: Version 1.0.0 and later
