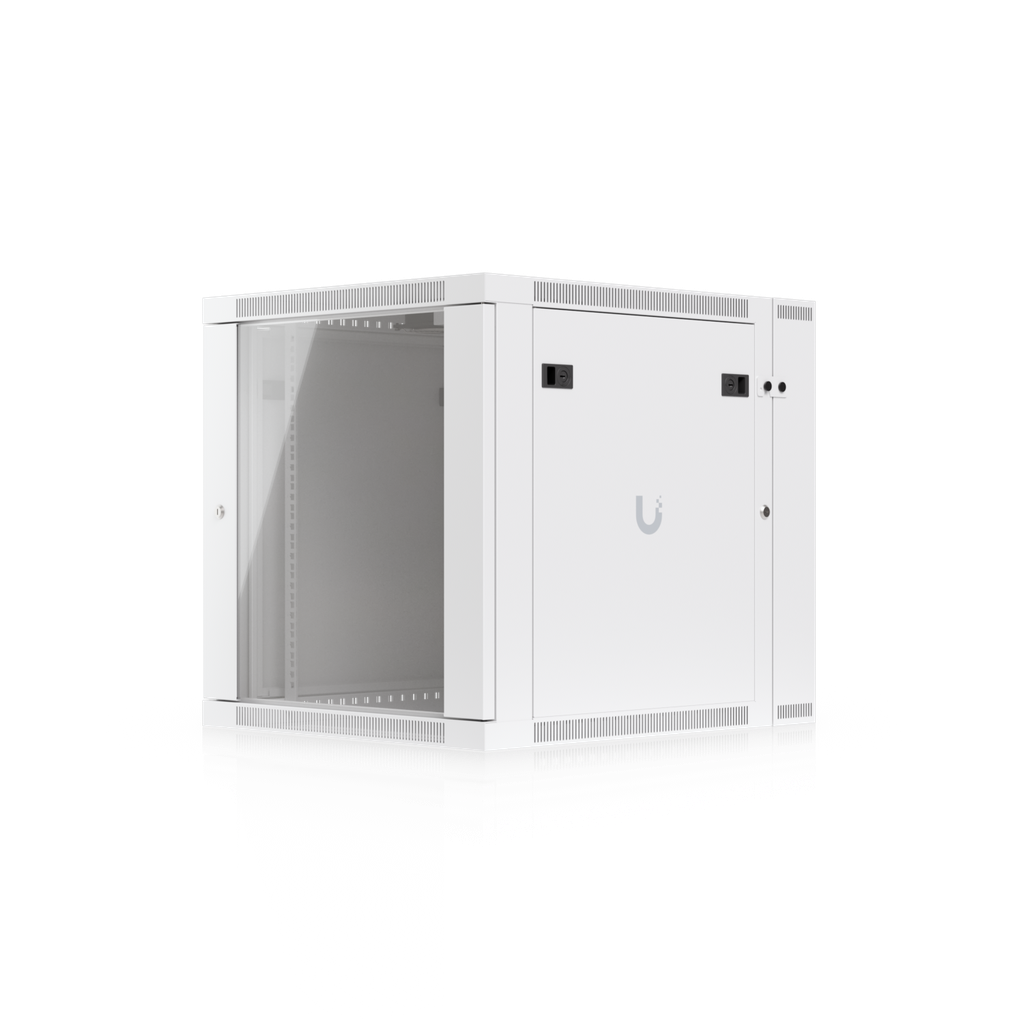

Ubiquiti UACC-Rack-12U-Wall-SW-G 12U Rack Cabinet Glass Door
12U wall-mount rack cabinet with tempered glass front door, built-in fans, removable lockable side panels, and 80 kg equipment capacity.
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti UACC-Rack-12U-Wall-SW-G UniFi 12U Rack Cabinet Tempered Glass Door
UACC-Rack-12U-Wall-SW-G is a 12U wall-mount rack cabinet for professional UniFi deployments, with official product specifications and clean installation details.
UACC-Rack-12U-Wall-SW-G is a fully assembled UniFi 12U wall-mount rack cabinet for space-efficient network deployments, with a tempered glass front door, integrated fan module and removable lockable panels.
Key Features
- Fully assembled 12U wall-mount rack cabinet for compact UniFi rack deployments.
- Built-in fan module with ≤ 50 dB(A) acoustic noise rating.
- Removable, lockable side panels with front door lock and two keys.
- Square-hole 4-post enclosed cabinet with powder-coated SPCC steel construction.
- Grounding lugs and top, bottom and rear cable entry openings for clean installation.
Technical Specifications
- Dimensions: Rack: 600 x 703 x 639 mm; packaging: 725 x 840 x 735 mm
- Weight: Rack: 29.4 kg; packaging: 35.3 kg
- Enclosure material: SPCC steel with powder coating
- Rack type: 12U, 4-post enclosed cabinet with square mounting holes
- Adjustable mounting depth: Default 434 mm; max. 559 mm; adjustable pitch 25 mm
- Max. weight capacity: 80 kg

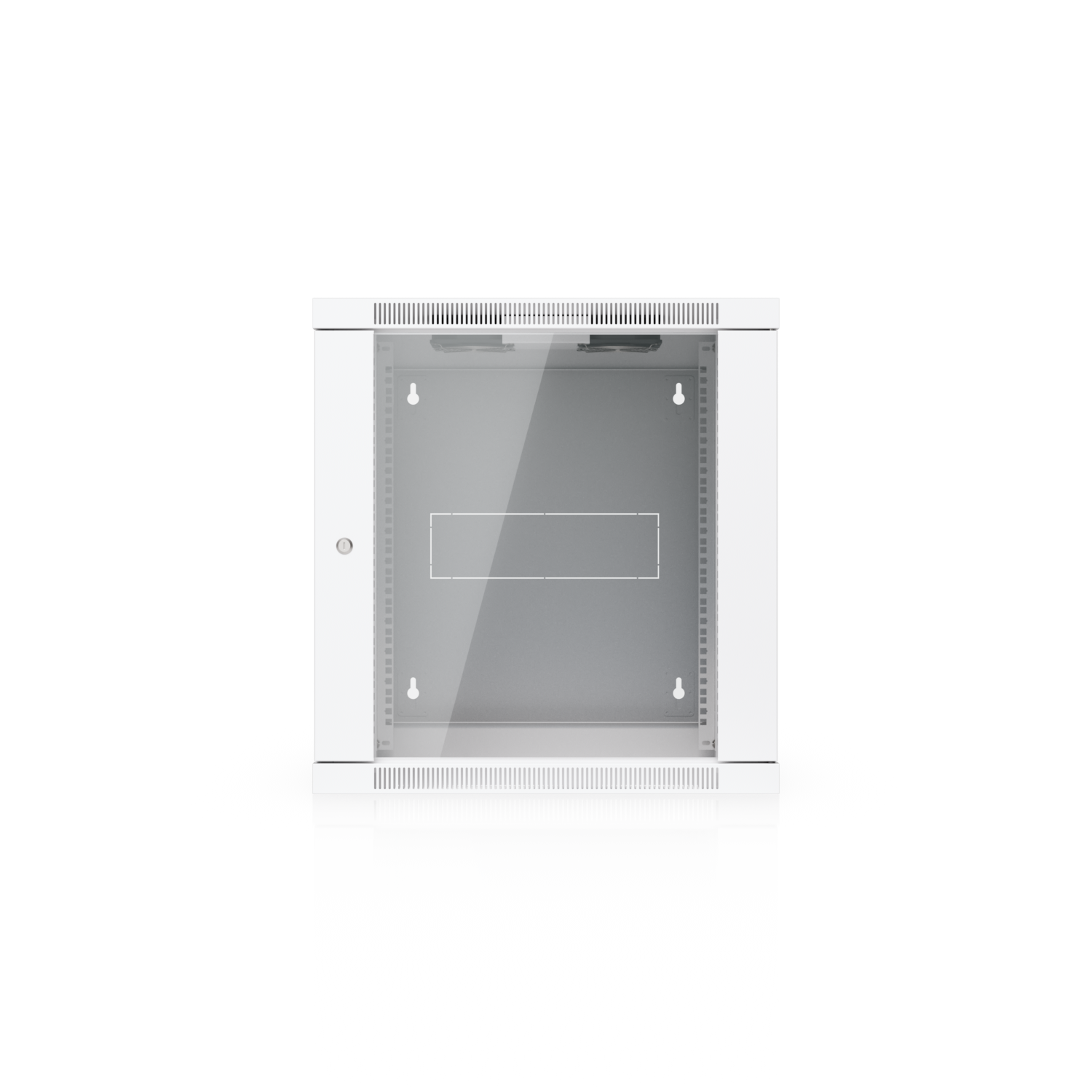

- Front door: Tempered glass; default left-hand outswing, reversible
- Rear door: Solid swing-out

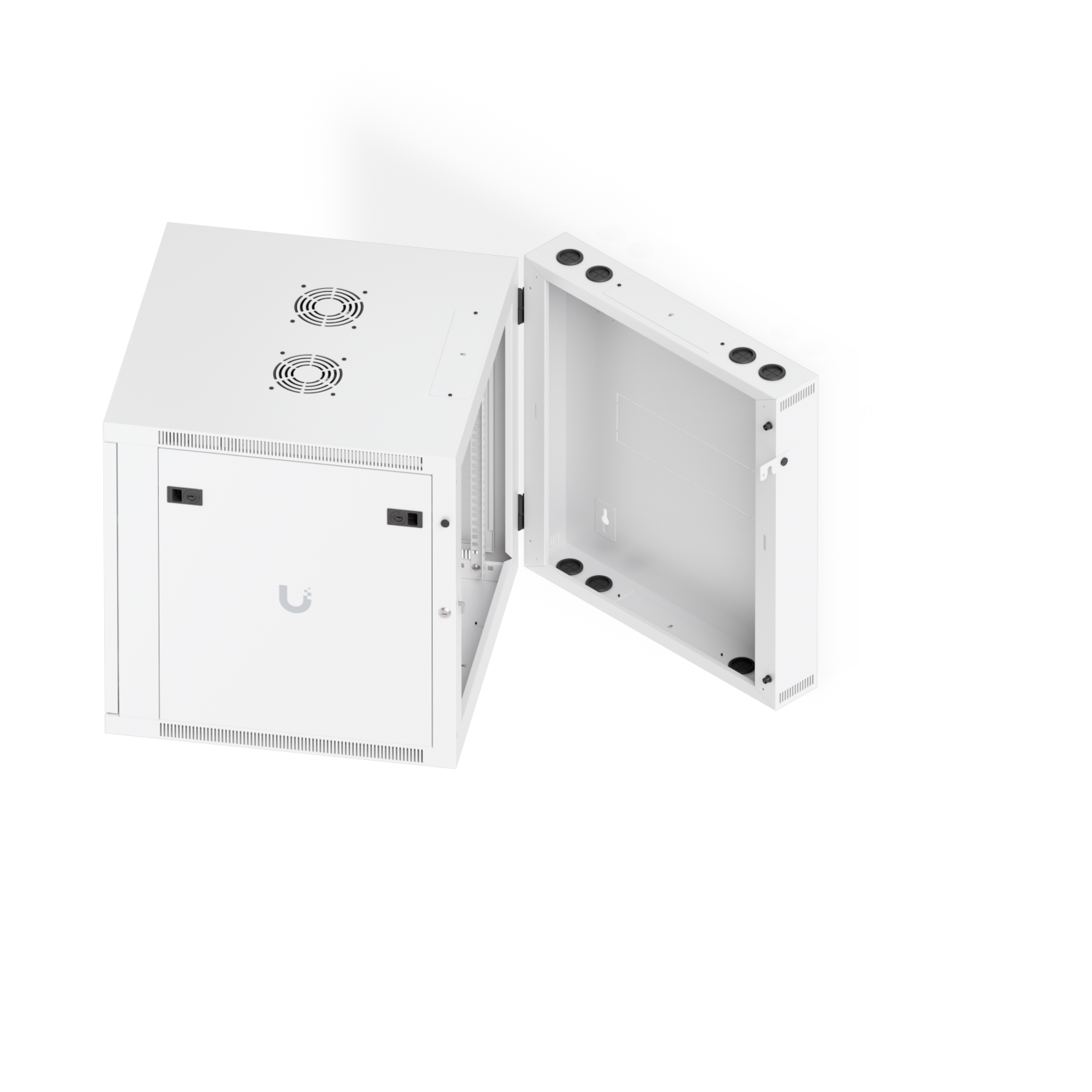

- Side panels: Two solid, removable and lockable side panels
- Mounting: Wall mount
- Fan module: Included
- Acoustic noise: ≤ 50 dB(A) sound pressure level
- Security: Front door lock, side panel locks and two keys, plus swing-out rear door lock
- Cable entry: Rear wall, top and bottom cable entry openings
- Certifications: CE; EIA/ECA-310-E; RoHS; NDAA compliant
