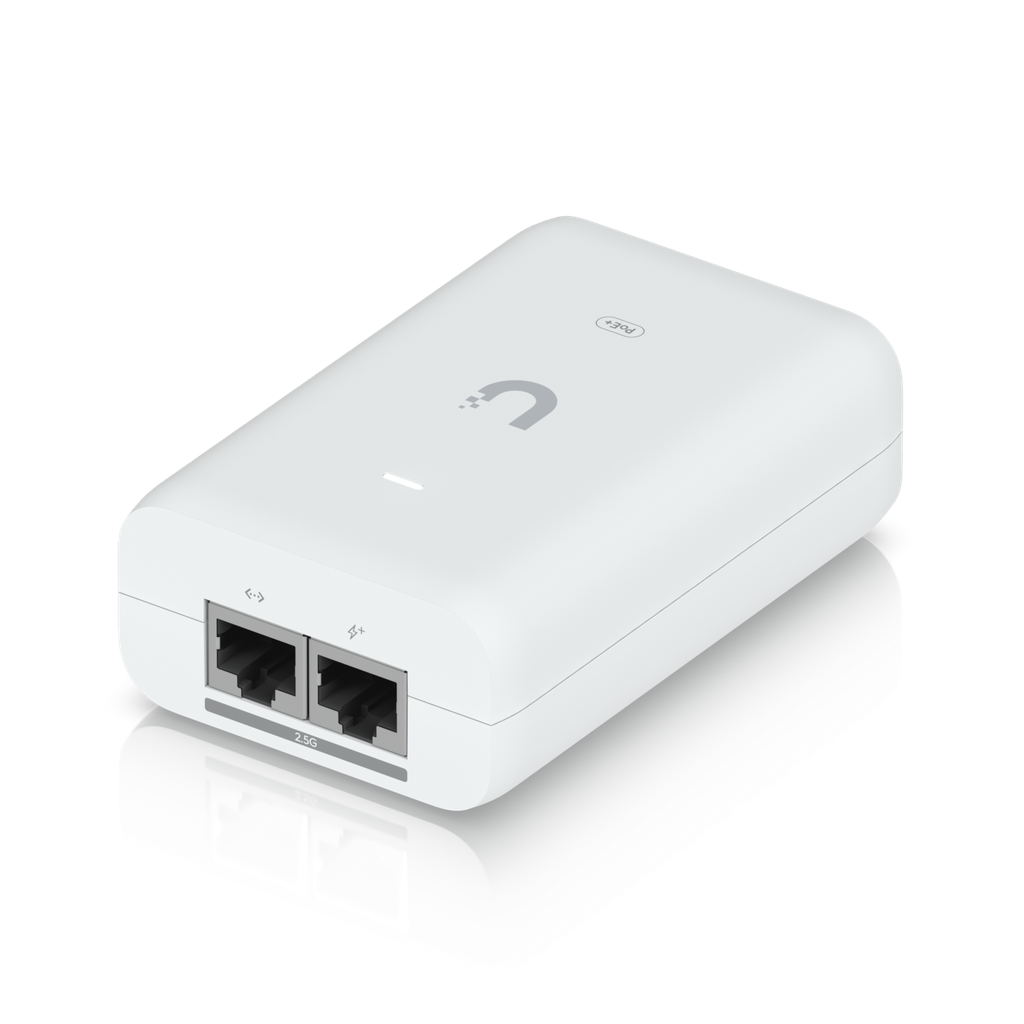

Ubiquiti UACC-PoE+-2.5G U-POE Plus PoE Injector 802.3at Supported PoE 30W 2.5G

https://streakwave.com.au/web/image/product.template/22799/image_1920?unique=074e5a1

Product Code: UACC-PoE+-2.5G

41.80 incl. GST 41.800000000000004 AUD 41.80

36.00


    This combination does not exist.

    Add to Cart Buy Now

    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.


    Share this product:
    Ubiquiti UACC-PoE+-2.5G U-POE Plus PoE Injector 802.3at Supported PoE 30W 2.5G


    Ubiquiti POE adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

    Delivers up to 30W of PoE+

    Surge, peak pulse, and overcurrent protection

    Contains RJ45 data input, AC cable with earth ground, and PoE+ output

    LED indicator for status monitoring

    Technical Specifications
    Overview
    Dimensions
    93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
    Weight
    156 g (5.5 oz)
    Output Voltage
    48V DC @ 0.65A
    Rated Voltage
    100—240V AC @ 50/60Hz
    LAN Activity Indicator
    No
    Gigabit LAN Port
    Yes
    Remote Reset Capability
    No
    Reset Button
    No
    2-pair Powering
    Pins 4, 5 (+) and 7, 8 (-)
    Clamping Protection
    11V Data, 60V power
    Data In / PoE
    RJ45 Shielded Socket
    Input Current
    0.75A Max.
    Inrush Current
    <150A peak @ 230V AC
    Efficiency
    >87%
    Switching Frequency
    65 kHz Max.
    Output Ripple
    1% Max.
    Line Regulation
    ≤ 1%
    Load Regulation
    ≤ 3%
    Max. Surge Discharge
    1500A (8/20 μs) power
    Peak Pulse Current
    36A (10/1000 μs) data
    Response Time
    <1 ns
    Shunt Capacitance
    <5 pF data
    Surge Protection
    Difference and common mode
    Ambient Storage Temperature
    -30 to 70°C (-22 to 158° F)
    Ambient Operating Temperature
    0 to 40° C (32 to 104° F)
    Ambient Operating Humidity
    10 to 95% noncondensing
    NDAA Compliant
    Yes
    Certifications
    CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
