Ubiquiti UA-Intercom Indoor/Outdoor Intercom Terminal
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:

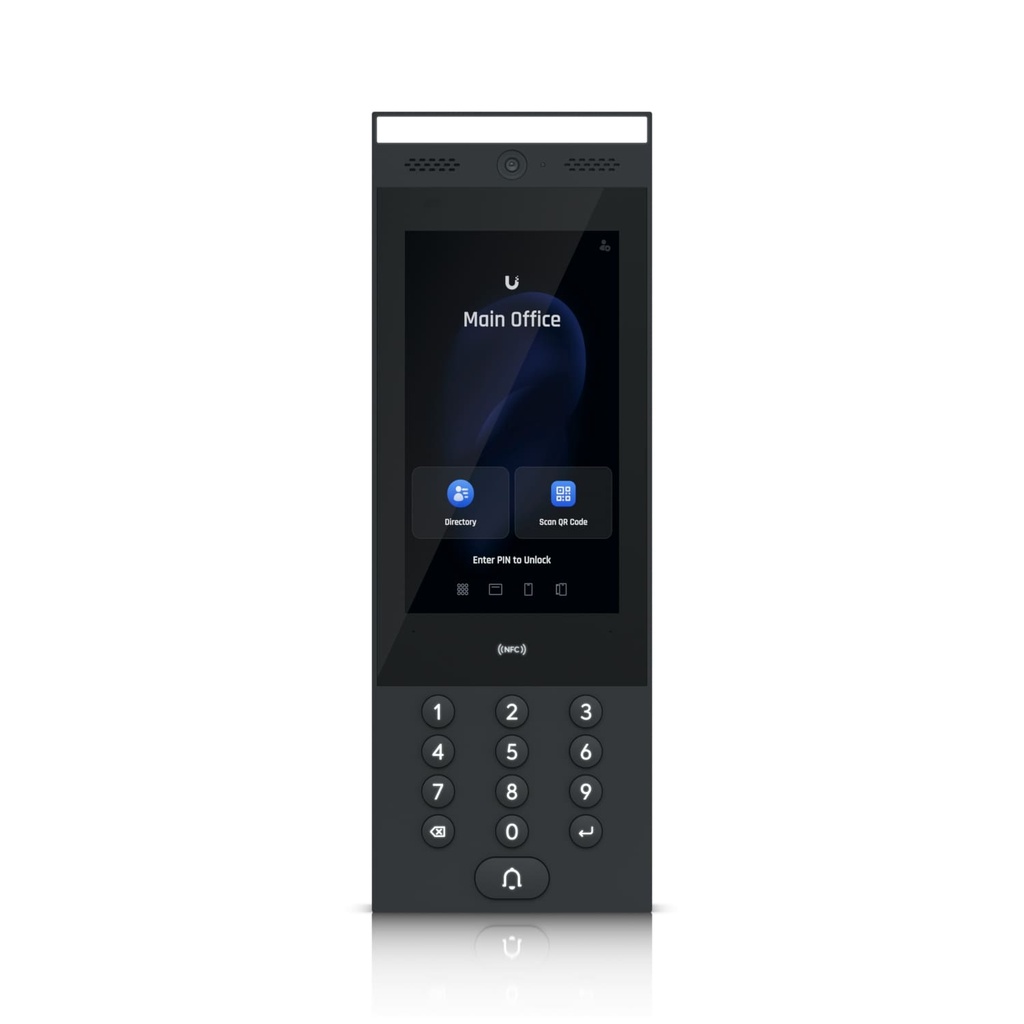

Ubiquiti Unifi UA-Intercom Indoor/Outdoor Intercom Terminal
Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
Directory and doorbell to request entry
Pairs with multiple UniFi Intercom Viewers for remote access control
Connects to UniFi Access Hub series using PoE
Weatherproof (outdoor exposed -30 to 60° C)
| Mechanical | |
|---|---|
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle mount, flush mount (Optional) Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor ALS sensor |
| Camera | 3264 x 2448, 8 MP H: 79.4°, V: 97.5°, D: 118.2° |
| Display | 177 mm (7") diagonal |
| Resolution | 1024 x 600 (16:9) |
| Display luminance | Max. 1000 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system funtions normally) (1) LED floodlight (13) Keypad LED backlight |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Ambient operating temperature | Device: -30 to 60° C (-22 to 140° F) Display:* -25 to 60° C (-13 to 140° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 1.22.17 and later |
