Ubiquiti UA-G3-SK UniFi Access Single Door Starter Kit

https://citytechnology.com.au/web/image/product.template/22401/image_1920?unique=49095e2

Product Code: UA-G3-SK

$ 518.65 incl. GST 518.65 AUD $ 518.65

$ 449.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

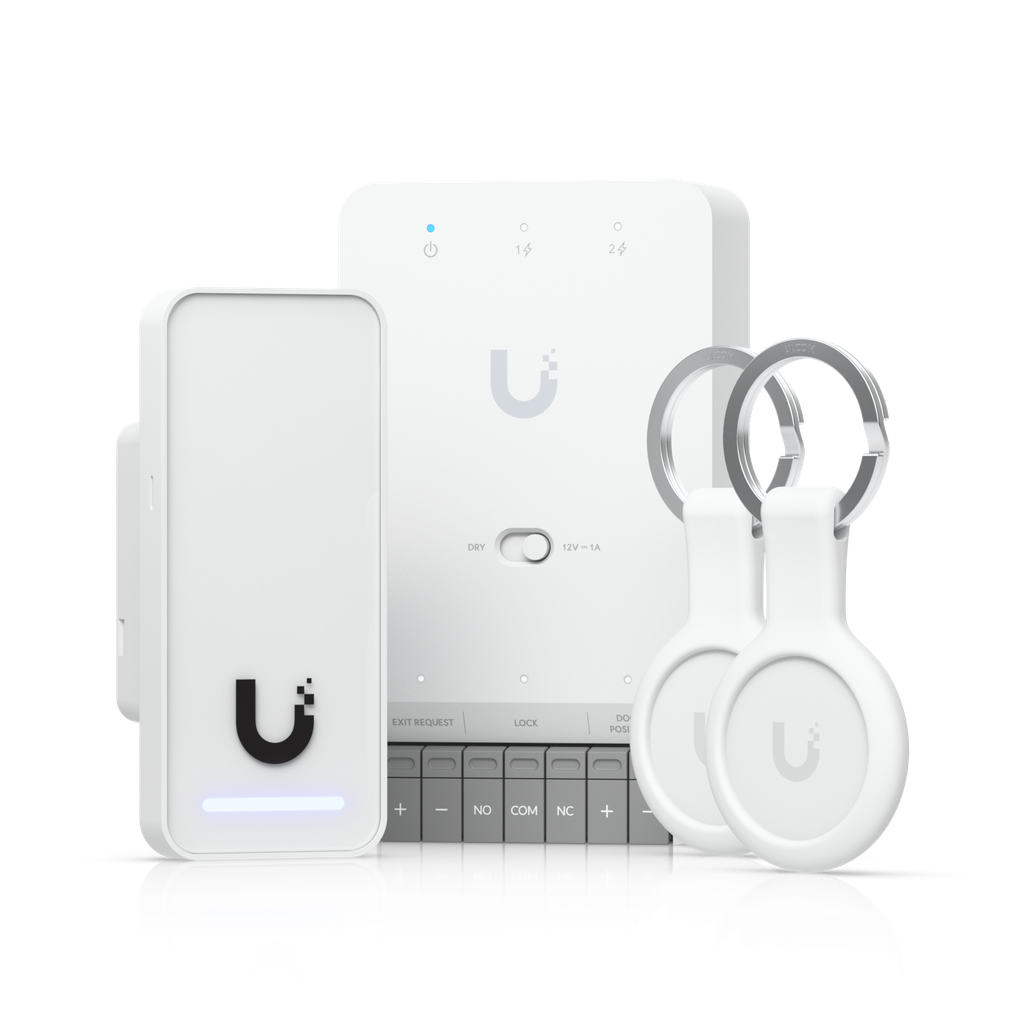

    Ubiquiti UA-G3-SK UniFi Access Single Door Starter Kit

    UniFi Access G3 Starter Kit

    UA-G3-SK

    A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.

    (1) Door Hub Mini

    (1) G3 Reader

    (2) Pocket Keyfobs

    Technical Specifications
    UA-Hub-Door-Mini
    Mechanical
    Dimensions113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
    Weight190 g (6.7 oz)
    Enclosure materialPolycarbonate, metal
    Hardware
    Networking interface(3) GbE RJ45 ports
    Power methodPoE++
    Max. power consumptionWithout PoE output: 19W
    With PoE output: 50W
    PoE input50V DC, 1A
    PoE output(2) PoE ports, total 31W
    LEDsWhite/blue (Learn more)
    Button(1) Factory-reset
    (1) Dry/Wet switch
    Digital inputRequest to exit/door position sensor
    Output relayDry: 30V DC, 1A
    Wet: 12V DC, 1A
    Recommend max. cable length
    18 AWG
    UACC-Cable-DoorLockRelay length    		20
    AWG length    		22
    AWG length    		24
    AWG length
    UA-Lock-Electric
    (400mA)    		100 m
    (328 ft)    		66 m
    (217 ft)    		42 m
    (138 ft)    		25 m
    (82 ft)
    UA-Lock-Magnetic-270kg
    (800mA)    		46 m
    (151 ft)    		30 m
    (98 ft)    		20 m
    (66 ft)    		12 m
    (29 ft)
    UA-Lock-Magnetic-540kg
    (500mA)    		80 m
    (262 ft)    		51 m
    (167 ft)    		32 m
    (105 ft)    		20 m
    (66 ft)
    Other locks
    (1A)    		36 m
    (118 ft)    		24 m
    (79 ft)    		15 m
    (49 ft)    		9 m
    (30 ft)
    PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    Operating environmentIndoor use only
    Ambient operating temperature-10 to 40° C (14 to 104° F)
    Ambient operating humidity5 to 90% noncondensing
    Software informationThe software version of a product can be checked at https://unifi.ui.com
    CertificationsCE, FCC, IC
    Document number, and issue date and/or revision levelUA-Hub-Door-Mini, V01
    Software
    Management applicationUniFi Access: Version 2.5.2 and later
    UA-G3
    Mechanical
    Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
    Weight82 g (2.9 oz)
    Enclosure materialPolycarbonate, glass
    Mounting materialAluminum alloy
    MountingIn wall, gang box
    WeatherproofingIP55
    Hardware
    Networking interface(1) 10/100 MbE RJ45 port
    ConnectivityBLE 4.1
    NFC
    Power methodPoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Supported voltage range48V DC
    Max. power consumption5W
    ESD/EMP protectionAir: ±15kV, contact: ±8kV
    SensorsProximity sensor
    Speaker(1) 8 ohm, 0.7W
    LEDsR/G/B/W (Learn more)
    Button(1) Factory-reset
    NFC frequency13.56 MHz
    NFC read range< 30 mm
    NFC technologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
    Operating environmentOutdoor use
    Ambient operating temperature-30 to 45° C (-22 to 113° F)
    Ambient operating humidity5 to 90% noncondensing
    Software informationThe software version of a product can be checked at https://unifi.ui.com
    UL 294 levelDestructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    CAN/ULC-60839-11-1 GradeGrade assignment: I
    CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    Document number, and issue date and/or revision levelUA-G3, V01
    Software
    Management applicationUniFi Access: Version 3.0.15 and later
    UA-Pocket
    Mechanical
    Dimensions84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
    Weight16 g (0.56 oz)
    Enclosure materialPolycarbonate, stainless steel, silicone rubber
    WeatherproofingIP54
    Hardware
    NFC frequency13.56 MHz
    NFC technologyISO/IEC 14443 Type A
    MIFARE DESFire EV3 4K
    UniFi Access Proprietary Security Protocol
    Ambient operating temperature-10 to 45° C (14 to 113° F)
    Ambient operating humidity10 to 90% noncondensing
    CertificationCE
