  3. Ubiquiti UA-G3-SK-Pro UniFi Access Single Door Starter Kit Professional

Ubiquiti UA-G3-SK-Pro UniFi Access Single Door Starter Kit Professional

https://citytechnology.com.au/web/image/product.template/22400/image_1920?unique=b236981

Product Code: UA-G3-SK-Pro

$ 1,049.95 incl. GST 1049.95 AUD $ 1,049.95

$ 909.00

    This combination does not exist.

    Add to Cart Buy Now
    Ubiquiti
    Ubiquiti

    Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.

    Share this product:

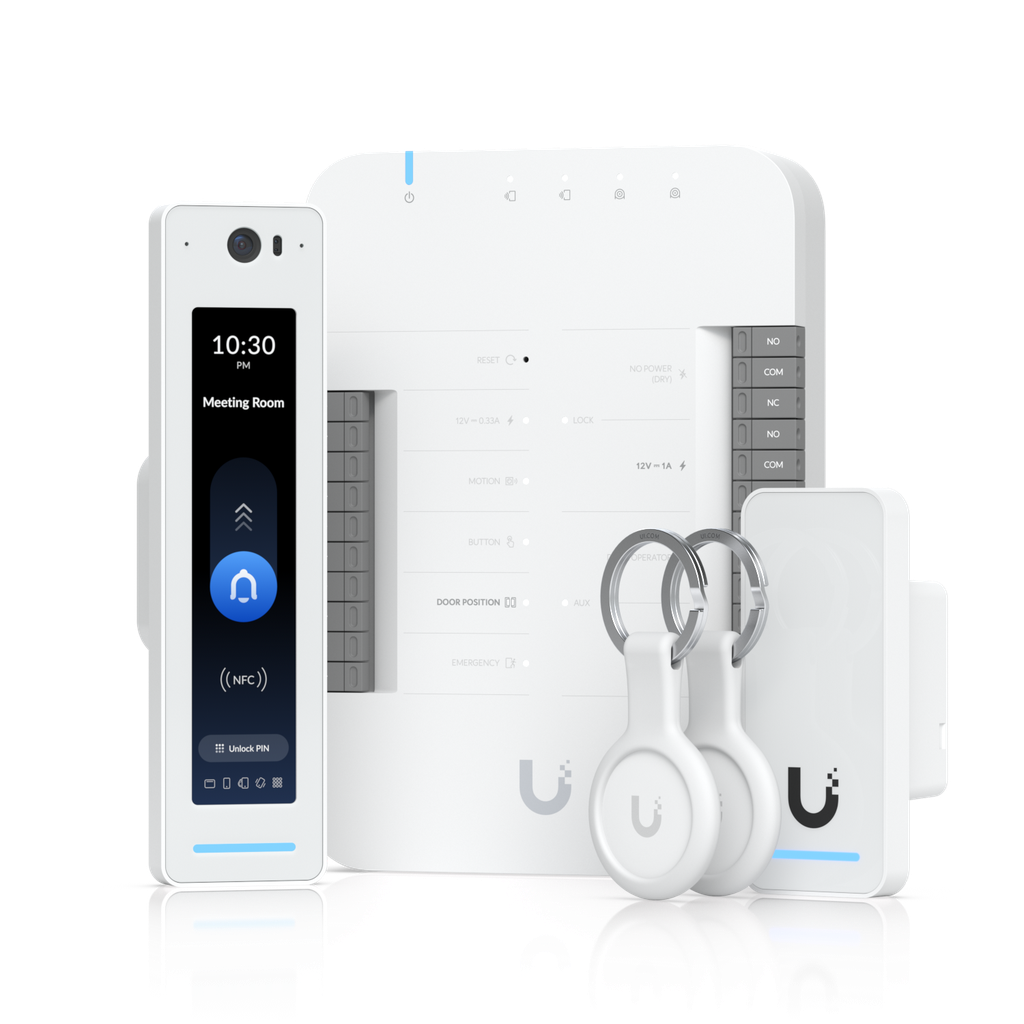

    Ubiquiti UA-G3-SK-Pro UniFi Access Single Door Starter Kit Professional

    UniFi Access G3 Pro Starter Kit Professional

    Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.

    (1) Door Hub

    (1) G3 Reader Pro

    (1) G3 Reader for door exit, or entry for an additional door (second Hub required)

    (2) Pocket Keyfobs

    Technical Specifications
    UA-Hub-Door
    Mechanical
    Dimensions174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
    Weight363 g (12.8 oz)
    Enclosure materialPolycarbonate
    Mounting materialPolycarbonate
    Hardware
    Networking interface(5) 10/100/1000 Base-T
    Power methodPoE++
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Max. power consumptionWithout PoE output: 30W
    With PoE output: 50W
    PoE input50V DC, 1A
    PoE outputPoE passthrough, (4) PoE, 50V DC, total 20W
    LEDsWhite/blue (Learn more)
    Button(1) Factory-reset
    Digital inputRequest to exit/request to enter/remote release/door position sensor
    Dry output relayLock: 30V DC, 1A
    Aux: 30V DC, 1A
    Powered output relayLock: 12V DC, 1A
    Aux: 12V DC, 0.33A
    12V DC, 0.33A
    Operating environmentIndoor use only
    Ambient operating temperature0 to 40° C (32 to 104° F)
    Ambient operating humidity5 to 95% noncondensing
    UL 294 levelDestructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    CAN/ULC-60839-11-1 GradeGrade assignment: 1
    CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    Wiring Information
    Wiring gauge requirements (AWG)
    Total length to deviceOutput load current at 12V DC
    100mA250mA500mA1A
    6.1 m (20 ft)22222218
    15.2 m (50 ft)22222218
    30.5 m (100 ft)22221818

    UACC-Cable-DoorLockRelay (18 AWG) is recommended.
    PoE cabling requirementsThe minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    UA-G3-Pro
    Mechanical
    Dimensions160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
    Weight136 g (4.8 oz)
    Enclosure materialPolycarbonate, glass
    Mount materialAluminum alloy
    MountingWall mount (Included)
    Gangbox mount (Included)
    Angle mount (Optional)
    Junction box (Optional)
    WeatherproofingIP55
    Hardware
    Networking interface(1) GbE RJ45 port
    ConnectivityBLE 4.2
    NFC
    Power methodPoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Supported voltage range48V DC
    Max. power consumption6W
    ESD/EMP protectionAir: ±15kV, contact: ±8kV
    SensorProximity sensor
    Camera view angleH: 96.67°, V: 123.15°, D: 153.11°
    MicrophoneYes
    Speaker(1) 4 ohm, 1.5W
    LEDsR/G/B/W/Amber (Learn more)
    Button(1) Factory-reset
    NFC frequency13.56 MHz
    NFC read range< 30 mm
    NFC technologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
    Operating environmentOutdoor use
    Ambient operating temperatureDevice: -30 to 45° C (-22 to 113° F)
    Display:* -10 to 45° C (14 to 113° F)
    *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
    Ambient operating humidity5 to 90% noncondensing
    Software informationThe software version of a product can be checked at https://unifi.ui.com
    UL 294 levelDestructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    CAN/ULC-60839-11-1 GradeGrade assignment: I
    CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    LED
    SystemSteady blue: Adopted/device is ready
    Steady white: Pending adoption
    Blinking white/blue: Upgrading firmware
    Strobing red: Emergency lockdown
    Steady orange: Display over or under operation temperature
    UA-G3
    Mechanical
    Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
    Weight82 g (2.9 oz)
    Enclosure materialPolycarbonate, glass
    Mounting materialAluminum alloy
    MountingIn wall, gang box
    WeatherproofingIP55
    Hardware
    Networking interface(1) 10/100 MbE RJ45 port
    ConnectivityBLE 4.1
    NFC
    Power methodPoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
    Supported voltage range48V DC
    Max. power consumption5W
    ESD/EMP protectionAir: ±15kV, contact: ±8kV
    SensorsProximity sensor
    Speaker(1) 8 ohm, 0.7W
    LEDsR/G/B/W (Learn more)
    Button(1) Factory-reset
    NFC frequency13.56 MHz
    NFC read range< 30 mm
    NFC technologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
    Operating environmentOutdoor use
    Ambient operating temperature-30 to 45° C (-22 to 113° F)
    Ambient operating humidity5 to 90% noncondensing
    Software informationThe software version of a product can be checked at https://unifi.ui.com
    UL 294 levelDestructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
    UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.
    The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
    PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
    The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
    CAN/ULC-60839-11-1 GradeGrade assignment: I
    CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    UA-Pocket
    Mechanical
    Dimensions84 x 39 x 7.4 mm (3.3 x 1.5 x 0.3")
    Weight16 g (0.56 oz)
    Enclosure materialPolycarbonate, stainless steel, silicone rubber
    WeatherproofingIP54
    Hardware
    NFC frequency13.56 MHz
    NFC technologyISO/IEC 14443 Type A
    MIFARE DESFire EV3 4K
    UniFi Access Proprietary Security Protocol
    Ambient operating temperature-10 to 45° C (14 to 113° F)
    Ambient operating humidity10 to 90% noncondensing
    CertificationCE
