Ubiquiti UA-G3-SK-Elevator UniFi G3 Elevator Starter Kit

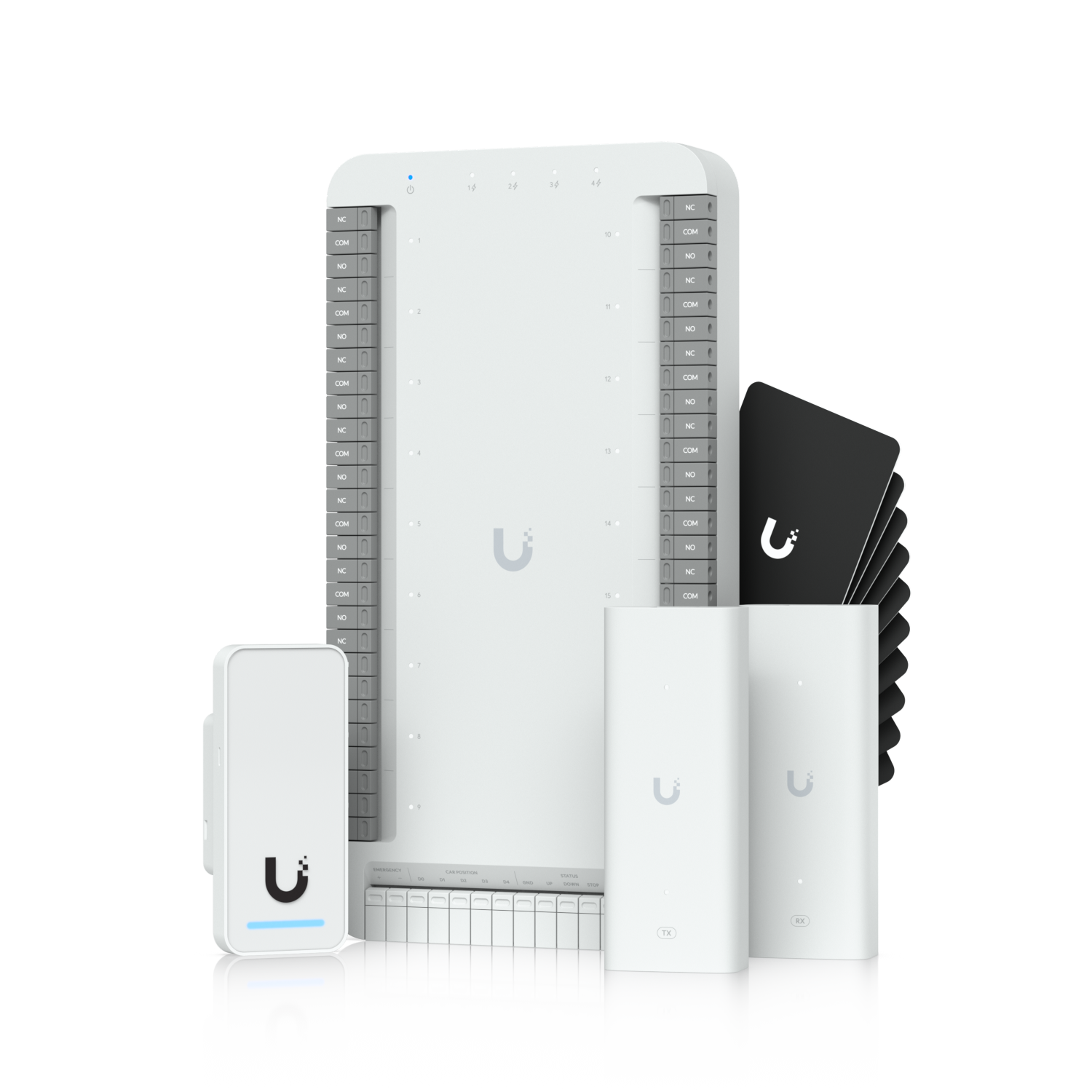

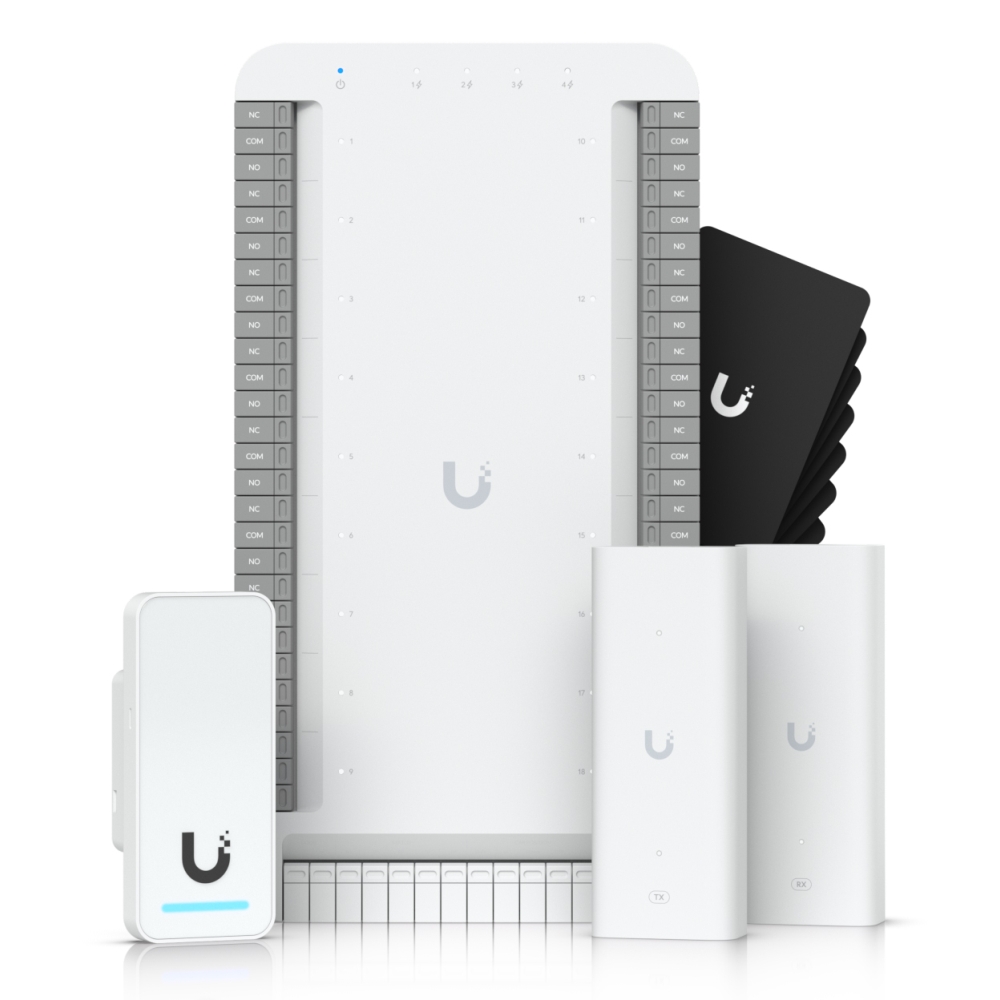

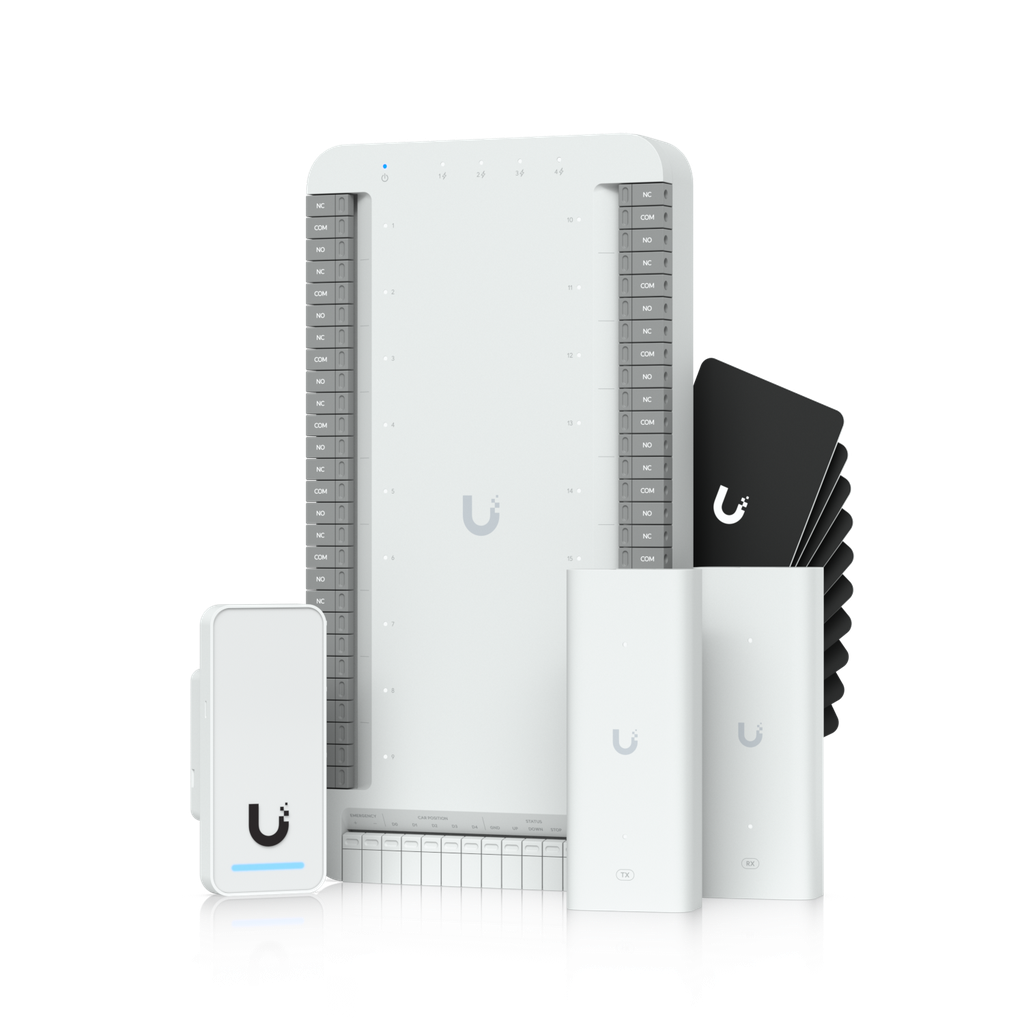

The UA-G3-SK-Elevator is a complete UniFi Access elevator control kit that connects in-elevator readers over PoE, authorises floor selection and supports up to 18 floors. It includes an Elevator Hub, G3 Reader, two 2-wire PoE extenders and 10 Access Cards.
Key features
- Controls authorised elevator floor selection for up to 18 floors through UniFi Access.
- Supports up to 6,000 users and includes 10 free one-year Touch Passes.
- Elevator Hub provides 18 relay outputs plus emergency, car-position, car-status and door-status digital inputs.
- PoE++ powered hub with four PoE+ outputs and up to 45 W aggregate PoE output.
- G3 Reader supports NFC cards and keyfobs, Touch Pass, Apple and Google Wallet, mobile unlock and handwave request to exit.
- Includes one UACC-Extender-2Wire-PoE transmitter/receiver pair (two extenders) for carrying Ethernet and PoE over existing two-wire cabling.
Ideal applications
- Commercial and multi-tenant elevator access control.
- Floor-restricted access for offices, apartments and secure facilities.
- Elevator modernisation where existing two-wire cabling can be reused for reader connectivity.
In the box
- 1 × Elevator Hub.
- 1 × G3 Reader.
- 2 × 2-wire PoE extenders.
- 10 × UniFi Access Cards.
Technical specifications

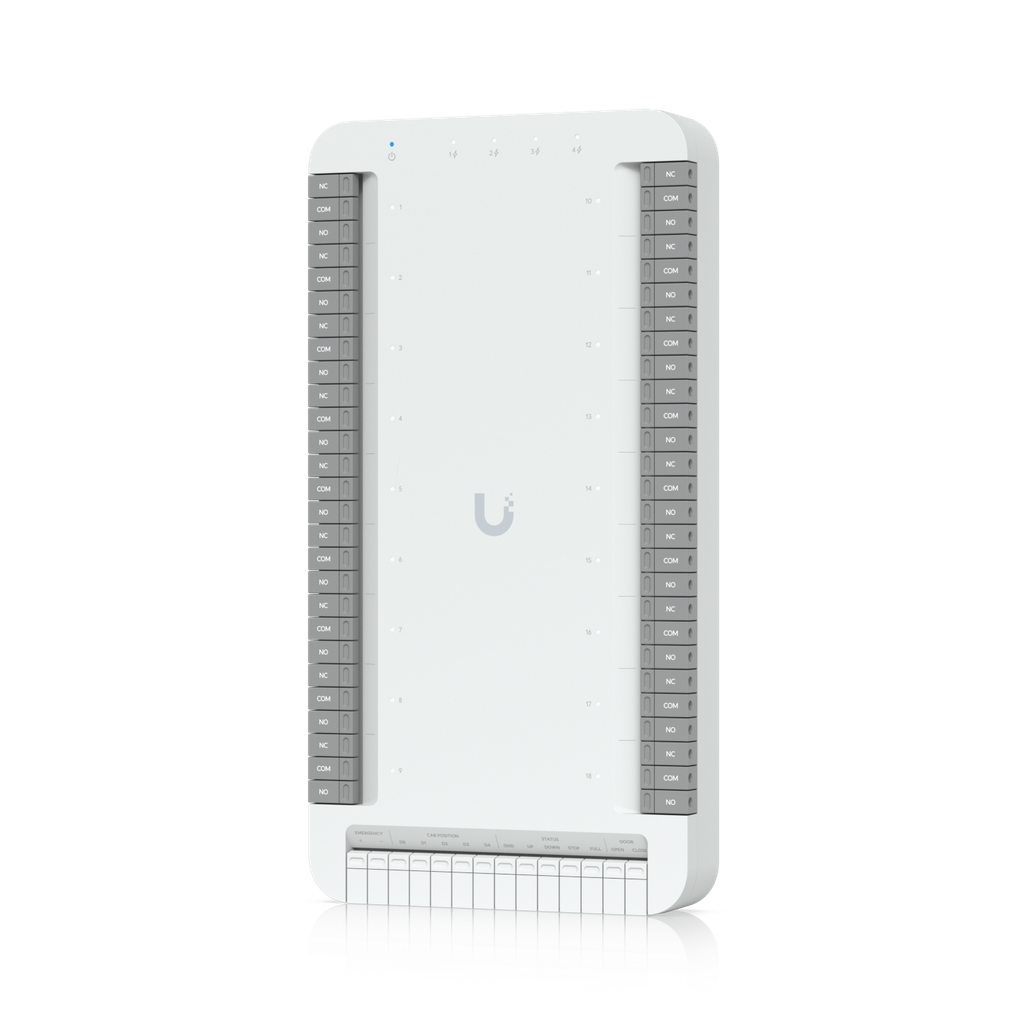

Elevator Hub
- Dimensions: 129.3 × 244.7 × 33.6 mm.
- Weight: 537 g.
- Networking: Four 10/100/1000 Base-T interfaces plus one 10/100/1000 Base-T management interface.
- Power: PoE++ input at 50 V DC, 1.2 A; four PoE+ outputs at 50 V DC, up to 30 W per port and 45 W aggregate; 7 W maximum without PoE output.
- I/O: 18 relays rated 30 V DC/2 A; emergency, 5-bit car-position, car-status and door-status inputs.
- Environment: -10 to 40 °C; 5 to 95% noncondensing humidity.

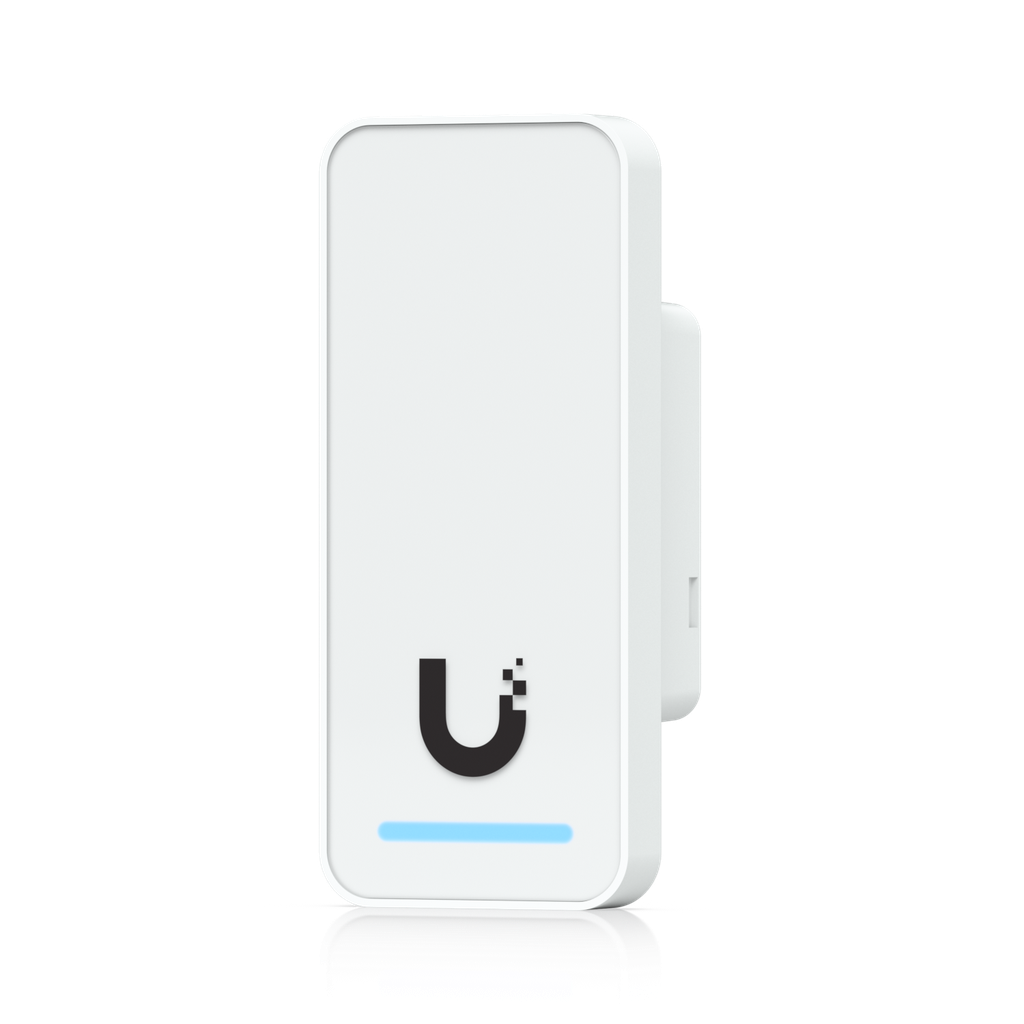

G3 Reader
- Dimensions: 93 × 40 × 36.5 mm.
- Weight: 82 g.

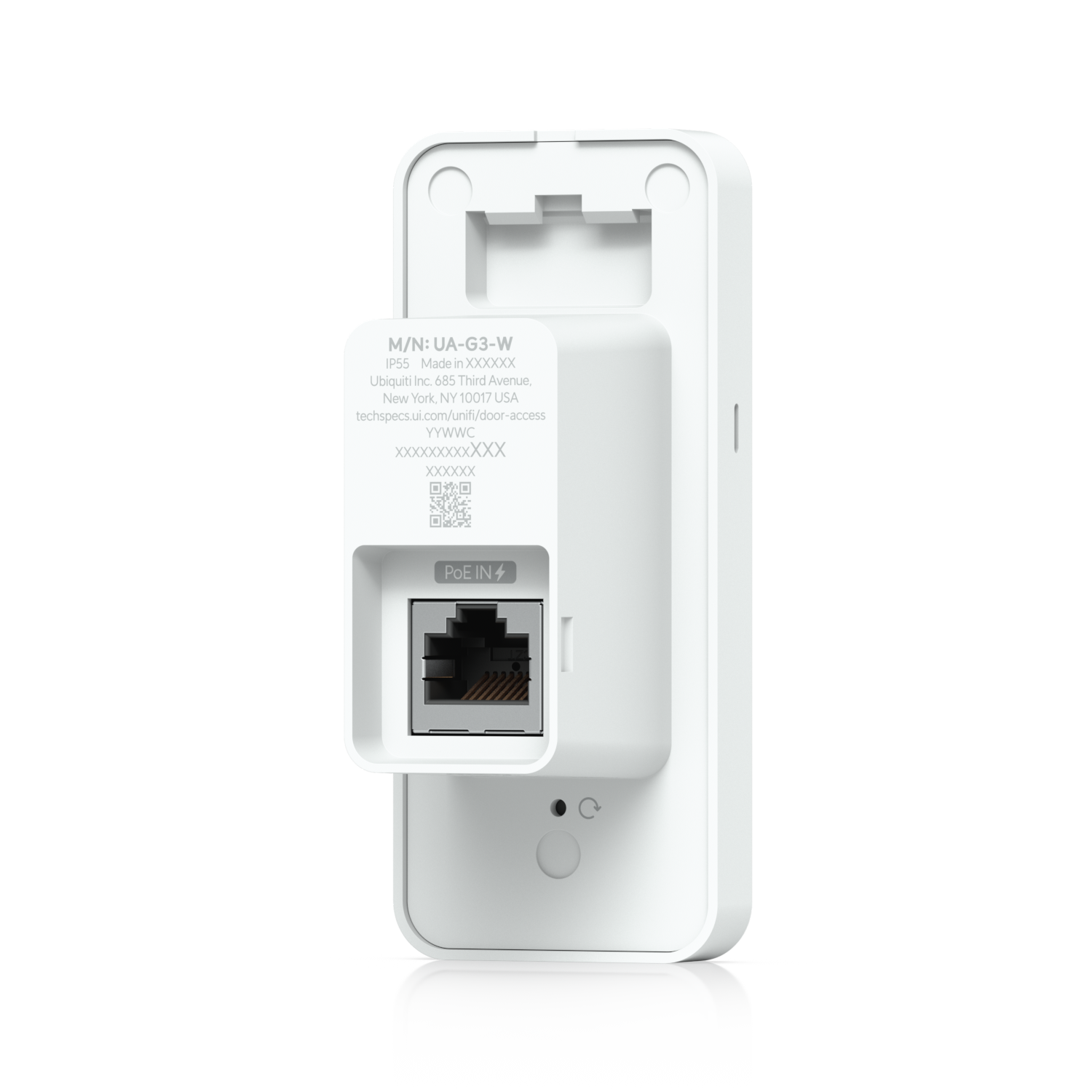

- Networking/connectivity: One 10/100 MbE RJ45 port, BLE 4.1 and 13.56 MHz NFC.
- Power: 48 V DC PoE; 5 W maximum.
- Mounting and protection: In-wall or included gang-box mount; IP55 for indoor and outdoor use.
- Environment: -30 to 45 °C; 5 to 90% noncondensing humidity.
2-wire PoE extenders
- Model: UACC-Extender-2Wire-PoE-Tx/Rx.
- Dimensions: 40 × 105 × 25 mm each.
- Weight: 77 g transmitter; 79 g receiver.
- Interfaces: 10/100 MbE and HomePlug AV; PoE++ input and PoE+ output.
- Power consumption: 3 W maximum without PoE output.
Access Cards
- Dimensions: 85.6 × 53.98 × 0.84 mm.
- Weight: 5 g each.
- Format: ISO 7810 ID-1 with 13.56 MHz MIFARE DESFire and UniFi Access security protocol.
Certifications: CE, FCC, IC and applicable UL/CSA access-control and electrical safety certifications; NDAA compliant.
Why choose UA-G3-SK-Elevator?
The UA-G3-SK-Elevator combines elevator relays, status monitoring, mobile and card credentials, and two-wire PoE connectivity in one UniFi Access-managed kit, simplifying secure floor access without a separate standalone credential platform.
