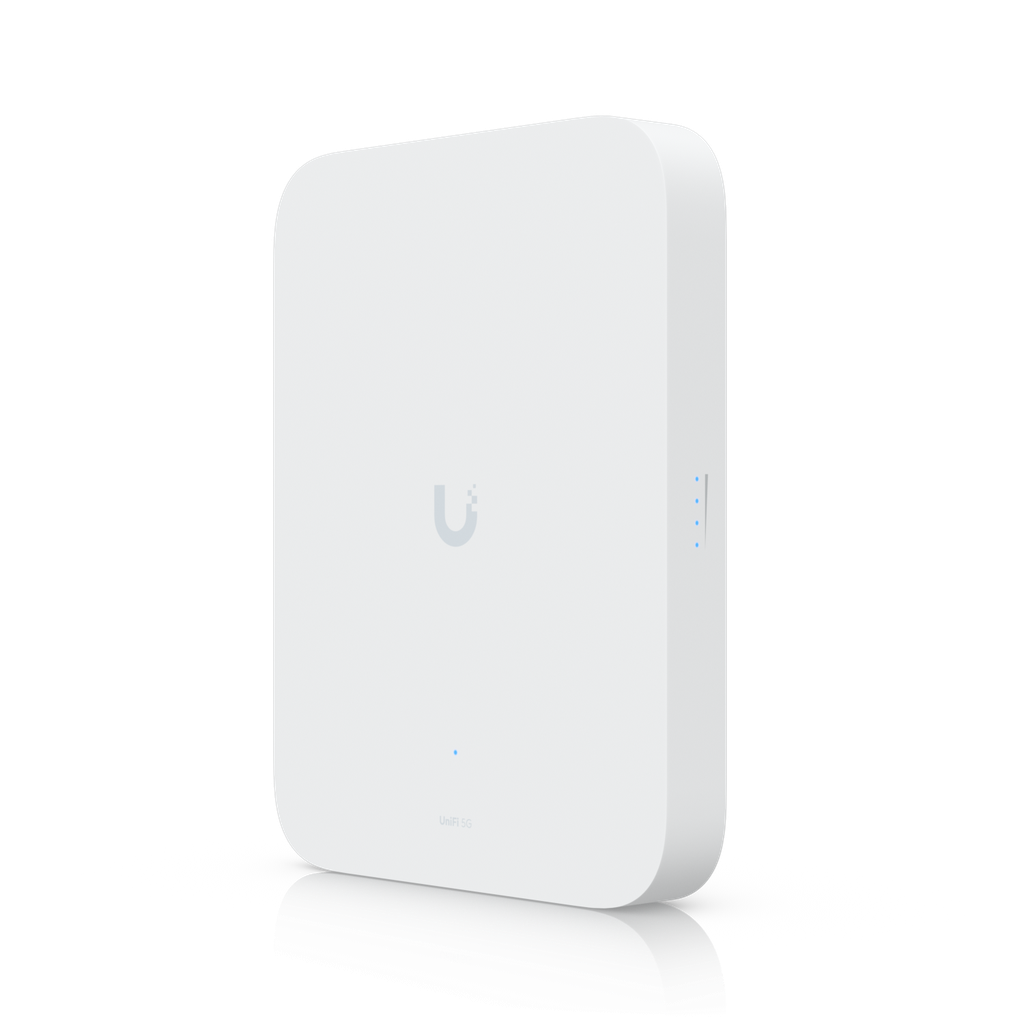

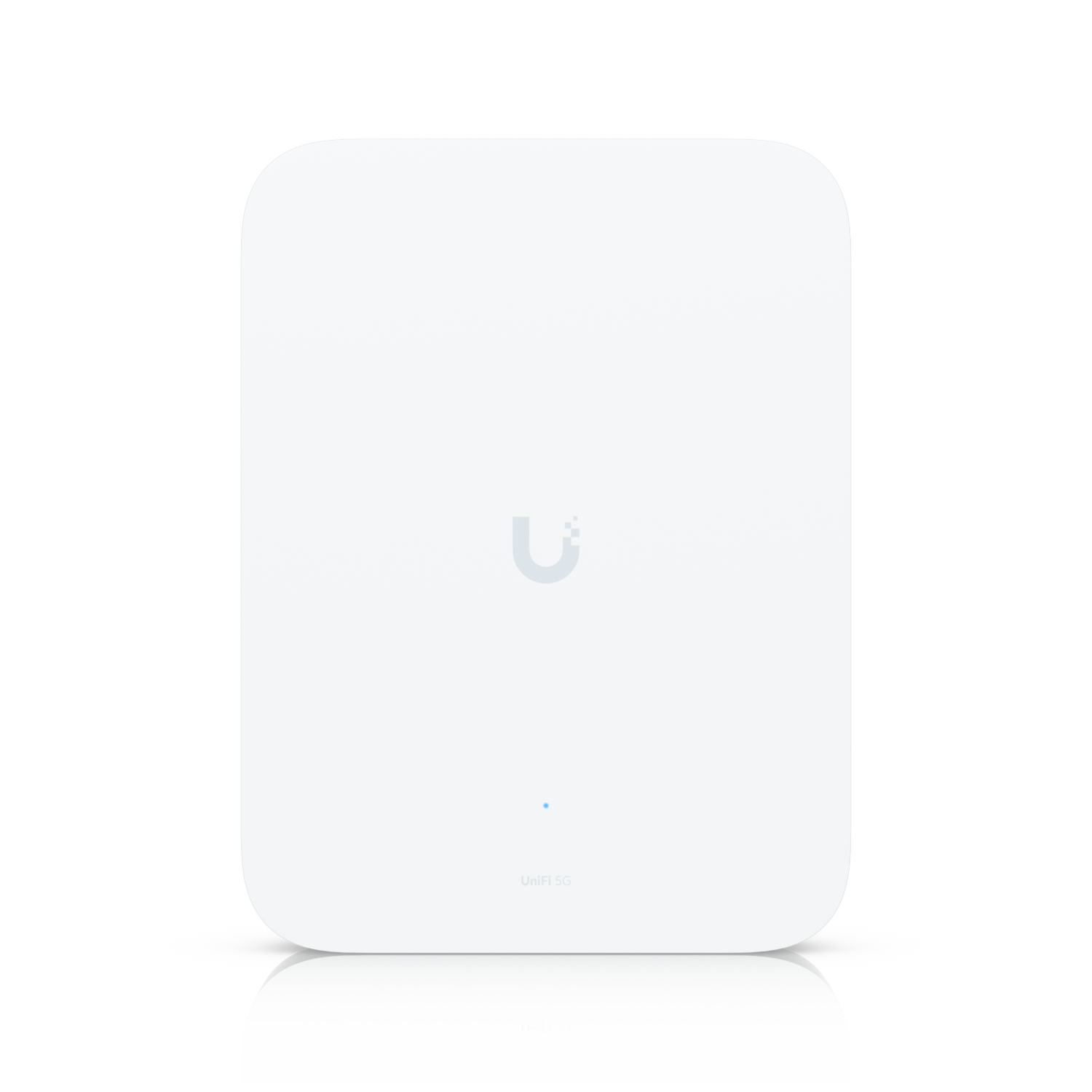

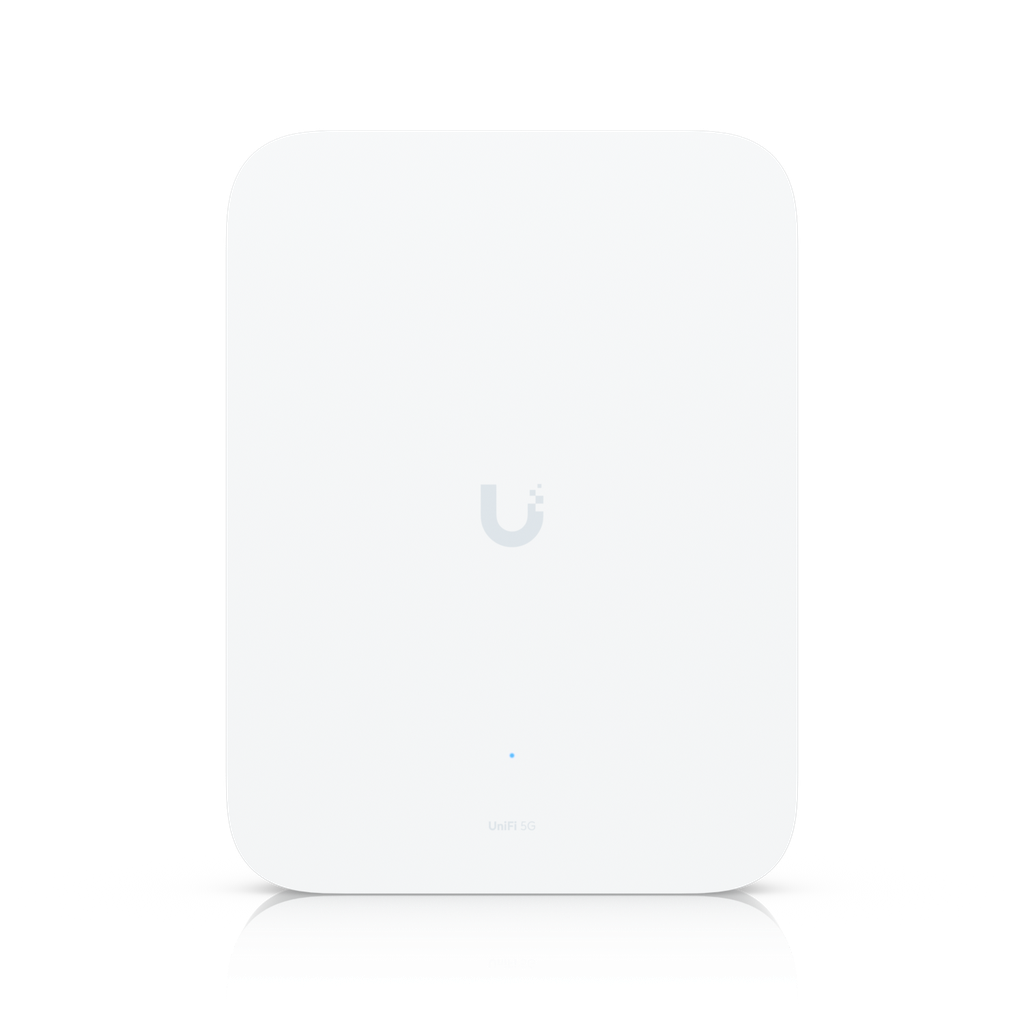

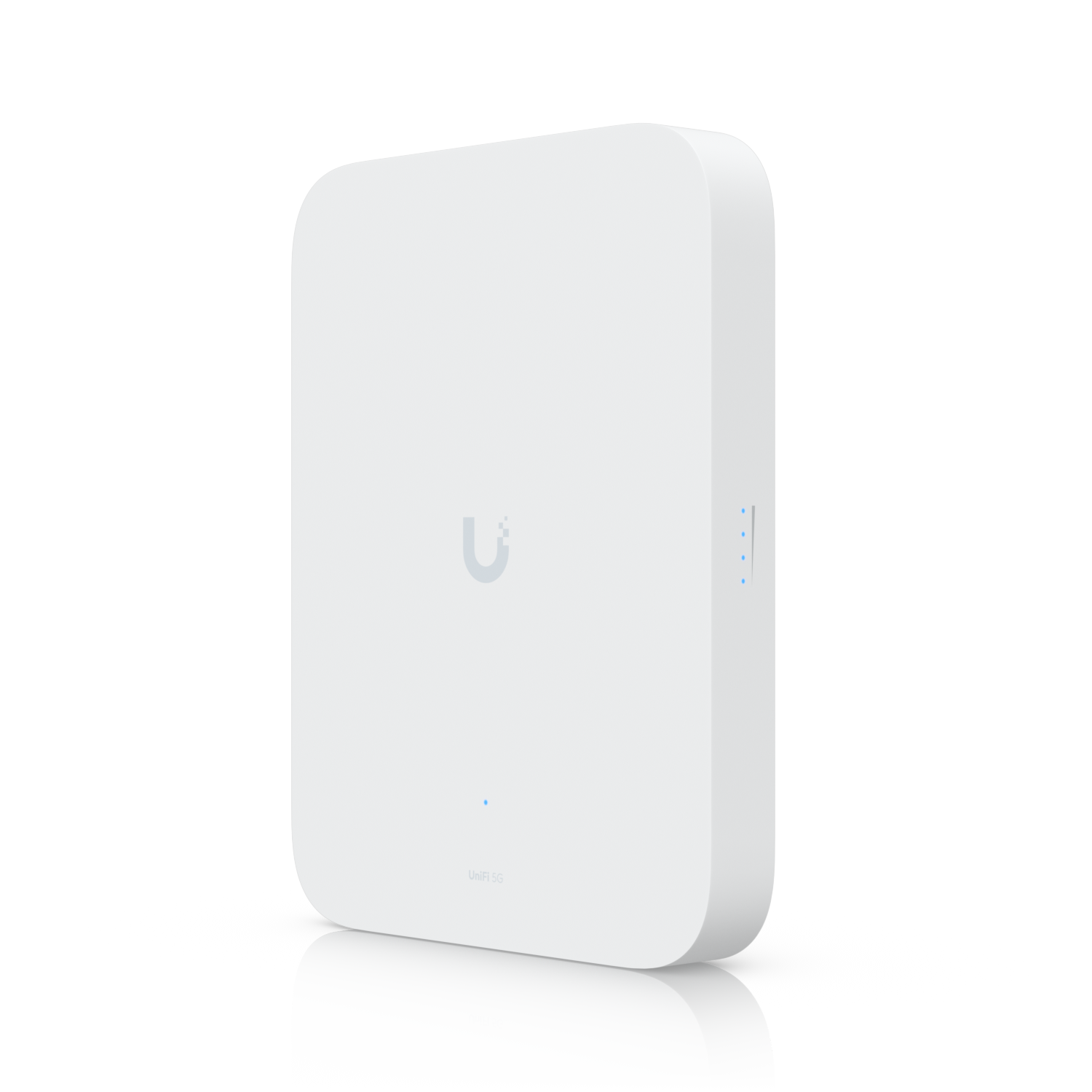

Ubiquiti U5G-Max-Outdoor 5G 3.4Gbps UniFi 5G Max Outdoor Dual SIM/eSIM
Ubiquiti
Ubiquiti Inc offers a broad and expanding portfolio of networking products and solutions for service providers and enterprises. Their service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Their enterprise product platforms provide wireless LAN infrastructure, video surveillance products, switching and routing solutions and machine-to-machine communication components. Ubiquiti Networks believes that their products are highly differentiated due to proprietary software protocol innovation, firmware expertise, and hardware design capabilities.
Share this product:
Ubiquiti U5G-Max-Outdoor 5G 3.4Gbps UniFi 5G Max Outdoor Dual SIM/eSIM
Ubiquiti Unifi U5G full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM, and dual SIM for seamless failover.
Technical Specifications
Overview
Dimensions
Device: 220 x 165 x 66.9 mm
(8.7 x 6.5 x 2.6")
With mount: 220 x 165 x 122 mm
(8.7 x 6.5 x 4.8")
Networking Interface
(1) 2.5 GbE RJ45 port
5G NR and LTE radio
SIM
(1) Nano SIM
(1) Nano-SIM or eSIM
PoE Interface
(1) PoE input
Mounting
Pole mount, wall mount (Included)
Weatherproofing
IPX6
IP67 (With cable-gland door kit)
Mechanical
Weight
Device: 1.2 kg (2.6 lb)
Mount: 130 g (4.6 oz)
Enclosure Material
Aluminum-alloy, UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate
Pole Mount Diameter
1–2.5" (25–63.5 mm) on pipe outer diameter
Wind Loading
91N at 200 km/h (20.45 lbf at 125 mph)
Hardware
Management
Ethernet
5G NR
Category
5G NR
Frequency Bands
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Max. TX Power
HPUE power class 2: 26 dBm
4G LTE
Frequency Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power
HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands
B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Antennas
Type
(6) Embedded cellular antennas, including
(2) high-gain for downlink: peak 9 dBi, 85°x85°
Max. Power Consumption
14.5W
Power Method
PoE
Buttons
(1) Factory-reset
LEDs
Yes
Ambient Operating Temperature
-40 to 65 °C (-40 to 149 °F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
