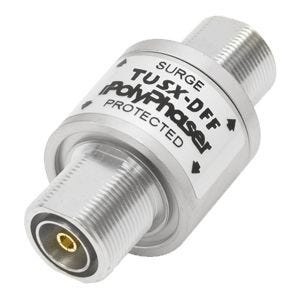

PolyPhaser TUSX-DFF Low PIM, dc short coaxial protector
PolyPhaser
PolyPhaser leads the market with its patented RF protection solutions, specifically supporting communications systems. Based on its extensive experience with multi-stage surge protection, PolyPhaser continuously expands its product offering to support the needs of advanced applications with technologies such as DC Block, DC Pass and Ultra Low PIM.
Share this product:
PolyPhaser TUSX-DFF Low PIM, dc short coaxial protector
KEY FEATURES:
DC short ultra low PIM, bi-directional operation coaxial RF protector, engineered for high power of combined signal operating between 300 MHz and 1.2 GHz
Features:
Higher maximum surge current rating – 40kA
Superior Surge Performance based on our patented Coil Inductor Design
Bi-Directional Operation – Less product SKU’s to manage
DIN units are PIM rated to support Wireless Carriers Passive Intermodulation requirements.
Specifications for TUSX-DFF
Max Surge Current
40 kA
Frequency Range
300 MHz to 1.2 GHz @-26dB Return Loss
Protected Side Connector
Connector Interface 1
Surge Side Connector
Connector Interface 2
Insertion Loss
<0.1 dB
RF Power
2.5kW
Other Features
combined signal; Weatherproof when installed
