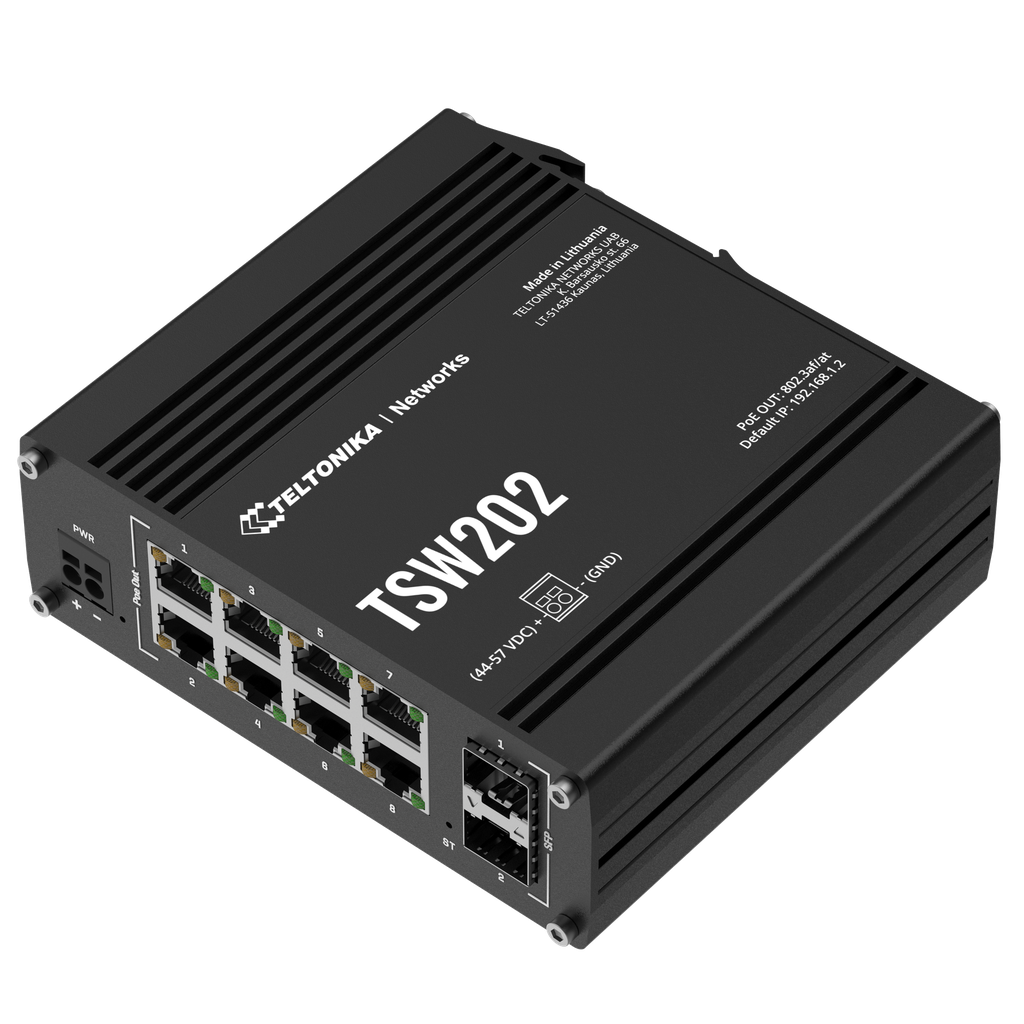

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features PSU not included

Product Code: TSW202

$ 392.70 incl. GST 392.7 AUD $ 392.70

$ 340.00

This combination does not exist.

Teltonika

Teltonika is a global provider of IoT equipment. During Teltonika’s 21 years of R&D, product development and manufacturing of IoT & M2M industrial networking devices, they have created a comprehensive product portfolio for the most challenging Industry 4.0 connectivity applications. Teltonika controls all the stages of their product development life cycle, allowing it to be fast and flexible in reacting to market demands and changes, while offering devices which are secure, reliable, easy to use and market disruptive.

Description
Specifications

Teltonika TSW202 10 Port Industrial Managed PoE+ Layer 2 Switch with 8 Port PoE+ and 2 SFP slots, Layer3 Features (Power Supply Not Included)

ETHERNET

ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

POE OUT

PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
Maximum Ethernet cable length
100 m

SERVICES

EtherNet/IP
Yes
PROFINET (class B)
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

NETWORK

MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

SECURITY

Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block

QOS

QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping

DIAGNOSTICS

Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port

API

Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

SYSTEM CHARACTERISTICS

RAM
128MB, DDR3
FLASH storage
16 MB serial flash

FIRMWARE / CONFIGURATION

WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration

FIRMWARE CUSTOMISATION

Operating system
WitchOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes

POWER

Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W

PHYSICAL INTERFACES

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Reset
Software reset button
Other

1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
610 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

OPERATING ENVIRONMENT

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30

REGULATORY & TYPE APPROVALS

Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE

EMC EMISSIONS & IMMUNITY

Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020

SAFETY

Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
