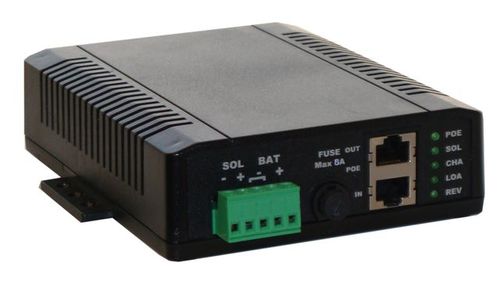

    Tycon Power TP-SCPOE-2448-HP SCPOE dual in/out 48V POE 24V Battery


    Tycon Power Systems TP-SCPOE-2448-HP  POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A at 24V - 36Vmax. The POE input up to 2.6A. They have a built in POE inserter that delivers 48V 0.625A at the POE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, over-voltage, overcharge and over discharge. The built-in over-discharge protection and low self consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries. They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity. Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors. The controllers are externally fused with a standard replaceable fuse.


    Size: 159mm x 118m x 40mm

    Weight: 312 g
