Tycon Power TP-SCPOE-2424-HP 24V in 24V out POE/Solar Charge Control

https://streakwave.com.au/web/image/product.template/1267/image_1920?unique=b39510a

Product Code: TP-SCPOE-2424-HP

245.30 incl. GST 245.3 AUD 245.30

212.22


    This combination does not exist.

    Add to Cart Buy Now

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.


    Share this product:

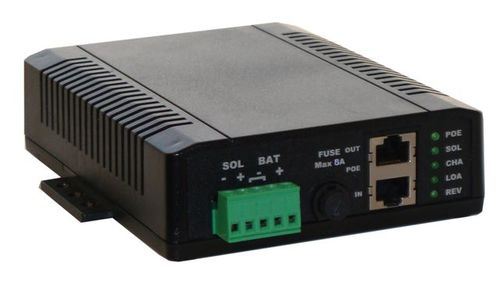

    Tycon Power TP-SCPOE-2424-HP 24V in 24V out POE/Solar Charge Control


    Tycon Power Systems POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.6A. They have a built in POE inserter that delivers 24V 1A at the POE out port. They also have a secondary wire terminal 24V 1.5A output. They have full electronic protections for short circuit, reverse current, over-voltage, overcharge and over discharge.


    The built-in over-discharge protection and low self consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries.

    They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.


    Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.

    The controllers are externally fused with a standard replaceable fuse.


    Size: 159 x 118 x 40mm

    Weight: 312 g
