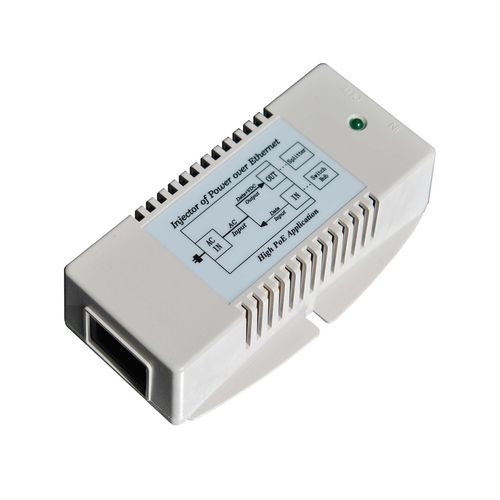

Tycon Power TP-POE-HP-24G 24V 36W High Power Gigabit PoE Power Source


Product Code: TP-POE-HP-24G

154.00 incl. GST 154.0 AUD 154.00


    This combination does not exist.

    Add to Cart Buy Now

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    Share this product:

    Tycon Power TP-POE-HP-24G 24V 36W High Power Gigabit PoE Power Source


    • Remotely Power Equipment thru CAT5 Cable up to 100m

    • Autoranging Switching Power Supply

    • Short Circuit, Over Current and Over Voltage Protection

    • Built in surge protection

    • High Temperature Operation to 60°C

    • Compact size Floor / Desktop / Wall Mount

    • CE/FCC/UL/CB Approved


    • Wireless Access Points and Client Devices

    • IP Phone and Security Camera Systems

    24V 36W Gigabit High Power Passive PoE Power Inserter, Surge Protected

    The TP-POE-HP-24G High PoE Power Source offered by Tycon Power Systems is a quality power injector providing years of reliable operation even in the toughest conditions.

    It accepts Gigabit data-in on a shielded RJ45 Jack and provides Gigabit data-out and power on a shielded RJ45 output jack. They work by supplying power to the remote device on the Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).

    The TP-POE-HP are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 24V DC voltage at 36W on the output. They have various protections for surge, short circuit and overload.

    Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5in)

    Weight: 300g (10.6oz)
