Tycon Power TP-DCDC-4856G-VHP - Gigabit 36-72VDC IN 56VDC OUT 70W Hi Power


Product Code: TP-DCDC-4856G-VHP

Barcode: 1PTP-DCDC-4856G-VHP

253.00 incl. GST 253.0 AUD 253.00


    This combination does not exist.

    Add to Cart Buy Now

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    Share this product:

    Tycon Power TP-DCDC-4856G-VHP - Gigabit 36-72VDC IN 56VDC OUT 70W Hi Power

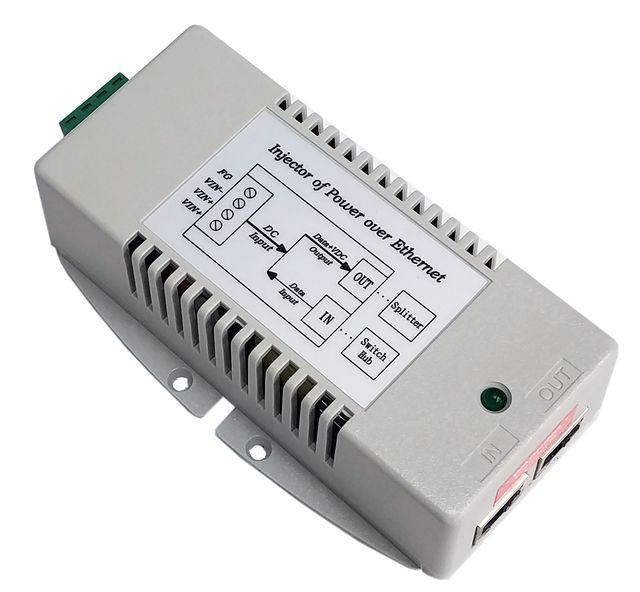

    The Tycon Power TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras.

    The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.

    They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

    Tycon Power TP-DCDC-4856G-VHP Features:

    • Remote power or backup power for Ubiquiti airFiber™ antennas
    • Input Voltage +/- 36-72VDC; Output 56VDC Passive POE
    • Isolated DC input
    • Integrated POE Inserter
    • High Power 70W
    • Short Circuit, Over Current and Over Voltage Protection
    • Industrial Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires

    Dimensions: 125 x 75 x 38mm

    Weight: 255g
