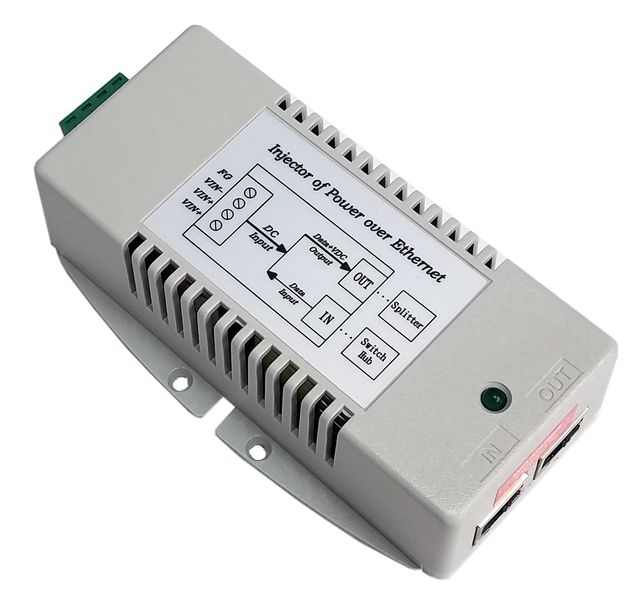

Tycon Power TP-DCDC-2456GD-VHP Gigabit 18-36VDC IN 56VDC OUT 70W Hi Power DC to DC Converter and 802.3at POE inserter


Product Code: TP-DCDC-2456GD-VHP

Barcode: 1PTP-DCDC-2456GD-VHP

310.75 incl. GST 310.75 AUD 310.75


    This combination does not exist.

    Add to Cart Buy Now

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.

    Share this product:

    Tycon Power TP-DCDC-2456GD-VHP Gigabit 18-36VDC IN 56VDC OUT 70W Hi Power DC to DC Converter and 802.3at POE inserter

    Tycon Power  TP-DCDC-2456GD-VHP is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q6032-E, Q6034-E and Q6035-E outdoor PTZ security cameras.

    The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilises pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-2456GD-VHP has separate LED indicators for indicating which 802.3af/at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.

    The Tycon Power TP-DCDC-2456GD-VHP has been qualified by Axis to be used with their Q60 series of PTZ cameras. The unit can be used with any 802.3af/at device as it will supply 35W to any 802.3af/at POE channel detected. If two channels are detected on the client then 70W power will be supplied.

    They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

    Tycon Power TP-DCDC-2456GD-VHP Features:

    • Qualified for Axis Q60 Series PTZ Cameras
    • Input Voltage 18-36VDC; Output 2 Channel 56VDC 802.3at
    • Integrated POE Inserter
    • High Power 70W (35W per Channel>
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires

    Dimensions: 125mm x 75mm x 38mm

    Weight: 255g
