Tycon Power TP-DCDC-2448G-HP 18-36VDC IN 56VDC OUT 50W

https://streakwave.com.au/web/image/product.template/1240/image_1920?unique=5066b5a

Product Code: TP-DCDC-2448G-HP

Barcode: 1PTP-DCDC-2448G-HP

140.25 incl. GST 140.25 AUD 140.25

121.61


    This combination does not exist.

    Add to Cart Buy Now

    Tycon Power
    Tycon Power

    Tycon Power Systems designs and manufactures turnkey remote power systems utilizing solar and wind power and accessories including a variety of unique PoE and power conversion products. Tycon Power® products include; industrial strength outdoor PoE switches, midspan power inserters, PoE surge protection, DC to DC converters, and a large selection of accessories.


    Share this product:

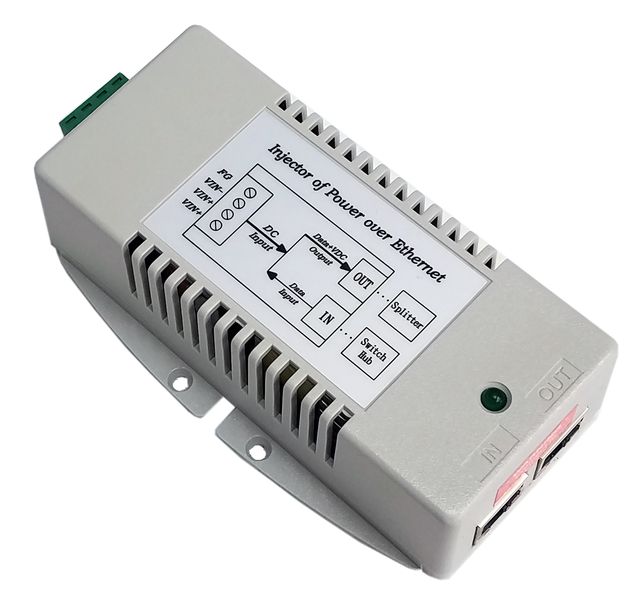

    Tycon Power TP-DCDC-2448G-HP 18-36VDC IN 56VDC OUT 50W


    The TP-DCDC-2448G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-48V battery system.


    The Tycon Power TP-DCDC-2448G-HP has an integrated Gigabit Passive PoE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 18VDC and 36VDC.


    They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. The Tycon Power TP-DCDC-2448G-HP work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).


    They have various protections for surge, short circuit and overload. The units have power output of 50W.


    Tycon Power TP-DCDC-2448G-HP Features:

    • Input Voltage +/- 18-36VDC; Output 56VDC Passive PoE
    • Integrated Gigabit PoE Inserter
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation 60°C

    Dimensions: 85mm x 76mm x 36mm

    Weight: 134g
