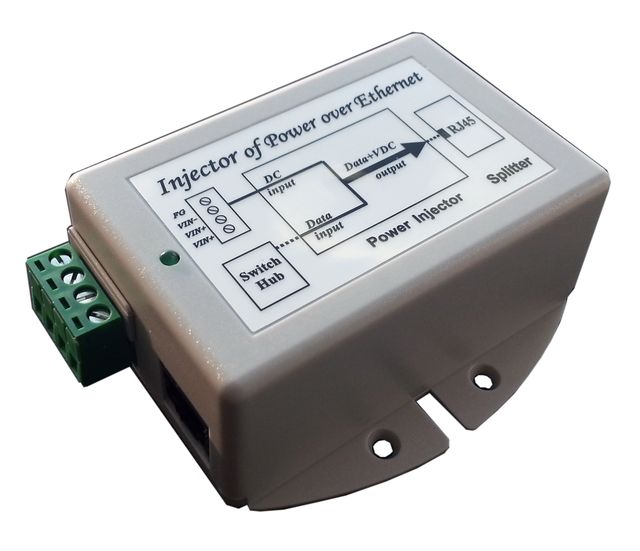

Tycon Power TP-DCDC-1224 9-36VDC IN 24VDC OUT, 19W DC to DC Converter

Product Code: TP-DCDC-1224

Barcode: 1PTP-DCDC-1224

73.15 incl. GST 73.15 AUD 73.15

66.50


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    Tycon Power TP-DCDC-1224 9-36VDC IN 24VDC OUT, 19W DC to DC Converter


    The TP-DCDC-1224 DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 12 or 24V battery system.


    The Tycon Power TP-DCDC-1224 has an integrated POE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.

    They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. The Tycon Power TP-DCDC-1224 works by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).


    The Tycon Power TP-DCDC-1224 has various protections for surge, short circuit and overload. The units have power output of 19W.


    Tycon Power TP-DCDC-1224 Features:

    • Input Voltage 9-36VDC; Output 24VDC
    • Integrated PoE Inserter
    • High Power 19W
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires


    Dimensions: 85mm x 76mm x 36mm

    Weight: 134g
