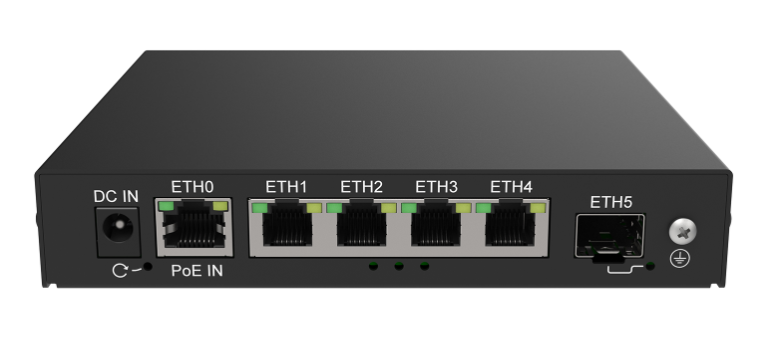

Tachyon Networks TNS-100 4 x 2.5G POE 1 x SFP+ POE In/Out

https://citytechnology.com.au/web/image/product.template/20480/image_1920?unique=1fcd848

Product Code: TNS-100

$ 554.40 incl. GST 554.4 AUD $ 554.40

$ 480.00

    This combination does not exist.

    Add to Cart Buy Now
    Tachyon Networks
    Tachyon Networks

    Affordable 60 GHz PTP & PTMP Fixed Wireless and Connectivity Solutions. Get fiber-like speeds using the virtually noise-free 60 GHz band, installed in minutes.

    Share this product:

        Tachyon Networks TNS-100 4 x 2.5G POE 1 x SFP+ POE In/Out

        Tachyon Networks TNS-100 2.5G PoE Switch

        The Tachyon Networks TNS-100 2.5Gbps industrial PoE switch is the perfect compliment to the Tachyon Networks TNA-30x family of radios, featuring 1x 2.5Gbps multigigabit ports with PoE input and 4x with PoE output along with a 10Gbps SFP+ cage. Additionally, the Tachyon Networks TNS-100 is also designed for harsh environments, supporting a temperature range of -30ºC to 60ºC, allowing it to be utilized in many industrial use-cases where high bandwidth and reliability are key. The Tachyon Networks TNS-100 switch also is VLAN aware and supports both VLAN access and trunk ports for enhanced flexibility in demanding applications.

        The Tachyon Networks TNS-100 is an industrial temperature rated, VLAN-aware, Layer 2 data and power distribution switch. The TNS-100 features an included mounting adapter for applications requiring DIN rail installation.

        The Tachyon Networks TNS-100 has a total of 6 ports:

        4 x 2.5Gbps NBASE-T ports with software controlled PoE out (max of .8A per port)
        1 x 2.5Gbps NBASE-T port with PoE-in (max of 1A)
        1 x 10Gbps SFP+ port.

        The PoE in port can be used for powering the device as well as powering devices on the PoE out ports, and for applications requiring more than 1A of power, there is a DC barrel jack that can be used with an optional power adapter to supply up to 4A of power.

        Management of the Tachyon Networks TNS-100 is provided via a web interface, SNMP, or RESTful API to give very flexible options for different applications.

        Management VLANs are supported as well as access and VLAN trunking.  Other features include port isolation and remote PoE power reset.
