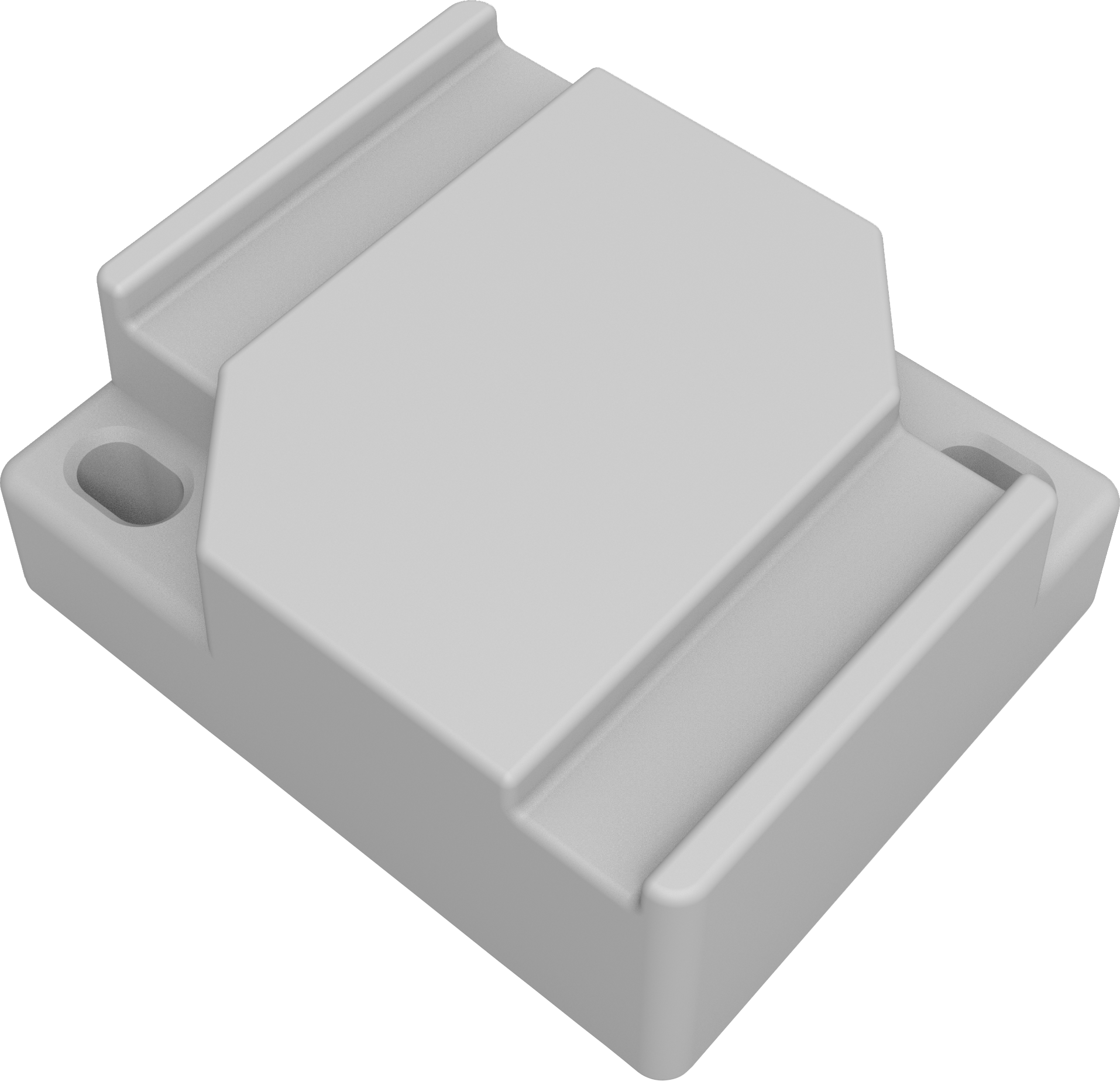

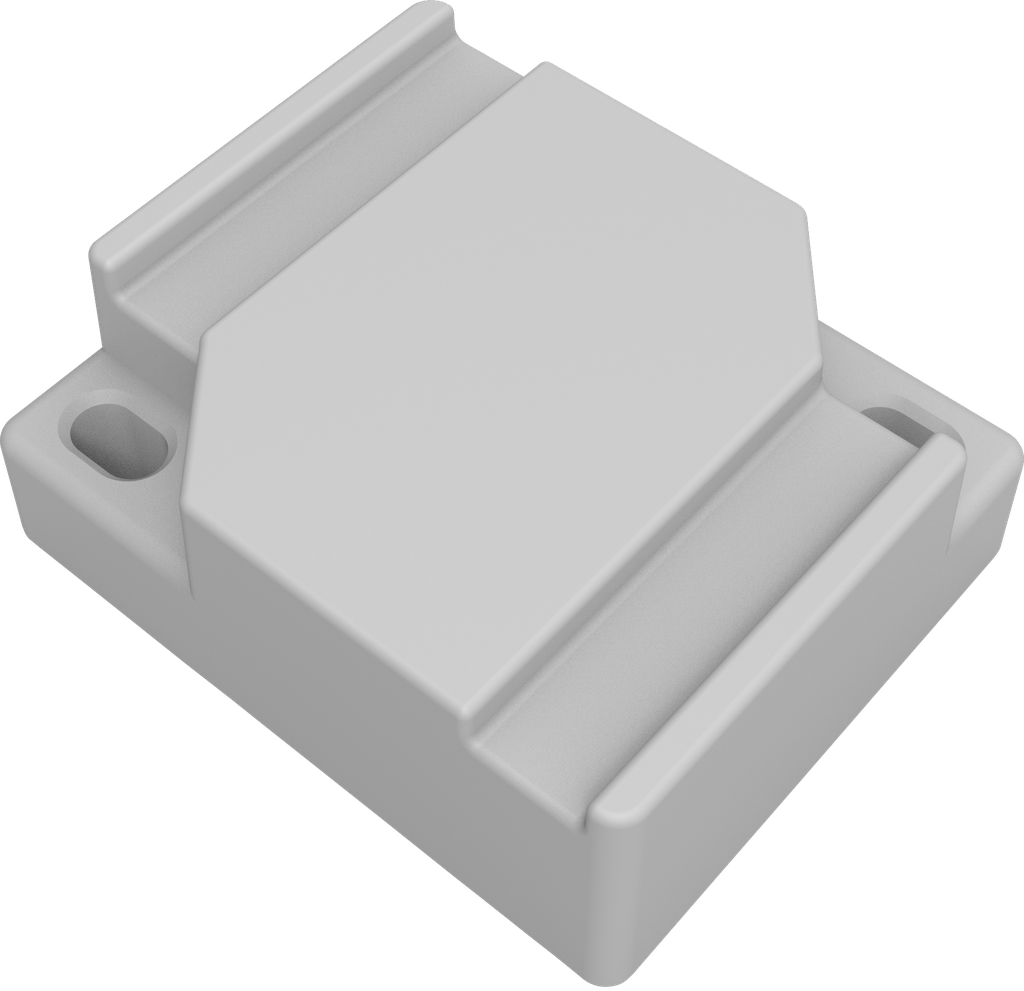

MikroTik TG-BT5-OUT Outdoor Heavy-Duty Bluetooth 5.2 Sensor Tag
The TG-BT5-OUT is a sealed heavy-duty Bluetooth Low Energy tag for industrial asset tracking, telemetry and condition monitoring. Its IP69K enclosure, temperature sensor and accelerometer suit equipment, construction, cold-chain and demanding outdoor deployments.
Heavy-duty outdoor telemetry: sealed IP69K construction, temperature sensing, acceleration and tilt events, long battery life, and flexible BLE packet formats.
Key features
- Bluetooth 5.2 with MikroTik telemetry, iBeacon and Eddystone packet formats.
- IP69K sealed enclosure for dust, high-pressure spray and demanding outdoor or industrial environments.
- Built-in accelerometer for movement, tilt and free-fall events.
- Built-in temperature sensing with ±0.5 °C typical accuracy.
- NFC-encoded serial number, condition monitoring and logging, plus optional AES encryption.
- 550 mAh battery with an estimated 5–15 year life depending on update interval and configuration.
- Designed for MikroTik KNOT and other compatible Bluetooth IoT gateways.
Ideal applications
- Heavy equipment and construction-site asset tracking.
- Cold-chain and industrial condition monitoring.
- Outdoor equipment, materials, containers and telemetry deployments.
Technical specifications
- Product code: TG-BT5-OUT.
- Bluetooth: Version 5.2; 1.5 dBi antenna gain; 360° beam width.
- Sensors: Accelerometer and temperature sensor.
- Storage: 512 KB flash.
- Battery: 550 mAh; estimated 5–15 years depending on update interval.
- Dimensions: 38 × 32 × 16 mm.
- Weight: 27 g.
- Mounting: Strapping or M3 screw mounting.
- Operating temperature: -20 to 85 °C.
- Protection: IP69K.
- MTBF: Approximately 100,000 hours at 25 °C.
- Certifications: CE, FCC, IC, EAC and RoHS.
- Supported packet formats: MikroTik proprietary telemetry, Eddystone TLM and iBeacon.
Download the MikroTik TG-BT5 brochure
Why choose TG-BT5-OUT?
The TG-BT5-OUT combines low-power Bluetooth telemetry with practical mounting and sensor capabilities, helping organisations monitor assets and events without adding wired power or complex endpoint infrastructure.
