MikroTik RBwsAP-5Hac2nD MikroTik wsAP ac lite In-wall Dual Concurrent 2.4GHz / 5GHz 3 port


Product Code: RBwsAP-5Hac2nD

Barcode: 4752224005052

114.40 incl. GST 114.4 AUD 114.40


    This combination does not exist.

    Add to Cart Buy Now


    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.

    Share this product:

    MikroTik RBwsAP-5Hac2nD MikroTik wsAP ac lite In-wall Dual Concurrent 2.4GHz / 5GHz 3 port

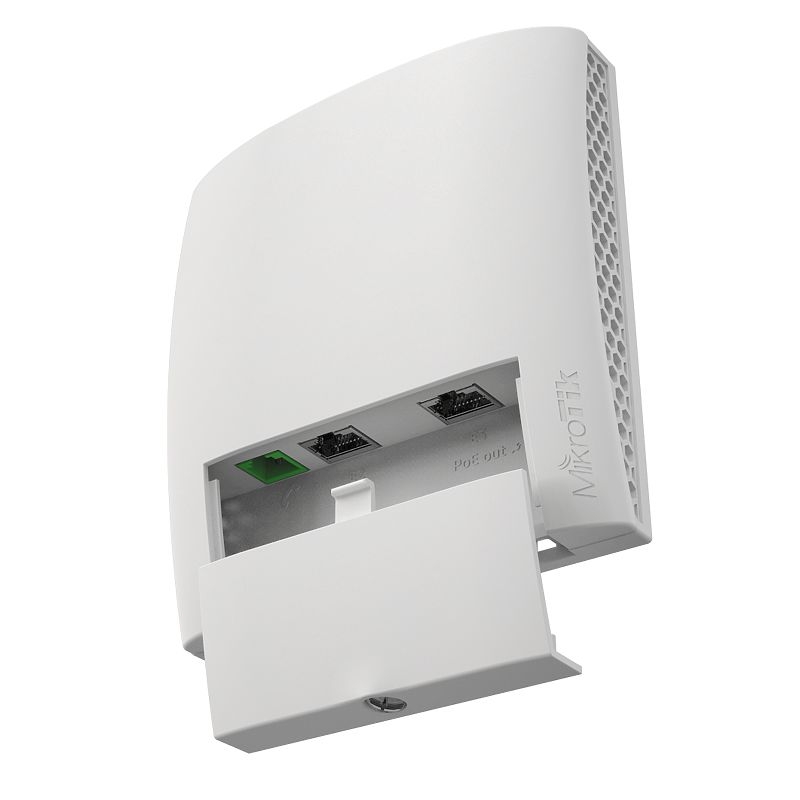

    The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

    The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

    The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.
    We have two versions available.

    - wsAP ac lite-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - wsAP ac lite (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    Product code: RBwsAP-5Hac2nD
    Architecture: MIPSBE
    CPU: QCA9531
    CPU core count: 1
    CPU nominal frequency: 650 MHz
    Dimensions: 112 x 126 x 30 mm
    RouterOS licence: 4
    Operating System: RouterOS
    Size of RAM: 64 MB
    Storage size: 16 MB
    Storage type: FLASH
    MTBF: Approximately 100'000 hours at 25C
    Tested ambient temperature: -40°C to 60°C

    Wireless capabilities:
    Wireless 2.4 GHz Max data rate: 300 Mbit/s
    Wireless 2.4 GHz number of chains: 2
    Wireless 2.4 GHz standards: 802.11b/g/n
    Antenna gain dBi for 2.4 GHz: 1.5
    Wireless 2.4 GHz chip model: QCA9531
    Wireless 2.4 GHz generation: Wi-Fi 4
    Wireless 5 GHz Max data rate: 433 Mbit/s
    Wireless 5 GHz number of chains: 1
    Wireless 5 GHz standards: 802.11a/n/ac
    Antenna gain dBi for 5 GHz: 3
    Wireless 5 GHz chip model: QCA-9887
    Wireless 5 GHz generation: Wi-Fi 5
    AC speed: AC750

    10/100 Ethernet ports: 3

    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 0.5

    Number of DC inputs: 1 (PoE-IN)
    Max power consumption: 20 W
    Max power consumption without attachments: 6 W
    Cooling type: Passive
    PoE in: 802.3af/at
    PoE in input Voltage: 18-57 V

    PoE-out ports: Ether3
    PoE out: Passive PoE
    Max out per port output (input 18-30 V): 420 mA
    Max out per port output (input 30-57 V): 420 mA
    Max total out (A): 420 mA

    Certification & Approvals:
    Certification: CE, FCC, IC, EAC, ROHS
    IP: IP20

    Mode button: Yes

    Wireless specifications:
    2.4 GHz           Transmit (dBm)  Receive Sensitivity
    1MBit/s                 22                     -96
    11MBit/s         22                     -89
    6MBit/s                 20                     -93
    54MBit/s         18                     -74
    MCS0                 20                     -93
    MCS7                 16                     -71

    5 GHz            Transmit (dBm)   Receive Sensitivity
    6MBit/s                 23                      -93
    54MBit/s         20                      -75
    MCS0                 23                      -93
    MCS7                 19                      -71
    MCS9                 16                      -63
