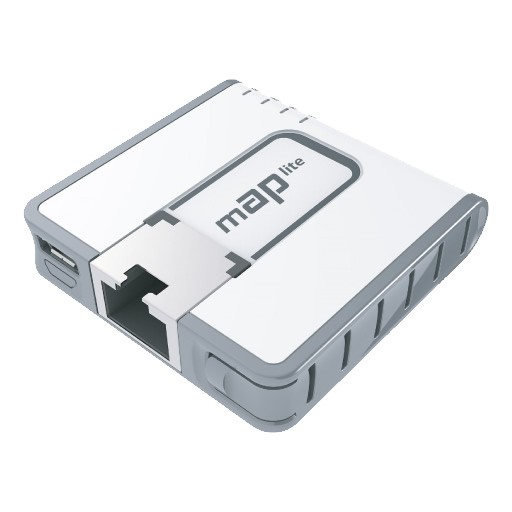

MikroTik 2.4GHz mAP lite AP 802.11bgn 2x2 (NO PSU)
The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Specifications:
Product code: RBmAPL-2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 48 x 49 x 11mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -30°C to 70°C
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9533
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet:
10/100 Ethernet ports: 1
Powering:
MicroUSB input Voltage: 5-5 V
Number of DC inputs: 2 (PoE-IN, MicroUSB)
Max power consumption: 3.5 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 10-60 V
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
