MiktoTik RBD52G-5HacD2HnD-TC Mikrotik hAP ac² ac2
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:

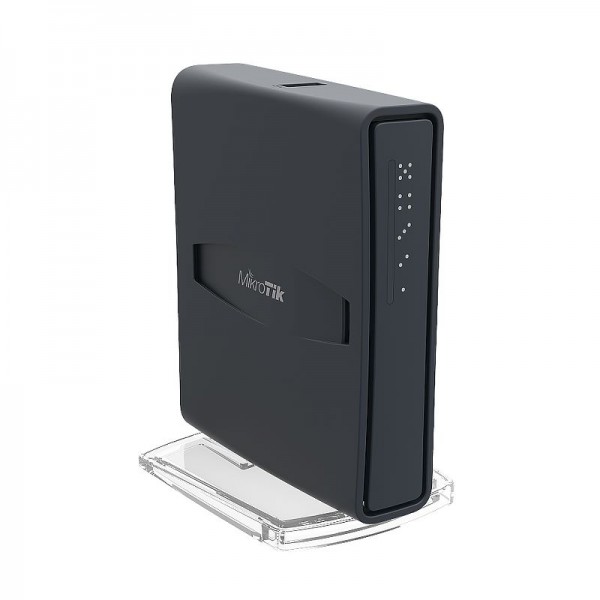

MikroTik RBD52G-5HacD2HnD-TC Mikrotik hAP ac²
The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.
New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available.
- hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications:
Product code: RBD52G-5HacD2HnD-TC
Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 34 x 119 x 98mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 50°C
IPsec hardware acceleration: Yes
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018
Wireless 5 GHz generation: Wi-Fi 5
AC speed: AC1200
Ethernet:
10/100/1000 Ethernet ports: 5
Peripherals:
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-30 V
Max power consumption: 21 W
Max power consumption without attachments: 16 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Other:
Mode button: Yes
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -100
11MBit/s 27 -94
6MBit/s 27 -96
54MBit/s 24 -78
MCS0 27 -96
MCS7 23 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70
