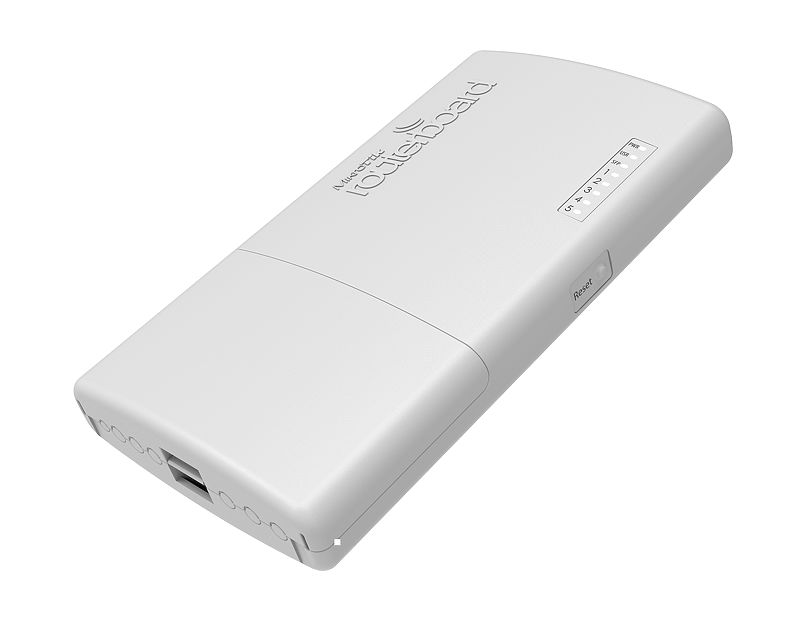

Mikrotik RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor
The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about. It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Specifications:
Product code: RB960PGS-PB
Architecture: MIPSBE
CPU: QCA9557
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 125 x 52 x 225 mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 54 W
Max power consumption without attachments: 6 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-57 V
PoE-out:
PoE-out ports: Ether2-Ether5
PoE out: 802.3af/at
Max out per port output (input 18-30 V): 1 A
Max out per port output (input 30-57 V): 450 mA
Max total out (A): 2 A
Ethernet:
10/100/1000 Ethernet ports: 5
Fibre:
SFP ports: 1
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
