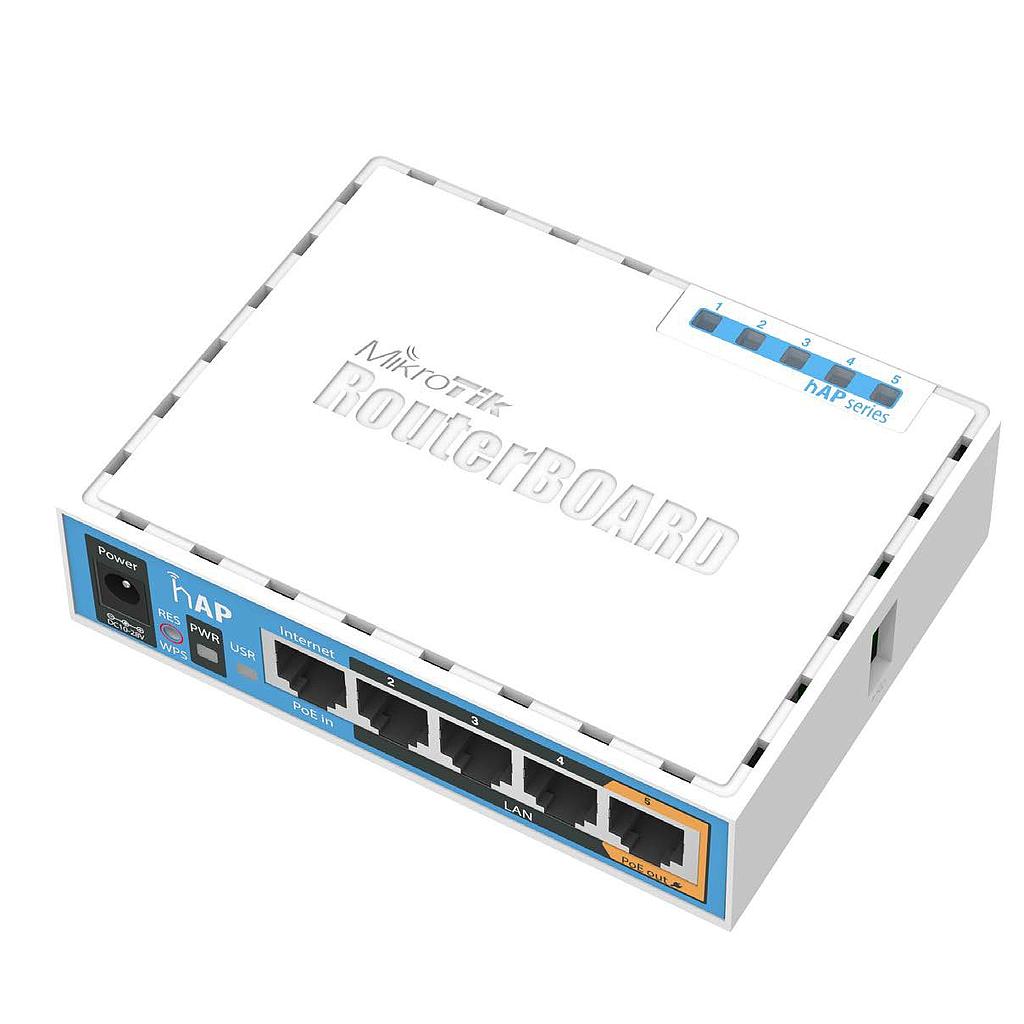

Mikrotik RB951Ui-2nD hAP 650MHz CPU 64MB RAM 5xLAN built-in 2.4Ghz 802.11b/g/n
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik RB951Ui-2nD hAP 650MHz CPU 64MB RAM 5xLAN built-in 2.4Ghz 802.11b/g/n
This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
Specifications:
Product code: RB951Ui-2HnD
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: 113 x 138 x 29mm
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -20C +60C
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9344
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet:
10/100 Ethernet ports: 5
Peripherals:
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Powering:
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max power consumption 24 W
Max power consumption without attachments 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE-out:
PoE-out ports: Ether5
PoE out: Passive PoE
Max out per port output (input 18-30 V): 500 mA
Max total out (A): 500 mA
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 2 -80
MCS0 30 -96
MCS7 23 -78
