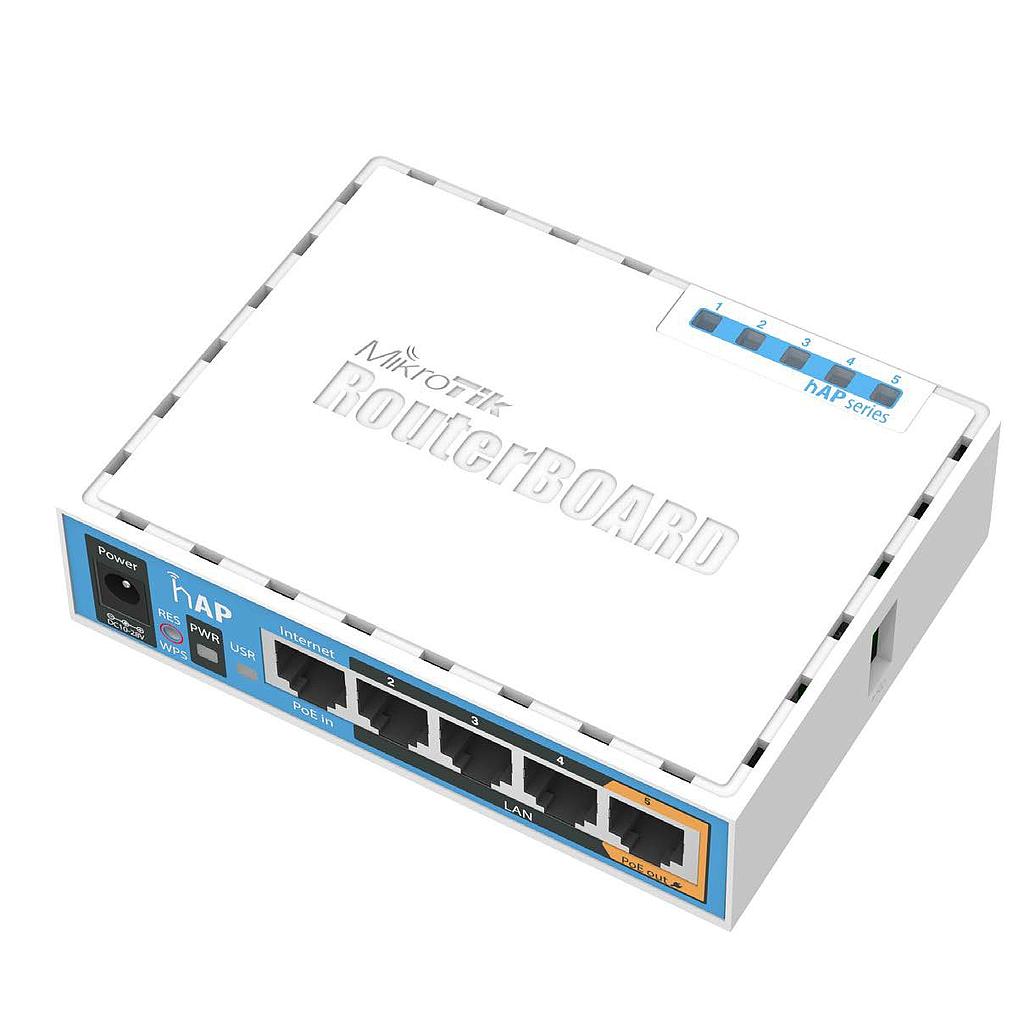

Mikrotik RB951Ui-2nD hAP 650MHz CPU 64MB RAM 5xLAN built-in 2.4Ghz 802.11b/g/n

Product Code: RB951Ui-2nD

70.95 incl. GST 70.95 AUD 70.95

64.27


    This combination does not exist.

    Add to Cart Buy Now


    Share this product:

    The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

    It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

    Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.


    Specifications

    Details
    Product codeRB951Ui-2HnD
    ArchitectureMIPSBE
    CPUAR9344
    CPU core count1
    CPU nominal frequency600 MHz
    Dimensions113x138x29mm
    RouterOS license4
    Operating SystemRouterOS
    Size of RAM128 MB
    Storage size128 MB
    Storage typeNAND
    MTBFApproximately 100'000 hours at 25C
    Tested ambient temperature-20C +60C

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate300 Mbit/s
    Wireless 2.4 GHz number of chains2
    Wireless 2.4 GHz standards802.11b/g/n
    Antenna gain dBi for 2.4 GHz2.5
    Wireless 2.4 GHz chip modelAR9344
    Wireless 2.4 GHz generationWi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports5

    Peripherals

    Details
    Number of USB ports1
    USB Power ResetYes
    USB slot typeUSB type A
    Max USB current (A)1

    Powering

    Details
    Number of DC inputs2 (PoE-IN, DC jack)
    DC jack input Voltage8-30 V
    Max power consumption24 W
    Max power consumption without attachments7 W
    FAN countPassive
    PoE inPassive PoE
    PoE in input Voltage8-30 V

    PoE-out

    Details
    PoE-out portsEther5
    PoE outPassive PoE
    Max out per port output (input 18-30 V)500 mA
    Max total out (A)500 mA

    Certification & Approvals

    Details
    CertificationCE, FCC, IC, EAC, ROHS

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s30-96
    54MBit/s25-80
    MCS030-96
    MCS723-78

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
