Mikrotik RB951Ui-2HnD 600MHz 128MB 5x LAN PoE Port 5 L4

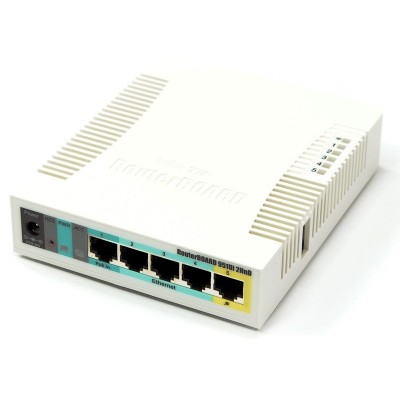

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Specifications:
Product code: RB951Ui-2HnD
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: 113 x 138 x 29mm
Licence level: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -20C +50C
Powering:
PoE in: Passive PoE
PoE in input Voltage: 9-30 V
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 9-30 V
Max power consumption: 6.5 W
PoE-out:
PoE-out ports: Ether5
PoE out: Passive PoE
Max out per port output (input < 30 V): 500 mA
Max total out (A): 500 mA
Wireless:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9344
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet:
10/100 Ethernet ports: 5
Peripherals:
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Certification & Approvals:
Certification: CE/RED, FCC, IC, EAC, ROHS
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
