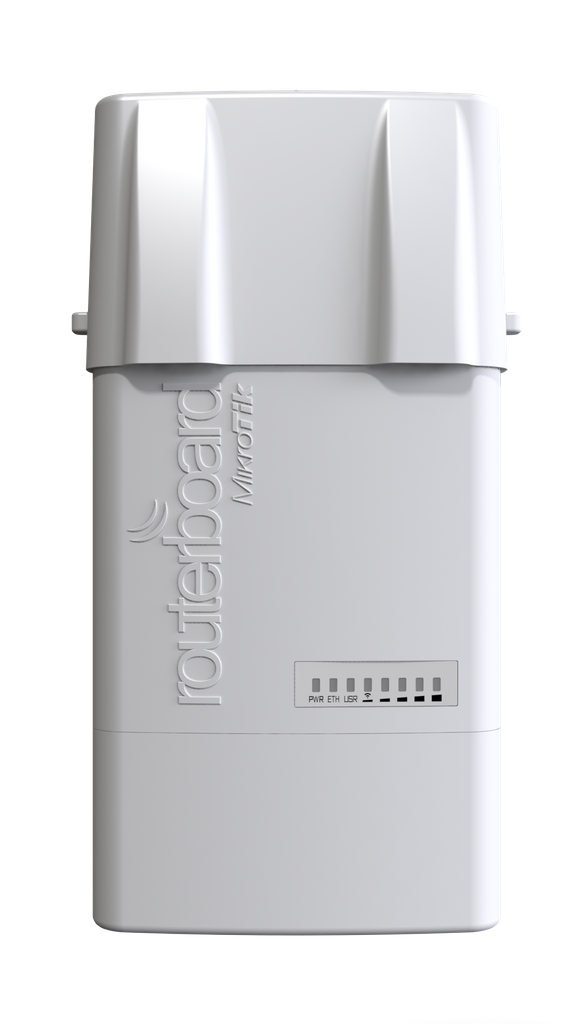

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
|CPU core count||1|
|CPU nominal frequency||600 MHz|
|Size of RAM||64 MB|
|Storage size||128 MB|
|MTBF||Approximately 100'000 hours at 25C|
|Tested ambient temperature||-40°C to 70°C|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||12 W|
|PoE in||Passive PoE|
|PoE in input Voltage||8-30 V|
|Wireless 5 GHz Max data rate||300 Mbit/s|
|Wireless 5 GHz number of chains||2|
|Wireless 5 GHz standards||802.11a/n|
|Wireless 5 GHz chip model||AR9342|
|Wireless 5 GHz generation||Wi-Fi 4|
|10/100/1000 Ethernet ports||1|
|Number of SIM slots||1 Modem (Mini SIM)|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
|PCB temperature monitor||Yes|
Certification & Approvals
|Certification||CE, FCC, IC, EAC, ROHS|
|5 GHz||Transmit (dBm)||Receive Sensitivity|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
