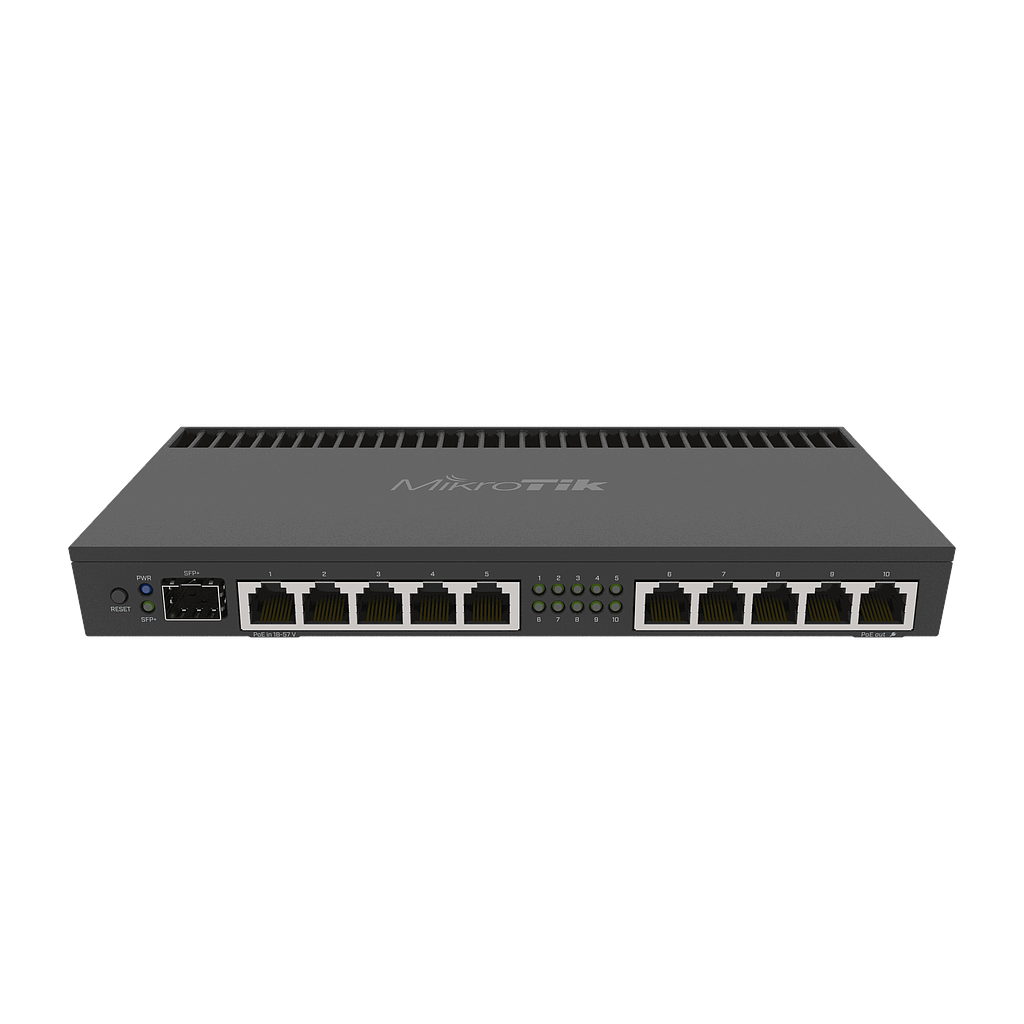

Mikrotik RB4011iGS+RM 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 1U rackmount case
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik RB4011iGS+RM 4x 1,4 GHz, 10x Gigabit LAN SFP+ L5 1U rackmount case
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.
Note: Passive DAC (MikroTik S+DA0001/S+DA0003) are not supported.
Specifications:
Product code: RB4011iGS+RM
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1400 MHz
Dimensions: 228 x 120 x 30 mm
RouterOS licence: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 33 W
Max power consumption without attachments: 18 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-57 V
PoE-out:
PoE-out ports: Ether10
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 600 mA
Max out per port output (input 30-57 V): 420 mA
Max total out (A): 600 mA
Ethernet:
10/100/1000 Ethernet ports: 10
Fibre:
SFP+ ports: 1
Peripherals:
Serial console port: RJ45
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP20
