Mikrotik RB2011UiAS-2HnD-IN Athero CPU 128MB RAM, 1xSFP 5 Giga, built-in 2.4Ghz OS L5 PSU LCD

Product Code: RB2011UiAS-2HnD-IN

Barcode: 4752224000323

204.60 incl. GST 204.6 AUD 204.60

186.00


    This combination does not exist.

    Add to Cart Buy Now

    MikroTik
    MikroTik

    MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.


    Share this product:

    Mikrotik RB2011UiAS-2HnD-IN Athero CPU 128MB RAM, 1xSFP 5 Giga, built-in 2.4Ghz OS L5 PSU LCD



    RB2011UiAS-2HnD-IN 2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM.

    The Mikrotik RB2011UiAS-2HnD-IN is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    RouterBOARD Mikrotik RB2011UiAS-2HnD-IN has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!

    Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

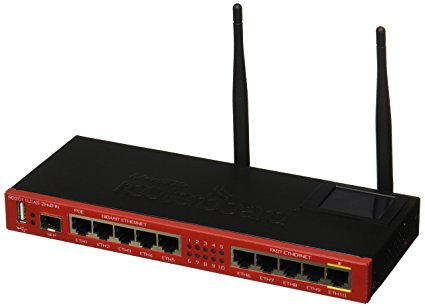

    RouterBOARD Mikrotik RB2011UiAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.

    Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

    The Mikrotik RB2011UiAS-2HnD-IN also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable.


    Specifications:
    Product code: RB2011UiAS-2HnD-IN
    Architecture: MIPSBE
    CPU: AR9344
    CPU core count: 1
    CPU nominal frequency: 600 MHz
    Dimensions: 214mm x 86mm for PCB
    Licence level: 5
    Operating System: RouterOS
    Size of RAM: 128 MB
    Storage size: 128 MB
    Storage type: NAND
    Tested ambient temperature: -35C to +65C

    Powering:
    Max Power consumption: 11W
    PoE in: Passive PoE
    PoE out: Passive PoE
    PoE in input Voltage: 8-30 V
    Number of DC inputs: 2 (DC jack, PoE-IN)
    DC jack input Voltage: 8-30 V

    Wireless:
    Wireless 2.4 GHz number of chains: 2
    Wireless 2.4 GHz standards: 802.11b/g/n
    Antenna gain dBi for 2.4 GHz: 4
    Wireless 2.4 GHz chip model: AR9344

    Ethernet:
    10/100 Ethernet ports: 5
    10/100/1000 Ethernet ports: 5

    Fibre:
    SFP DDMI: Yes
    SFP ports: 1

    Peripherals:
    Serial port: RJ45
    Number of USB ports: 1
    USB Power Reset: Yes
    USB slot type: USB type A
    Max USB current (A): 1

    Other:
    PCB temperature monitor: Yes
    Voltage Monitor: Yes

    Wireless specifications:
    2.4 GHz  Transmit (dBm)  Receive Sensitivity
    1MBit/s  30                          -96
    11MBit/s 28                         -80
    6MBit/s  30                          -96
    54MBit/s 27                         -80
    MCS0     30                          -92
    MCS7     25                          -73
