Mikrotik RB1100x4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:

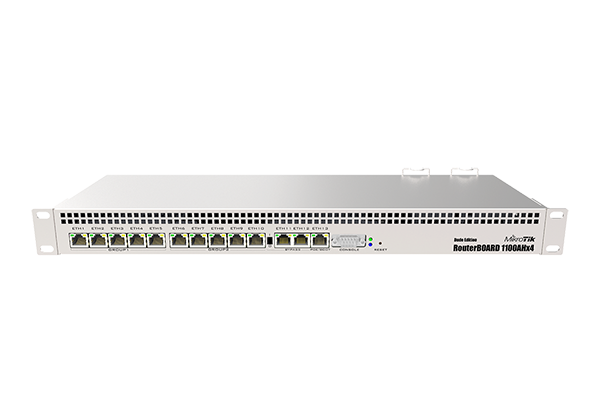

Mikrotik RB1100x4 Power PC 1.4Ghz CPU quad-core, 1GB RAM, 13xGbit LAN, L6
Introducing RB1100x4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Specifications:
Product code: RB1100x4
Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Dimensions: 443 x 148 x 44 mm
RouterOS licence: 6
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Powering:
Number of AC inputs: 2
AC input range: 100-240
Number of DC inputsL: 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage: -48, 12-57 V
Max power consumption: 20 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 20-57 V
Ethernet:
10/100/1000 Ethernet ports: 13
Peripherals:
Memory card type: microSD
Memory Cards: 1
Serial console port: RS232
Other:
Current Monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Beeper: Yes
Certification & Approvals:
Certification: CE, EAC, ROHS
IP: IP20
