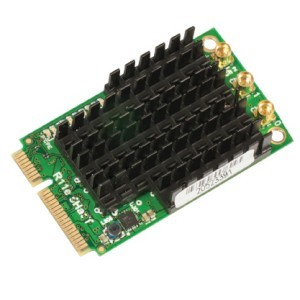

Mikrotik R11e-5HacT 802.11a/c High Power miniPCI-e card with MMCX connectors
MikroTik
MikroTik provides hardware and software for Internet connectivity. Our experience in using industry standard PC hardware and complete routing systems allowed us in 1997 to create the RouterOS software system that provides extensive stability, controls, and flexibility for all kinds of data interfaces and routing.
Share this product:
Mikrotik R11e-5HacT 802.11a/c High Power miniPCI-e card with MMCX connectors
The new AC standard is here, with up to 1.3Gbps datarate and 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.
R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc.
The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.
Product specifications:
Product code: R11e-5HacT
5GHz: yes
Antenna header count :3
Bands: 4920-6100 MHz
Can be used indoors: Yes
Can be used outdoors: Yes
Certification: FCC, IC
Chipset: QCA9880
Connector: 3x MMCX
Data Rate: 1.3Gbps
Format: miniPCI-e
IP: IP00
Max power consumption: 5 W
Output power: 28dBm
RouterOS compatibility: Yes
Storage size: 4 KB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Wi-Fi generation: Wi-Fi 5
Wireless 5 GHz Max data rate: 1300 Mbit/s
Wireless 5 GHz chip model: QCA9880
Wireless 5 GHz generation: Wi-Fi 5
Wireless 5 GHz number of chains: 3
Wireless 5 GHz standards: 802.11a/n/ac
Wireless standard: 802.11a/n/ac
Wireless specifications:
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 28 -81
MCS0 28 -96
MCS7 27 -77
MCS9 24 -72
